Frecheirinha, Ceará, Brazil presents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -3.7304, -40.8237, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output data for Frecheirinha shows strong and consistent performance across all seasons. Spring emerges as the most productive season, generating 6.82 kWh per day per kW of installed solar capacity. Winter follows closely with 6.17 kWh/day per kW, while autumn produces 5.73 kWh/day per kW, and summer generates 5.61 kWh/day per kW. This seasonal pattern is particularly favorable for solar installations, as the variation between the lowest and highest producing seasons is relatively modest - only about 22% difference between summer and spring output. The consistently high production levels throughout the year make this location highly suitable for solar PV systems.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 4 degrees North. This shallow angle reflects the location's proximity to the equator and helps optimize solar collection across all seasons.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Frecheirinha and require careful consideration during installation:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create water accumulation issues
• High humidity levels - May cause corrosion of electrical components and reduce panel efficiency
• Dust and debris accumulation - Particularly during dry periods, can significantly reduce panel performance
• Salt air exposure - Being in coastal Brazil, salt corrosion may affect metal components

Preventative Measures for Optimal Performance

To address these challenges and ensure maximum energy production, several installation strategies should be implemented: Water Management: Install panels with adequate drainage systems and slight tilting to prevent water pooling. Use waterproof electrical enclosures and ensure all connections are properly sealed against moisture ingress. Corrosion Protection: Select marine-grade or tropical-rated equipment specifically designed for high-humidity environments. Use stainless steel or aluminum mounting systems with appropriate protective coatings to resist both humidity and potential salt air exposure. Maintenance Accessibility: Design the installation with easy access for regular cleaning, as dust and debris removal will be crucial for maintaining optimal performance. Consider automated cleaning systems for larger installations. Component Selection: Choose solar panels and inverters rated for tropical conditions with appropriate temperature coefficients and humidity resistance ratings. Ensure adequate ventilation around electrical components to prevent overheating in the humid climate. Despite these considerations, Frecheirinha's consistent solar resource and favorable seasonal production pattern make it an excellent location for solar PV installations when proper environmental precautions are taken during design and installation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

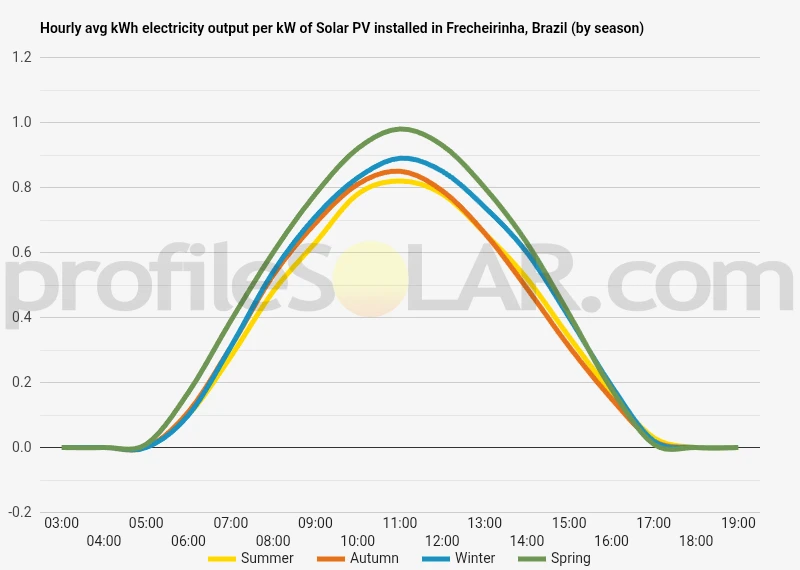

Solar output per kW of installed solar PV by season in Frecheirinha

Seasonal solar PV output for Latitude: -3.7304, Longitude: -40.8237 (Frecheirinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Frecheirinha, Brazil

To maximize your solar PV system's energy output in Frecheirinha, Brazil (Lat/Long -3.7304, -40.8237) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Frecheirinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Frecheirinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Frecheirinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Frecheirinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Frecheirinha, Brazil

Topography and Terrain

Frecheirinha is located in the northeastern state of Ceará, Brazil, positioned within the semi-arid region known as the Caatinga. The topography around this municipality is characterized by relatively flat to gently rolling terrain, with elevations typically ranging from 100 to 300 meters above sea level. The landscape is dominated by low hills, shallow valleys, and expansive plateaus that create a moderately undulating surface across the region. The area sits within the broader context of the Brazilian Highlands' northern extension, where ancient crystalline rock formations have been weathered over millions of years to create a landscape of modest relief. Small mountain ranges and isolated hills, known locally as "serras," punctuate the otherwise gentle topography. These elevated features rarely exceed 600 meters in height and are separated by wide, flat valleys and plains.

Climate and Vegetation Influence on Terrain

The semi-arid climate has significantly shaped the local topography through weathering processes. The landscape features typical Caatinga vegetation, which consists of drought-resistant shrubs, cacti, and small trees that adapt to the region's dry conditions. This sparse vegetation cover means that much of the terrain remains relatively open, with minimal tree canopy that could obstruct solar installations. Seasonal rainfall patterns have created a network of intermittent streams and dry riverbeds called "riachos" that cut through the landscape. During dry periods, these areas become flat, sandy corridors, while the wet season can temporarily transform them into flowing waterways. The overall terrain stability is generally good due to the underlying crystalline bedrock foundation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Frecheirinha would be the extensive flat to gently sloping plateaus and valley floors that characterize much of the surrounding region. These areas offer several advantages including minimal grading requirements, stable geological foundations, and excellent accessibility for construction and maintenance activities. The broad plains extending to the east and southeast of Frecheirinha present particularly favorable conditions. These areas feature consistent gentle slopes that facilitate natural drainage while maintaining optimal angles for solar panel orientation. The terrain in these zones is largely free from significant rock outcroppings or steep gradients that would complicate installation procedures. Valley floors between the low hill ranges also provide excellent opportunities for solar development. These locations typically offer large contiguous areas of relatively flat land with good soil stability and minimal vegetation clearing requirements. The natural drainage patterns in these valleys help prevent water accumulation that could affect solar infrastructure. Areas to the north and northwest generally present good conditions as well, though some zones may require more careful site selection due to slightly more varied topography. The key consideration in these areas is identifying sufficiently large flat or gently sloping sections that can accommodate extensive solar arrays while avoiding the steeper slopes of the scattered hill formations. The region's overall lack of dense forest cover and the predominance of low shrubland vegetation means that most potential solar sites would require minimal land clearing. This factor, combined with the generally stable terrain and good accessibility via existing rural road networks, makes the Frecheirinha area well-suited for large-scale solar energy development across multiple potential sites.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
