Garopaba, Santa Catarina, Brazil presents a reasonably good location for year-round solar photovoltaic energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.59 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.43 kWh per day per kW, while autumn drops to 4.50 kWh per day per kW. Winter represents the least productive period, generating only 3.32 kWh per day per kW of installed capacity. For maximum year-round energy production from a fixed panel installation at Garopaba, Santa Catarina, solar panels should be tilted at 25 degrees facing North. This angle optimizes total annual output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this coastal Brazilian location:

• High humidity and salt air from the nearby Atlantic Ocean can cause corrosion of metal components and reduce panel efficiency over time
• Frequent coastal storms and strong winds may damage installations or cause debris accumulation on panels
• Heavy rainfall during certain periods can temporarily reduce solar output and may cause water damage if systems aren't properly sealed
• Sand and salt deposits from ocean winds can accumulate on panel surfaces, reducing light transmission

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation. Using marine-grade aluminum frames and stainless steel mounting hardware will resist corrosion from salt air exposure. Installing panels with adequate drainage and proper sealing prevents water damage during heavy rains. Regular cleaning schedules become essential in this coastal environment to remove salt and sand buildup that can significantly reduce panel efficiency. Choosing panels with anti-reflective coatings designed for high-humidity environments will maintain better performance over time. Robust mounting systems designed to withstand high winds are crucial, as coastal storms can generate powerful gusts that may damage improperly secured installations. Additionally, installing surge protection devices helps protect the system from electrical damage during thunderstorms common in this subtropical region.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

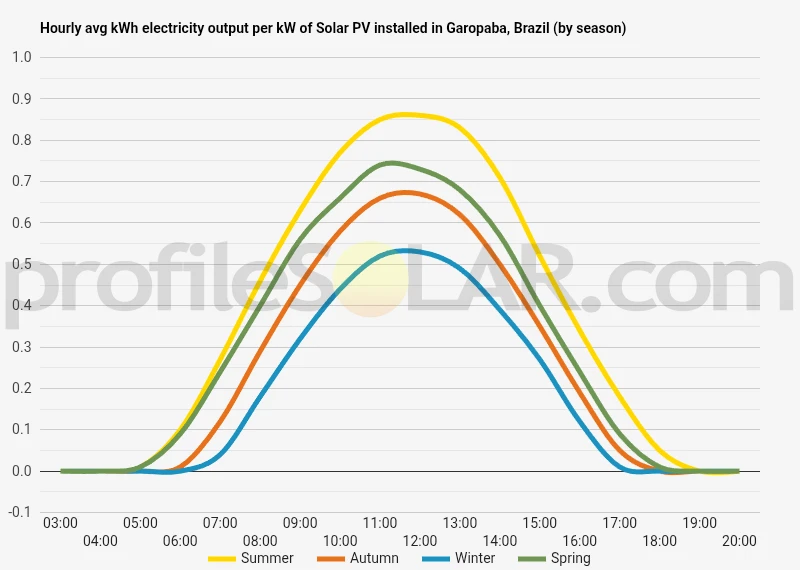

Solar output per kW of installed solar PV by season in Garopaba

Seasonal solar PV output for Latitude: -28.0422, Longitude: -48.6498 (Garopaba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Garopaba, Brazil

To maximize your solar PV system's energy output in Garopaba, Brazil (Lat/Long -28.0422, -48.6498) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Garopaba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Garopaba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Garopaba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Garopaba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Garopaba, Brazil

Topographical Features of Garopaba

Garopaba sits along Brazil's southern Atlantic coast in Santa Catarina state, positioned where rolling coastal hills meet the ocean. The immediate landscape features a dramatic transition from sea level to elevated terrain within a relatively short distance inland. The coastal zone consists of sandy beaches backed by low dunes and wetland areas, while moving westward the elevation rises steadily through a series of rounded hills and ridges. The terrain around Garopaba is characterized by the Serra Geral mountain range's eastern foothills, creating an undulating landscape of moderate slopes and valleys. These hills typically range from 100 to 400 meters in elevation, with some peaks reaching higher elevations further inland. The topography includes numerous small valleys carved by seasonal streams and rivers that flow eastward toward the Atlantic Ocean.

Coastal Plain Characteristics

The narrow coastal plain extends roughly 5 to 15 kilometers inland from the shoreline before giving way to more pronounced hillsides. This area features relatively flat to gently rolling terrain, interrupted by lagoons, marshlands, and small coastal rivers. The soil composition varies from sandy near the coast to more clay-rich deposits in the slightly elevated areas behind the immediate shoreline. Agricultural activities in the coastal plain focus primarily on small-scale farming and pastureland, with patches of Atlantic Forest remnants scattered throughout the region. The landscape shows evidence of historical land use changes, with former forested areas converted to agricultural purposes over many decades.

Inland Hill Country

Moving away from the coast, the topography becomes increasingly complex with a series of parallel ridges and valleys running roughly north-south. These hills represent the weathered remnants of ancient geological formations, creating a landscape of moderate relief with slopes that typically range from gentle to moderately steep. The inland areas support a mix of agricultural activities including cattle ranching, small crop cultivation, and reforestation projects. Natural vegetation consists of mixed grasslands and forest patches, with some areas showing signs of regenerating Atlantic Forest where agricultural activities have been reduced or abandoned.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Garopaba would be found in the gently rolling hills approximately 10 to 25 kilometers inland from the coast. These areas offer several advantages including relatively stable terrain with moderate slopes that can accommodate solar panel arrays without excessive grading or earthwork requirements. The elevated inland areas provide better drainage compared to the coastal plain, reducing concerns about seasonal flooding or waterlogging that could affect solar installations. These locations also tend to have fewer environmental constraints related to coastal ecosystems and wetland preservation requirements that might limit development options closer to the shore. Agricultural areas with existing cleared land and established road access present particularly attractive opportunities for solar development. The rolling topography in these inland zones allows for strategic placement of solar arrays on south-facing slopes to maximize exposure while using natural terrain features to minimize visual impact on the surrounding landscape. Areas with elevations between 150 and 300 meters above sea level offer an optimal balance between accessibility for construction and maintenance while providing sufficient elevation to avoid low-lying areas prone to fog or atmospheric moisture that could reduce solar panel efficiency. The existing agricultural road network in these inland areas would facilitate construction access and ongoing maintenance operations for large-scale solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
