Solar Energy Production in Gaspar, Santa Catarina, Brazil

Gaspar, Santa Catarina, Brazil, located in the Southern Sub Tropics at latitude -26.9219 and longitude -48.9796, offers reasonably good conditions for solar PV energy generation throughout the year, though with notable seasonal variations. The location experiences its highest solar energy production during summer, with an average of 6.11kWh per day for each kilowatt of installed solar capacity. This drops to 4.40kWh/day during autumn, reaches its lowest point in winter at 3.26kWh/day, and recovers to 4.49kWh/day in spring. For fixed panel installations in Gaspar, Santa Catarina, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This angle has been calculated by analyzing the optimal panel position relative to the sun's elevation throughout the year, weighted by the daily PV potential at this specific location.

Seasonal Considerations

Summer (December-February) is clearly the prime time for solar generation in Gaspar, Santa Catarina, producing nearly twice the electricity compared to winter months. This makes it an excellent period for energy surplus that could potentially offset the lower production during winter (June-August). The transitional seasons of autumn and spring offer similar moderate production levels, with spring slightly outperforming autumn. This seasonal pattern should be considered when planning for annual energy needs and potential battery storage requirements.

Environmental Factors and Preventative Measures

Gaspar's subtropical location presents several challenges for solar PV installations:

• High humidity and rainfall: The region experiences significant precipitation that can reduce panel efficiency through cloud cover and direct rainfall. Installing panels with good drainage and anti-soiling coatings can help mitigate these effects.
• Tropical storms: The area may experience severe weather events that could physically damage installations. Robust mounting systems rated for high wind conditions are recommended.
• Vegetation growth: The subtropical climate promotes rapid vegetation growth that could shade panels. Regular maintenance and strategic placement away from fast-growing trees are important considerations.
• Dust and pollen accumulation: Seasonal pollen and dust can reduce panel efficiency. Implementing automated cleaning systems or scheduling regular manual cleaning can help maintain optimal performance.

Despite these challenges, Gaspar still receives sufficient solar radiation throughout the year to make solar PV installations viable, particularly if these environmental factors are addressed during system design and maintenance planning.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

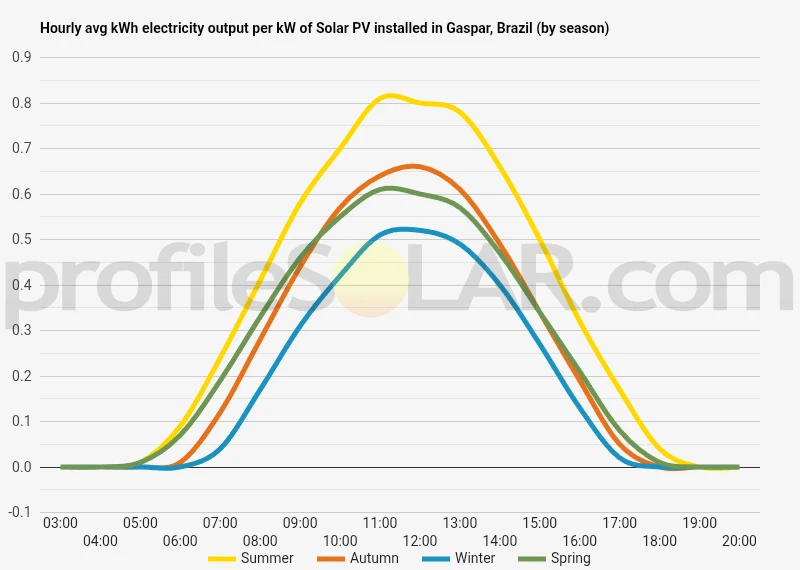

Solar output per kW of installed solar PV by season in Gaspar

Seasonal solar PV output for Latitude: -26.9219, Longitude: -48.9796 (Gaspar, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Gaspar, Brazil

To maximize your solar PV system's energy output in Gaspar, Brazil (Lat/Long -26.9219, -48.9796) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gaspar, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gaspar, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	43° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gaspar, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gaspar, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gaspar, Brazil

The landscape around Gaspar, Brazil is characterized by a diverse topography that transitions from coastal lowlands to rolling hills and eventually into the foothills of the Serra do Mar mountain range. Situated in the state of Santa Catarina in southern Brazil, Gaspar lies in the Itajaí River valley, approximately 20 kilometers inland from the Atlantic Ocean. The immediate area around Gaspar features a mix of flat river plains and gentle hills. The Itajaí River, one of the most important waterways in Santa Catarina, flows through the region, creating fertile alluvial plains that have historically been used for agriculture. These flat areas are interspersed with undulating terrain that gradually rises as one moves away from the river.

Elevation Patterns

Moving westward from Gaspar, the terrain becomes increasingly elevated and rugged as it approaches the Serra do Mar mountain range. These mountains form part of the Great Escarpment that runs along much of Brazil's eastern coast. The transition from the coastal plains to the highlands creates a varied landscape with numerous small valleys, ridges, and plateaus. The eastern portions of the region, closer to the coast, maintain lower elevations with some wetland areas near the river mouths. This gradual elevation change from east to west is a defining characteristic of the region's topography.

Vegetation and Land Use

The natural vegetation around Gaspar consists primarily of Atlantic Forest (Mata Atlântica) ecosystems, though much of this has been modified by human activity. The remaining forest patches tend to be concentrated on steeper slopes and higher elevations where agriculture is less practical. The lowland areas have been extensively developed for agriculture, urban settlement, and industrial use.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Gaspar show promising characteristics: The gently sloping hills to the north and northwest of Gaspar offer good potential for solar development. These areas provide sufficient elevation to avoid flooding concerns while maintaining relatively gentle grades that simplify construction and maintenance of solar arrays. The slight slopes, particularly those with southern aspects, provide natural drainage while still allowing for efficient panel placement. The more elevated plateaus to the west, where the terrain begins to rise toward the Serra do Mar, present another opportunity. These areas often feature cleared land that was previously used for agriculture but might be less productive than the fertile river valleys. Such locations typically experience less fog than the river valleys and have fewer tall trees to cast shadows.

Constraints and Considerations

Several factors constrain potential solar development in the region. The lower-lying areas along the Itajaí River, while flat and accessible, face periodic flooding risks that make them less suitable for critical infrastructure like solar farms. Additionally, these fertile riverine areas are valuable agricultural lands that may be better reserved for food production. The steeper slopes of the Serra do Mar foothills, while elevated and receiving good solar exposure, present construction challenges and potential environmental concerns related to soil erosion and habitat disruption. These areas often retain some of the region's remaining Atlantic Forest coverage, which represents an important ecological resource. Urban expansion around Gaspar and neighboring municipalities also limits available land for large-scale solar development in the immediate vicinity of the city. This pushes potential development sites further into the peripheral areas where land use competition may be less intense. The region's climate introduces additional considerations. The humid subtropical climate brings consistent rainfall throughout the year, which can affect solar panel efficiency but also helps naturally clean the panels of dust accumulation. The moderate temperatures are favorable for photovoltaic efficiency compared to extremely hot regions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
