General Sampaio, Ceará, Brazil represents an excellent location for year-round solar energy generation. Located in the tropics at coordinates -4.0513, -39.4467, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Performance

The solar energy output at General Sampaio shows strong and consistent performance across all seasons. Summer delivers 5.72 kWh per day per kW of installed solar capacity, while autumn slightly improves to 5.81 kWh/day. Winter performance increases further to 6.00 kWh/day, and spring represents the peak production period at 6.92 kWh/day per kW of installed capacity. Spring emerges as the optimal season for solar generation at this location, producing approximately 21% more energy than the lowest-performing summer season. This seasonal variation is relatively modest compared to locations at higher latitudes, making General Sampaio highly suitable for consistent year-round solar energy production.

Optimal Panel Configuration

For maximum year-round energy production at General Sampaio, Ceará, solar panels should be installed at a fixed tilt angle of 4 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel tilts, and weighting these angles according to daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant factors in General Sampaio's tropical environment can impact solar energy production and require careful consideration during installation. The region's wet season brings heavy rainfall and high humidity levels. While rain can help clean solar panels naturally, excessive moisture can lead to corrosion of electrical components and reduced system efficiency. Prolonged cloud cover during intense rainy periods can temporarily reduce solar output, though the annual data suggests this impact is manageable. Dust accumulation presents another challenge, particularly during dry seasons when fine particles can settle on panel surfaces and reduce light transmission. In tropical environments, organic growth such as algae, moss, or bird droppings can also accumulate on panels, creating shading and reducing efficiency. High temperatures, while beneficial for solar irradiance, can actually reduce photovoltaic panel efficiency. Most solar panels lose approximately 0.4% efficiency for every degree Celsius above their rated temperature of 25°C.

Preventative Installation Measures

Several installation strategies can help maximize solar energy production in General Sampaio's tropical environment:

• Install panels with adequate ventilation spacing beneath and around them to promote air circulation and cooling
• Use corrosion-resistant mounting hardware and electrical components rated for high-humidity environments
• Implement proper drainage systems to prevent water accumulation around panel installations
• Choose panels with anti-reflective and hydrophobic coatings that resist dirt accumulation and promote self-cleaning during rainfall
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Regular maintenance schedules should include panel cleaning during dry periods and inspection of electrical connections for signs of moisture damage. Proper grounding and surge protection become especially important in areas prone to tropical storms and lightning activity. Despite these challenges, General Sampaio's consistent solar resource and relatively stable year-round production make it an attractive location for solar energy projects when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

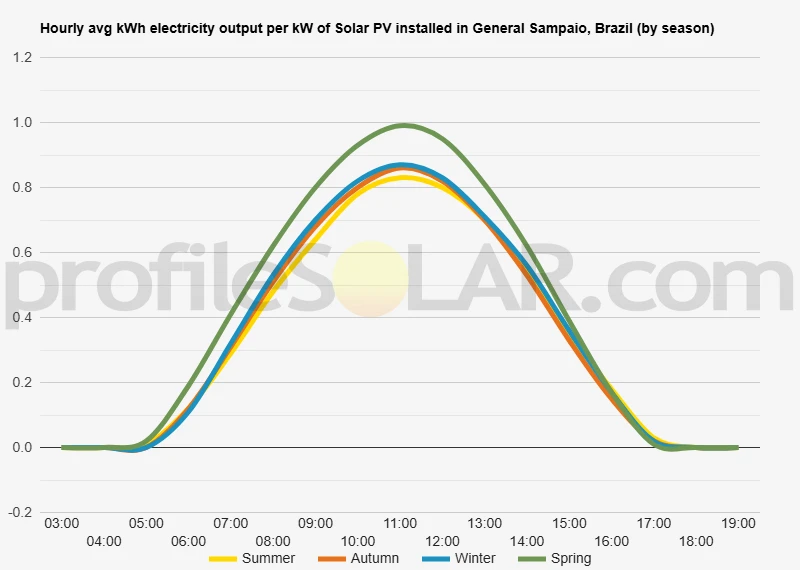

Solar output per kW of installed solar PV by season in General Sampaio

Seasonal solar PV output for Latitude: -4.0513, Longitude: -39.4467 (General Sampaio, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in General Sampaio, Brazil

To maximize your solar PV system's energy output in General Sampaio, Brazil (Lat/Long -4.0513, -39.4467) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for General Sampaio, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in General Sampaio, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in General Sampaio, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in General Sampaio, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around General Sampaio, Brazil

Topographical Features of General Sampaio

General Sampaio is located in the interior of Ceará state in northeastern Brazil, positioned within the semi-arid region known as the Caatinga. The topography around this municipality is characterized by relatively flat to gently rolling terrain, with elevations typically ranging from 200 to 400 meters above sea level. The landscape consists predominantly of low hills and broad valleys, creating a moderately undulating terrain that is neither mountainous nor completely flat. The region sits within the crystalline basement complex of the Brazilian Shield, which has been extensively weathered and eroded over geological time. This has resulted in a landscape of rounded hills and shallow depressions, with occasional rocky outcrops and inselbergs - isolated hills that rise abruptly from the surrounding plains. The drainage pattern is dendritic, with seasonal streams and rivers flowing generally eastward toward the Atlantic Ocean.

Soil and Surface Conditions

The soils in the General Sampaio area are predominantly shallow and rocky, typical of the semi-arid Caatinga region. These soils are generally classified as Luvisols and Planosols, which tend to be thin and have limited agricultural potential due to their low organic matter content and seasonal waterlogging in some areas. The surface is often covered with a sparse layer of native Caatinga vegetation, consisting of drought-resistant shrubs, small trees, and cacti that have adapted to the region's dry climate. Rock outcrops are common throughout the landscape, with exposed crystalline rocks including gneiss, schist, and granite formations. These geological features create a somewhat irregular terrain surface, though the overall topography remains relatively gentle with moderate slopes.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around General Sampaio would be the flatter valley floors and gentle slopes with southern exposure. These areas offer several advantages including easier construction access, reduced grading requirements, and optimal panel positioning. The broad valleys that extend eastward and southward from the town center present particularly favorable conditions due to their relatively level terrain and minimal shading from surrounding topographical features. The elevated plateaus and mesa-like formations scattered throughout the region also present excellent opportunities for solar development. These areas typically have good drainage, stable foundations, and minimal vegetation clearing requirements. The higher elevations often experience better air circulation, which can help maintain optimal operating temperatures for solar equipment. Areas with gentle south-facing slopes between 2-5 degrees would be particularly well-suited for fixed-tilt solar installations, as they naturally provide optimal panel orientation without requiring significant earthwork. The rocky substrate in many locations, while challenging for some types of development, can actually provide excellent foundation conditions for solar mounting systems.

Infrastructure and Access Considerations

The terrain around General Sampaio is generally accessible by conventional construction equipment, with most areas reachable via existing rural roads or requiring minimal road construction. The moderate topography means that large solar installations would not require extensive cut-and-fill operations, reducing both construction costs and environmental impact. The presence of existing agricultural clearings and pastureland in the flatter areas provides ready-made sites that would require minimal vegetation removal. These cleared areas, particularly those on gentle slopes with good southern exposure, represent the most immediately viable locations for solar development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
