Goioxim, Paraná, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.95 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best season with 6.09 kWh per day per kW, while autumn drops to 5.32 kWh per day per kW. Winter presents the most challenging period with only 4.04 kWh per day per kW, representing a substantial 42% decrease compared to summer output. For optimal year-round energy production from a fixed panel installation at Goioxim, Paraná, panels should be tilted at 22 degrees toward the North. This angle maximizes the total annual solar collection by accounting for the sun's varying position throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Goioxim region can significantly impact solar PV performance:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote corrosion of electrical components
• Heavy rainfall periods: Intense precipitation common in subtropical regions can cause temporary shading and may lead to water damage if systems aren't properly sealed
• Temperature fluctuations: Significant seasonal temperature variations can stress solar panels and reduce their efficiency, particularly during hot summer periods
• Potential for severe weather: The region may experience strong winds, hail, or storms that could physically damage solar installations

Preventative Installation Measures

To maximize energy production and system longevity in Goioxim's climate, several protective measures should be implemented. All electrical connections and junction boxes should use marine-grade or tropical-rated components with superior moisture resistance and corrosion protection. Proper drainage systems must be installed around ground-mounted arrays to prevent water accumulation during heavy rains. Panel mounting systems should be constructed from corrosion-resistant materials like anodized aluminum or galvanized steel with additional protective coatings. Adequate ventilation space should be maintained behind panels to promote air circulation and reduce heat buildup that can decrease efficiency. Regular maintenance scheduling becomes particularly important in this environment, including frequent cleaning to remove humidity-related buildup and periodic inspection of seals and connections. Installing surge protection devices can help protect against electrical damage from the lightning strikes that often accompany subtropical storms.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

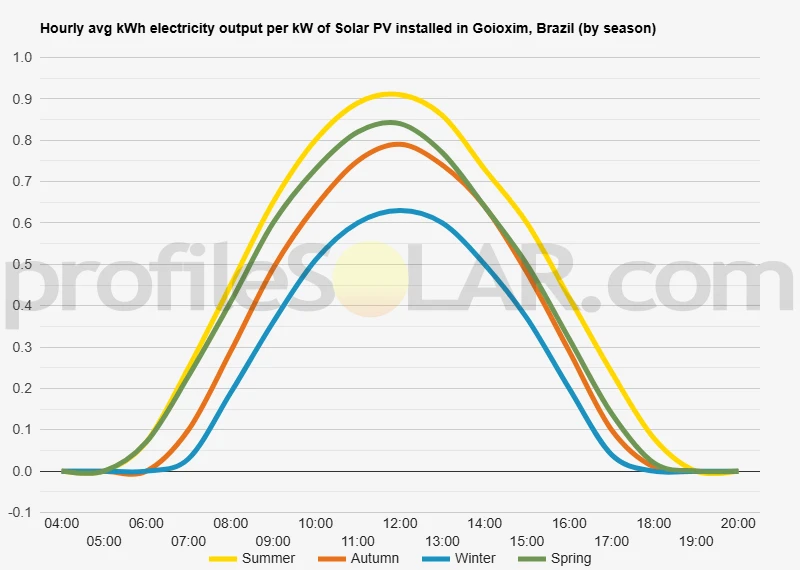

Solar output per kW of installed solar PV by season in Goioxim

Seasonal solar PV output for Latitude: -25.0936, Longitude: -52.0083 (Goioxim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Goioxim, Brazil

To maximize your solar PV system's energy output in Goioxim, Brazil (Lat/Long -25.0936, -52.0083) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Goioxim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Goioxim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Goioxim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Goioxim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Goioxim, Brazil

Topographical Features of the Goioxim Region

The area surrounding Goioxim in Paraná state, Brazil, is characterized by gently rolling hills and plateaus typical of the southern Brazilian highlands. This region sits within the Paraná Plateau, which forms part of the broader Brazilian Plateau system. The landscape features moderate elevation changes with undulating terrain that creates a series of ridges and valleys across the countryside. The topography consists primarily of sedimentary rock formations overlaid with fertile soils, creating a landscape that has been extensively modified for agricultural use. The terrain slopes gradually from higher elevations in the east toward lower areas in the west, following the general drainage pattern of the region. Most of the original Atlantic Forest vegetation has been cleared over decades, leaving behind open farmland and pastures with scattered remnants of native woodland along watercourses and steeper slopes. Rolling hills dominate the immediate vicinity, with elevation changes that are significant enough to create varied microclimates but not so steep as to prevent large-scale development. The area experiences well-defined seasonal variations, with the topography influencing local weather patterns and drainage characteristics throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and gentle south-facing slopes that characterize much of the agricultural land surrounding Goioxim. These elevated areas offer several advantages including reduced risk of flooding, better drainage, and fewer obstructions from surrounding terrain features. The agricultural plateaus extending north and west of the town present particularly favorable conditions for solar development. These areas feature relatively flat to gently sloping terrain that would minimize grading requirements and construction costs while maximizing the efficiency of panel installation. The open nature of these farmlands means fewer obstacles from existing vegetation or structures. Areas with southern exposure on the gentler slopes would be especially well-suited for solar arrays, as they can take advantage of optimal sun angles throughout the day while avoiding the steeper gradients that might complicate installation or maintenance access. The existing agricultural infrastructure in these areas, including road networks and electrical connections, could potentially support large-scale renewable energy development. The higher elevation areas also tend to experience better air circulation, which can help maintain optimal operating temperatures for photovoltaic equipment. Additionally, these locations are typically removed from the more densely settled areas around the town center, reducing potential conflicts with residential or commercial land uses while still maintaining reasonable access to existing electrical grid infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
