Gramado, Rio Grande do Sul, Brazil, situated in the Southern Sub Tropics at latitude -29.3623 and longitude -50.8957, offers a variable but generally favorable environment for solar PV energy generation throughout the year. The seasonal variations in energy production show distinct patterns that potential solar adopters should consider.

Seasonal Solar Production

Solar energy generation in Gramado follows a predictable seasonal pattern. Summer months deliver the highest energy output at 6.87kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.67kWh/day. Autumn sees a moderate decrease to 4.48kWh/day, while winter represents the lowest production period with 3.28kWh/day per kilowatt installed.

The substantial difference between summer and winter production (more than double) indicates significant seasonal variability that system designers need to account for when planning installations in this region.

Optimal Panel Installation

For fixed solar panel installations in Gramado, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle optimizes the annual solar harvest by balancing seasonal variations in the sun's position throughout the year.

Environmental and Weather Considerations

Several environmental factors in Gramado may affect solar production:

• Cloud cover and rainfall: The region experiences relatively high precipitation, especially during winter months, which can temporarily reduce solar efficiency.
• Morning fog: Common in this mountainous region, potentially delaying peak production until mid-morning.
• Occasional hailstorms: While infrequent, they pose a risk to panel integrity.
• Dust and pollen: The heavily vegetated surroundings can lead to panel soiling.

Preventative Measures

To maximize solar production in Gramado despite these challenges, consider implementing these preventative measures:

• Install hail-resistant panels with tempered glass that meet local weather condition requirements.
• Implement an automated or regular cleaning schedule to remove pollen, dust, and other debris.
• Consider slightly oversizing the system to compensate for winter's reduced production.
• Install a monitoring system to track performance and quickly identify any issues affecting production.
• Position panels to minimize morning fog impact, potentially with a steeper angle than the mathematical optimum if morning production is particularly important.

With proper system design and maintenance, Gramado can be a viable location for solar PV installations, though users should expect significant seasonal variations in energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

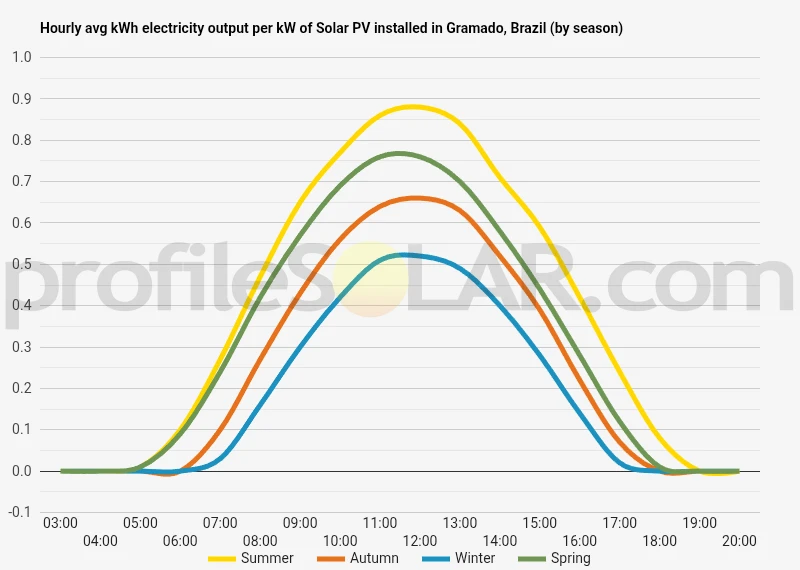

Solar output per kW of installed solar PV by season in Gramado

Seasonal solar PV output for Latitude: -29.3623, Longitude: -50.8957 (Gramado, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Gramado, Brazil

To maximize your solar PV system's energy output in Gramado, Brazil (Lat/Long -29.3623, -50.8957) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gramado, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gramado, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gramado, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gramado, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gramado, Brazil

Nestled in the mountainous terrain of Brazil's southernmost state, Rio Grande do Sul, Gramado presents a distinctive topographical profile characterized by rolling hills, steep valleys, and elevated plateaus. The landscape surrounding this charming municipality sits at an average elevation of approximately 830 meters above sea level, forming part of the Serra Gaúcha highlands. This region represents the southern extension of the greater Serra do Mar mountain range that runs along much of Brazil's Atlantic coast. The topography around Gramado features significant variations in elevation, with numerous hills and valleys creating a complex terrain pattern. The natural landscape includes densely forested areas interspersed with clearings and meadows. Several small rivers and streams cut through the terrain, further accentuating the varied relief of the region. The undulating nature of the land contributes to localized climate variations and microclimates throughout the area.

Surrounding Geographical Features

To the east of Gramado, the terrain gradually descends toward the coastal plains of Rio Grande do Sul, while the northern and western areas maintain their mountainous character. The region is part of the Atlantic Forest biome, though much of the original vegetation has been modified by human settlement and agricultural activities over centuries of occupation. The soil composition in the area tends toward clay-rich types with moderate fertility, influenced by the underlying basaltic rock formations common throughout the Serra Gaúcha. These geological characteristics have shaped not only the visible landscape but also the drainage patterns and vegetation distribution across the region.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic installations near Gramado, several factors related to topography become relevant. The ideal locations would balance elevation, slope orientation, and accessibility while minimizing environmental impact and land-use conflicts. The areas extending northeast toward Caxias do Sul and southwest toward São Francisco de Paula present moderately elevated plateaus with gentler slopes than those immediately surrounding Gramado. These locations offer relatively flat terrain that would require less grading and preparation for solar array installation. The slightly lower elevation of some of these plateau regions also means they experience less frequent cloud cover than the highest peaks in the vicinity. Specifically, the more open agricultural lands approximately 15-20 kilometers to the southwest of Gramado provide promising conditions for solar development. These areas feature clearer horizons with fewer tall trees creating shadows, and the land has already undergone some level of modification for human use, potentially reducing the environmental impact of new solar installations. The gently sloping hills to the northwest, in the direction of Nova Petrópolis, also merit consideration. While featuring some variation in elevation, these areas include south-facing slopes (which in the Southern Hemisphere receive more consistent sunlight throughout the year) and existing road infrastructure that could facilitate construction and maintenance access. It's worth noting that the immediate vicinity of Gramado itself presents challenges for large-scale solar development due to its steep terrain, forested areas, and established tourism infrastructure. The most suitable locations would be found at some distance from the urban center, where larger tracts of appropriate land remain available and where development would not conflict with the region's significant tourism economy.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
