Guapiara, São Paulo, Brazil represents a reasonably good location for year-round solar energy generation, though it experiences notable seasonal variations in output. Located in the tropical region where sunlight remains fairly consistent throughout the year, this area sees energy production that ranges from strong performance in summer to more moderate levels during winter months.

Seasonal Solar Performance

The solar energy output at Guapiara shows clear seasonal patterns. Summer delivers the highest production at 6.06 kWh per day per kW of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best performing season with 5.33 kWh per day, while autumn produces 5.06 kWh per day. Winter represents the lowest production period at 4.16 kWh per day, though this still provides substantial energy output. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the varying solar irradiance levels across all seasons.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges through increased cloud cover, heavy rainfall, and higher humidity levels. These conditions can reduce solar irradiance and affect panel efficiency. Dust accumulation during dry periods represents another concern, as particles settling on panel surfaces can significantly reduce energy output. The region's vegetation growth in the tropical climate may also create shading issues if not properly managed during installation planning.

Preventative Measures for Enhanced Production

Several installation strategies can help maximize solar energy production despite these challenges:

• Install panels with adequate spacing and mounting systems that allow for proper drainage during heavy rainfall periods
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Choose high-quality panels with anti-reflective coatings that perform better in humid conditions
• Ensure proper site selection with minimal shading from existing or potential future vegetation growth
• Consider slightly steeper mounting angles in areas prone to heavy rainfall to improve self-cleaning through water runoff

Overall, Guapiara offers solid potential for solar energy generation throughout the year, with summer and spring providing the most favorable conditions. Proper installation techniques and maintenance practices can help overcome the environmental challenges typical of tropical locations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

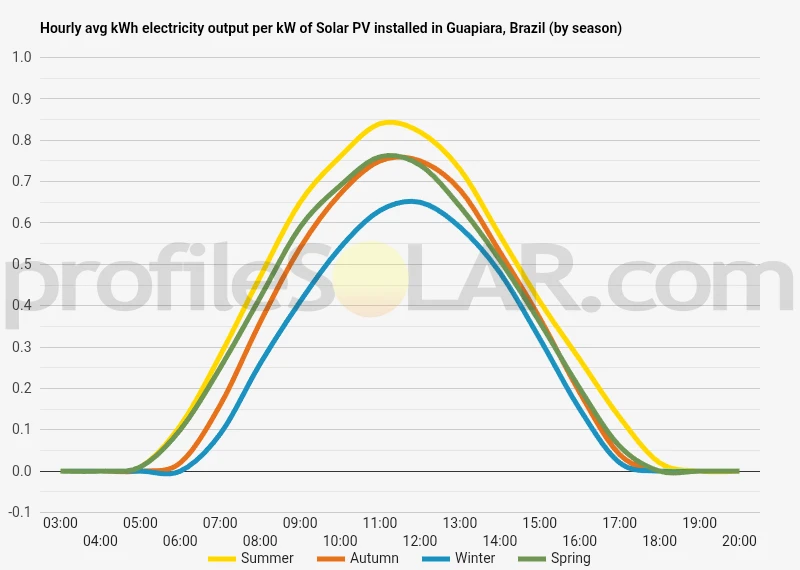

Solar output per kW of installed solar PV by season in Guapiara

Seasonal solar PV output for Latitude: -23.3088, Longitude: -46.928 (Guapiara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Guapiara, Brazil

To maximize your solar PV system's energy output in Guapiara, Brazil (Lat/Long -23.3088, -46.928) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guapiara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guapiara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guapiara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guapiara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guapiara, Brazil

Topographical Features of the Guapiara Region

The area surrounding Guapiara in São Paulo state sits within the Brazilian Highlands, characterized by rolling hills and moderate elevation changes typical of the southeastern Brazilian plateau. This region forms part of the larger Paranapiacaba mountain system, where elevations generally range from 600 to 900 meters above sea level. The terrain consists of undulating landscapes with gentle to moderate slopes, interspersed with river valleys that cut through the highland areas. The topography is dominated by sedimentary rock formations overlaid with weathered soils, creating a landscape of rounded hills and broad valleys. Several small tributaries of the Paranapanema River system flow through the region, carving shallow valleys and creating natural drainage patterns. The relief is generally not extreme, with most slopes being manageable for development and infrastructure projects.

Climate and Environmental Conditions

The highland location provides the Guapiara area with a subtropical climate that experiences distinct wet and dry seasons. The elevation moderates temperatures throughout the year, while the topographical position allows for good air circulation and minimal fog formation. The region benefits from relatively clear skies during the dry season months, with the rolling terrain providing natural wind flow patterns that help clear atmospheric moisture. The area experiences seasonal rainfall patterns typical of interior São Paulo, with the wet season bringing afternoon thunderstorms that move across the highlands. The topography allows these weather systems to pass through efficiently, reducing the likelihood of prolonged overcast conditions that might affect solar energy generation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Guapiara would be the broader plateau areas and gentle south-facing slopes that characterize much of the regional topography. These areas offer relatively flat to gently sloping terrain that minimizes construction costs and maximizes panel efficiency through optimal positioning. The elevated plateaus between river valleys present ideal conditions, as they provide stable ground conditions, good drainage, and minimal shading from surrounding terrain features. Areas with slopes of less than 5 degrees would be particularly advantageous, as they allow for standard mounting systems while still providing natural drainage for rainwater runoff. The region's proximity to existing agricultural lands also presents opportunities, as the topography that supports farming operations typically indicates suitable soil stability and accessibility for solar infrastructure. The rolling nature of the terrain means that large installations could be positioned to take advantage of multiple hill faces and plateau areas, potentially creating solar farms that follow the natural contours of the landscape. Transportation access is facilitated by the region's moderate topography, with existing road networks able to serve potential solar installations without requiring extensive infrastructure modifications. The highland position also provides natural elevation advantages for electrical transmission infrastructure, as power lines can follow ridge lines and elevated areas for efficient connection to the regional electrical grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
