Guapimirim, Rio de Janeiro, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this tropical location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 6.39 kWh per day per kW of installed capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 4.90 kWh daily output, while autumn produces 5.19 kWh per day. Winter presents the most challenging conditions for solar generation, dropping to just 4.24 kWh per day per kW installed. This represents a substantial 34% decrease compared to peak summer performance, which is quite significant for a tropical location.

Optimal Installation Configuration

For maximum year-round energy production, solar panels at Guapimirim should be installed at a fixed tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Environmental and Weather Challenges

Several local factors could significantly impact solar energy production at this location:

• Tropical rainfall patterns: The pronounced wet season typical of tropical climates can reduce solar output through cloud cover and frequent precipitation
• High humidity levels: Persistent moisture in the air can create atmospheric haze that diminishes solar irradiance
• Dust and debris accumulation: The combination of dry periods followed by heavy rains can lead to significant soiling of solar panels
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Recommended Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Regular cleaning schedules become essential, particularly before and after the wet season transitions. Installing panels with adequate spacing allows for proper air circulation and easier maintenance access. Choosing mounting systems that elevate panels sufficiently above ground level helps prevent debris accumulation and improves drainage. Vegetation management around the solar installation site requires ongoing attention, with regular trimming of trees and bushes that could cast shadows on the panels. Consider installing monitoring systems that can quickly identify performance drops due to soiling or shading issues. The seasonal variation from 4.24 kWh in winter to 6.39 kWh in summer suggests that energy storage or grid-tie systems should be sized to account for this 34% fluctuation in output, ensuring reliable power supply during the lower-production winter months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

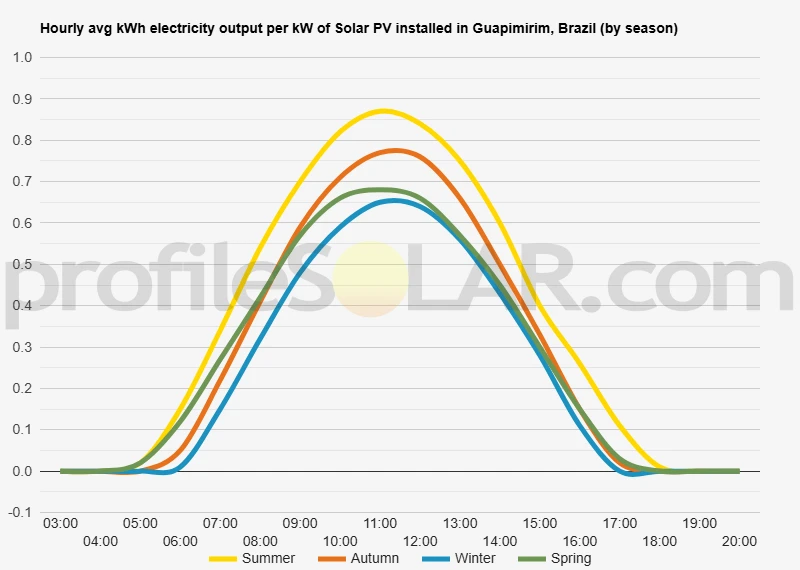

Solar output per kW of installed solar PV by season in Guapimirim

Seasonal solar PV output for Latitude: -22.5888, Longitude: -42.9784 (Guapimirim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Guapimirim, Brazil

To maximize your solar PV system's energy output in Guapimirim, Brazil (Lat/Long -22.5888, -42.9784) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guapimirim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guapimirim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guapimirim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guapimirim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guapimirim, Brazil

Topographical Features of Guapimirim

Guapimirim sits in a distinctive geographical setting within the state of Rio de Janeiro, positioned at the foot of the Serra dos Órgãos mountain range. The municipality occupies a transitional zone between the coastal lowlands and the dramatic mountainous terrain that characterizes much of this region of Brazil. The landscape is dominated by rolling hills that gradually rise toward the imposing peaks of the nearby national park, creating a varied topography that ranges from relatively flat areas near sea level to steep mountainous terrain reaching significant elevations.

The region features a complex network of rivers and streams that flow down from the mountains, creating numerous valleys and floodplains throughout the area. These waterways have carved distinctive patterns into the landscape over millennia, resulting in a terrain that alternates between gentle slopes and more pronounced elevation changes. The proximity to Guanabara Bay influences the local topography, with tidal marshlands and wetland areas extending inland from the coast.

Much of the immediate vicinity around Guapimirim consists of Atlantic Forest remnants covering the hillsides and mountain slopes. This dense vegetation creates a green canopy across much of the elevated terrain, while cleared areas in the valleys and lower elevations are primarily used for agriculture and urban development. The topographical diversity means that elevation changes can be quite dramatic over relatively short distances, particularly as one moves away from the town center toward the mountain foothills.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations would be found in the relatively flat agricultural areas and cleared pastureland that extend northwest and southwest of Guapimirim's urban center. These zones offer the dual advantages of minimal slope and existing cleared land, reducing both construction complexity and environmental impact. The terrain in these directions tends to be more uniform and accessible, making it practical for large-scale development projects.

Areas toward the coastal plain, particularly those with southern and southeastern exposures on gentle slopes, would provide excellent conditions for solar arrays. The topography in these locations typically features gradual elevation changes rather than steep inclines, allowing for efficient panel placement and maintenance access. The cleared agricultural zones in this direction benefit from being relatively free of the dense forest cover that characterizes the mountainous areas.

The valley floors and broader floodplains throughout the region could accommodate substantial solar installations, provided they are positioned above typical flood levels. These areas often feature the most level terrain available in the municipality and tend to have existing road access for construction and maintenance activities. The key consideration would be selecting sites with appropriate drainage and elevation to avoid seasonal flooding issues common in low-lying areas near waterways.

Conversely, the steep mountainous terrain to the north and east would be largely unsuitable for large-scale solar development due to challenging topography, dense forest cover, and difficult access conditions. The protected status of much of the Serra dos Órgãos region would also present regulatory obstacles to development in these areas, making the flatter agricultural and pastoral lands the clear preference for substantial solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
