Guaraciama, Minas Gerais, Brazil presents a good location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout most of the year. Located at coordinates -17.0807, -43.6031, this area experiences the typical tropical pattern where seasons are distinguished more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output at Guaraciama shows strong performance across all seasons. Summer delivers the highest production at 6.15kWh per day per kW of installed solar capacity, while spring follows closely with 5.99kWh/day per kW. Autumn maintains solid output at 5.80kWh/day per kW, and even winter, the lowest-producing season, still generates a respectable 5.17kWh/day per kW. The ideal times for solar generation at this location are summer and spring, when output peaks above 6kWh/day per kW. However, the relatively small variation between seasons means that solar panels will perform consistently well throughout the year, making this an excellent location for reliable solar energy production. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 16 degrees facing North. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Guaraciama and require consideration during installation:

• Tropical rainfall and humidity: The wet season brings heavy rains and high humidity levels that can reduce solar panel efficiency and create maintenance challenges
• Dust and particulate matter: Dry seasons may result in dust accumulation on panel surfaces, reducing light transmission and energy output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed
• Extreme weather events: Tropical storms and heavy rainfall events can potentially damage installations or create temporary outages

Preventative Measures for Optimal Performance

To maximize energy production and system longevity at this location, several preventative measures should be implemented: Regular cleaning schedules become essential, particularly during dry periods when dust accumulation is most problematic. Installing panels with self-cleaning coatings or automated washing systems can help maintain optimal light transmission throughout the year. Proper drainage systems around solar installations will prevent water pooling during heavy rains and reduce humidity-related issues. Elevated mounting systems with adequate ventilation underneath panels help combat the effects of high humidity by promoting air circulation and cooling. Strategic vegetation management around the installation site prevents shading issues while maintaining the natural landscape. This includes regular trimming of fast-growing tropical plants and careful initial site selection to avoid areas with large trees that could cast shadows. Robust mounting systems designed to withstand tropical weather conditions, including strong winds and heavy rainfall, ensure system durability. Using corrosion-resistant materials becomes particularly important in the humid tropical environment to prevent premature equipment failure. Overall, Guaraciama offers excellent potential for solar energy generation with consistent output throughout the year, provided that proper installation techniques and maintenance practices account for the local tropical conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

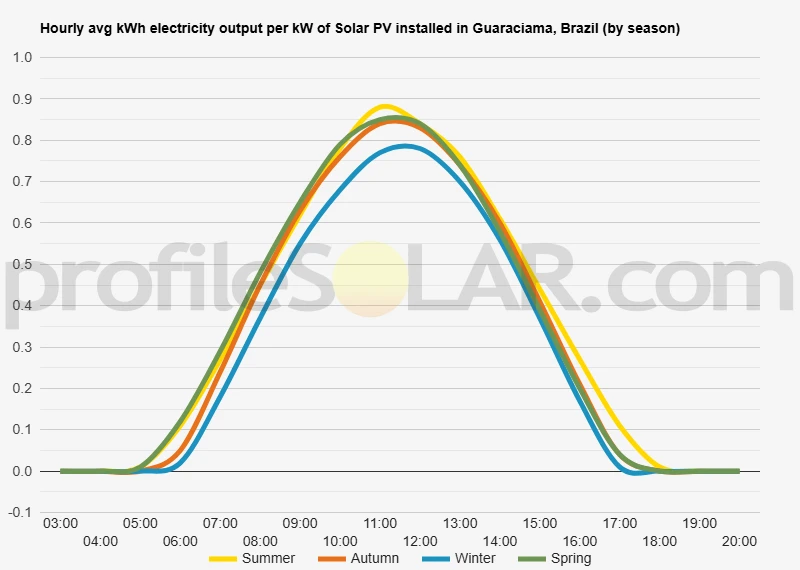

Solar output per kW of installed solar PV by season in Guaraciama

Seasonal solar PV output for Latitude: -17.0807, Longitude: -43.6031 (Guaraciama, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Guaraciama, Brazil

To maximize your solar PV system's energy output in Guaraciama, Brazil (Lat/Long -17.0807, -43.6031) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guaraciama, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guaraciama, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	23° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guaraciama, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guaraciama, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guaraciama, Brazil

Topographical Features of Guaraciama Region

Guaraciama is situated in the northern portion of Minas Gerais state, within a landscape characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. The terrain around this municipality features a mix of gentle slopes and flatter valley areas, with elevations generally ranging from approximately 600 to 900 meters above sea level. The topography is part of the broader Cerrado biome, which extends across much of central Brazil and is known for its relatively open terrain with scattered vegetation.

The local landscape is dominated by undulating plains interrupted by low ridges and occasional mesa-like formations. These elevated areas provide natural vantage points across the surrounding countryside, while the intervening valleys often contain seasonal waterways that flow toward larger river systems. The soil composition in this region is predominantly composed of weathered crystalline rocks, creating a foundation that is generally stable for construction purposes.

The vegetation in the immediate area consists primarily of Cerrado savanna, featuring scattered trees and shrubs interspersed with grasslands. This relatively sparse vegetation cover means that large areas of land remain unobstructed by dense forest canopy, which is advantageous for solar energy applications. The climate in this region is characterized by distinct wet and dry seasons, with the dry season typically extending from May through September.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Guaraciama would be the flatter plateau areas and gentle south-facing slopes that dot the landscape. These elevated plains offer several advantages, including minimal shading from surrounding terrain and excellent exposure to sunlight throughout the day. The relatively stable geological foundation in these areas also reduces construction costs and engineering challenges associated with ground preparation.

Areas to the west and southwest of Guaraciama present particularly promising opportunities, where the terrain opens up into broader expanses of gently rolling hills with minimal tree coverage. These locations benefit from being situated on higher ground, which typically experiences better air circulation and reduced humidity levels that can affect solar panel efficiency. The open nature of the Cerrado landscape in these directions means that large contiguous areas could potentially be developed without significant environmental disruption to dense forest ecosystems.

The elevated ridges and mesa tops scattered throughout the region also represent excellent candidates for solar installations, though they may be better suited for smaller-scale developments due to their more limited area. These elevated positions offer the advantage of reduced atmospheric interference and excellent visibility across the surrounding landscape, making them ideal for monitoring and maintenance operations.

Areas near existing transportation infrastructure, particularly those accessible via the regional road network connecting Guaraciama to larger urban centers, would be most practical for development. The relatively flat terrain along these corridors facilitates both construction activities and ongoing maintenance operations, while proximity to existing electrical transmission lines reduces the infrastructure investment required for grid connection.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
