Solar Energy Potential in Guarapari, Espírito Santo, Brazil

Guarapari, Espírito Santo, Brazil, situated along the Atlantic coast at latitude -20.6696 and longitude -40.5028, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, making it a viable candidate for solar photovoltaic (PV) installations. The seasonal solar energy production in Guarapari demonstrates good year-round potential. During summer months, solar panels can generate approximately 6.23 kWh per day for each kilowatt of installed capacity. Autumn sees a slight reduction to 5.34 kWh/day, while winter represents the lowest production period at 4.44 kWh/day. Spring performance rebounds to 5.03 kWh/day per kilowatt installed. For fixed solar panel installations in Guarapari, Espírito Santo, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle optimizes the capture of solar radiation throughout the year, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit around the sun.

Seasonal Considerations

Summer clearly represents the peak production season in Guarapari, Espírito Santo, with energy generation approximately 40% higher than during the winter months. This pattern aligns with the typical solar radiation distribution in tropical regions where the difference between seasons is less pronounced than in temperate zones. The transition seasons of autumn and spring offer moderate production levels, making Guarapari a location with no extreme seasonal dropoffs in solar potential. This consistency is advantageous for year-round energy planning and reduces the need for extensive seasonal backup power systems.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Guarapari:

• Coastal humidity and salt spray can accelerate corrosion of solar equipment and reduce panel efficiency if not properly addressed.
• Occasional tropical storms during the wet season may temporarily reduce production and potentially damage improperly secured installations.
• Dust and pollen accumulation, particularly during dry periods, can gradually decrease panel efficiency.

To mitigate these challenges, several preventative measures are recommended. Installing marine-grade components and protective coatings can combat salt corrosion issues. Robust mounting systems designed to withstand tropical storm conditions ensure system longevity. Regular cleaning schedules, potentially with automated cleaning systems, help maintain optimal panel efficiency by removing dust and salt deposits. Additionally, including micro-inverters or power optimizers in the system design can minimize production losses when some panels are partially shaded or affected by environmental factors. This ensures that the entire system doesn't underperform when only sections are compromised.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

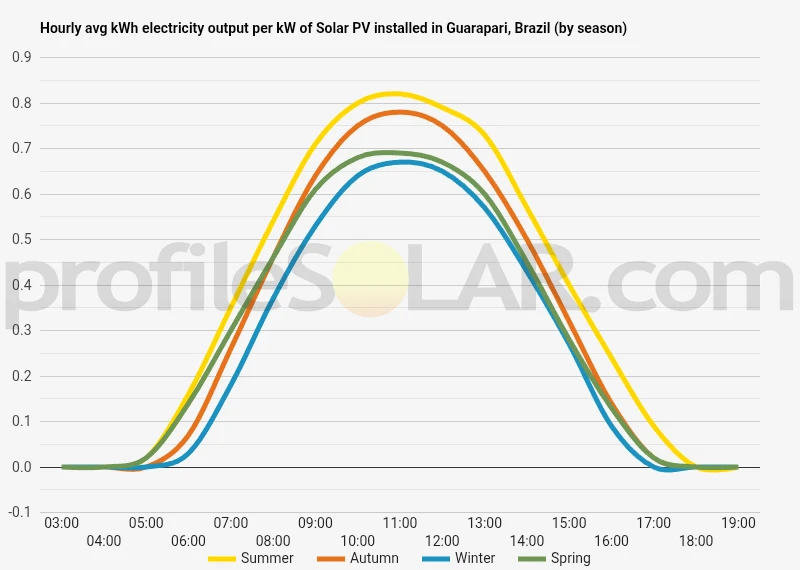

Solar output per kW of installed solar PV by season in Guarapari

Seasonal solar PV output for Latitude: -20.6696, Longitude: -40.5028 (Guarapari, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Guarapari, Brazil

To maximize your solar PV system's energy output in Guarapari, Brazil (Lat/Long -20.6696, -40.5028) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guarapari, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guarapari, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guarapari, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guarapari, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guarapari, Brazil

Guarapari is situated on the eastern coastline of Brazil in the state of Espírito Santo, approximately 50 kilometers south of the state capital, Vitória. The topography of Guarapari and its surrounding areas is characterized by a diverse landscape that includes coastal plains, rolling hills, and more elevated terrain as one moves inland. Along the immediate coastline, Guarapari features beautiful sandy beaches flanked by natural rock formations. These coastal areas are relatively flat, with elevations typically less than 20 meters above sea level. Moving slightly inland, the terrain begins to undulate with gentle hills that gradually increase in elevation.

Inland Topography

As one travels westward from the coast, the landscape transitions into more pronounced hills and small mountains. These inland regions have elevations ranging from approximately 100 to 400 meters above sea level. The terrain becomes increasingly rugged with numerous valleys carved by rivers and streams that flow eastward toward the Atlantic Ocean. The western portions of the Guarapari region feature more substantial elevation changes, with some areas reaching heights of 500-600 meters. These higher elevations form part of the coastal mountain ranges that run parallel to much of Brazil's eastern seaboard.

Potential Solar PV Areas

For large-scale solar photovoltaic installations, several areas surrounding Guarapari offer favorable conditions. The most suitable locations would be found in the inland areas that feature: 1. The gently rolling hills approximately 10-30 kilometers inland from the coast present some of the best opportunities for solar development. These areas combine relatively flat terrain (reducing construction costs) with elevations that help avoid coastal fog and salt spray. 2. The higher plateaus to the west and northwest of Guarapari, where the landscape flattens somewhat after the initial rise from the coast, provide excellent potential sites. These elevated areas receive consistent solar radiation throughout the year. 3. The rural agricultural lands between Guarapari and neighboring municipalities such as Anchieta and Alfredo Chaves offer expansive open spaces with appropriate topography for solar arrays.

Topographical Challenges

Some areas around Guarapari present challenges for large-scale solar development. The steeper mountainous regions to the far west have difficult terrain that would significantly increase construction costs and complicate maintenance access. Additionally, some of the valleys that cut through the region may experience more cloud cover due to localized climate effects. The immediate coastal areas, while flat, are generally not ideal for large solar installations due to higher land values associated with tourism development, residential expansion, and the presence of sensitive coastal ecosystems. The most promising areas combine accessible terrain with good solar exposure, reasonable distance from dense urban development, and proximity to existing electrical infrastructure. These conditions are most commonly found in the transitional zones between the coastal plains and the higher inland mountains, particularly in the northern and western outskirts of the Guarapari municipality.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
