Solar Energy Production in Guarapuava, Paraná, Brazil

Guarapuava, Paraná, Brazil, located in the Southern Sub Tropics, offers a generally favorable environment for solar PV energy generation, though with notable seasonal variations. This location shows good potential for solar energy production throughout the year, with output levels that make renewable energy investment worthwhile. The seasonal energy production demonstrates clear patterns. Summer months yield the highest output at 6.56kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 5.69kWh/day, while autumn produces 5.00kWh/day. Winter shows the lowest production at 3.94kWh/day, which is still a respectable output compared to many other locations worldwide.

Optimal Installation Parameters

For fixed panel installations in Guarapuava, Paraná, the ideal tilt angle to maximize year-round energy production is 23 degrees facing North. This specific angle has been calculated to capture the maximum possible solar radiation throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Guarapuava:

• Heavy rainfall during certain periods, particularly in summer months, may temporarily reduce solar output and require regular panel cleaning
• Morning fog, common in this subtropical region, can delay peak production hours
• Occasional hailstorms pose a physical risk to panel integrity
• Dust and pollen accumulation from the surrounding vegetation can gradually reduce panel efficiency

Preventative measures to maximize production include installing hail-resistant panels with tempered glass, implementing automated cleaning systems or regular maintenance schedules, elevating panels sufficiently to avoid morning fog effects, and using anti-soiling coatings to minimize dust adhesion. The pronounced seasonal variation indicates that system sizing should account for winter's lower production if year-round energy independence is desired. Alternatively, a grid-tied system can help balance these seasonal differences while still capitalizing on the excellent summer and spring production periods. Despite these considerations, Guarapuava's location offers solid solar potential with an annual average that makes solar PV a viable energy solution for this Brazilian city.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

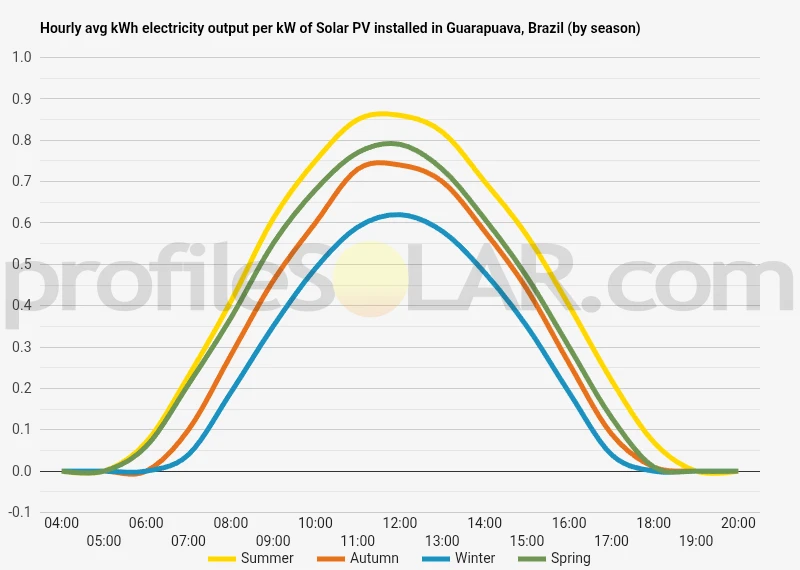

Solar output per kW of installed solar PV by season in Guarapuava

Seasonal solar PV output for Latitude: -25.3986, Longitude: -51.46 (Guarapuava, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Guarapuava, Brazil

To maximize your solar PV system's energy output in Guarapuava, Brazil (Lat/Long -25.3986, -51.46) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guarapuava, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guarapuava, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	41° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guarapuava, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guarapuava, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guarapuava, Brazil

The landscape surrounding Guarapuava, Brazil presents a diverse topographical profile characteristic of the southern Brazilian highlands. Situated on the third plateau of Paraná state at approximately 1,120 meters above sea level, Guarapuava occupies a significant position within Brazil's topographical framework. The region features a predominantly undulating terrain with gentle hills and elevated plateaus that extend across the horizon. These plateaus are part of the larger Serra da Esperança mountain formation, which creates a natural boundary on the eastern edge of the region. The western areas gradually descend toward the Paraná River basin, creating a subtle slope across the landscape.

Geological Features

Guarapuava sits atop basaltic rock formations that were created through volcanic activity millions of years ago. This geological foundation contributes to the region's characteristic red soils, which are rich in iron oxide. The terrain includes numerous valleys carved by rivers such as the Jordão and Coutinho, which have shaped the landscape over millennia. A notable geological feature of the area is the presence of mesetas - flat-topped hills with steep sides that punctuate the otherwise rolling terrain. These formations create distinctive landmarks throughout the region and influence local microclimates.

Vegetation and Land Use

The natural vegetation around Guarapuava consists primarily of mixed Araucaria forests and native grasslands known as "campos." These grasslands occupy significant portions of the elevated plateaus, while forests tend to cluster in valleys and along watercourses. Much of the original vegetation has been modified for agricultural purposes, with extensive areas now dedicated to crops such as soybeans, corn, and wheat.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Guarapuava present favorable conditions. The northwestern regions of Guarapuava municipality offer particularly suitable terrain for solar development. These areas feature gently sloping plateaus with minimal forest cover, providing expansive open spaces that receive consistent solar exposure throughout the year. The campos regions located to the south and southwest of the urban center present another promising option. These natural grasslands occupy relatively flat terrain at elevations between 1,000-1,200 meters, creating ideal conditions for solar array placement with minimal earthwork requirements. Areas near the communities of Entre Rios and Palmeirinha, approximately 20-30 kilometers from Guarapuava's center, combine favorable topography with proximity to existing transmission infrastructure. These regions feature predominantly agricultural land use with adequate road access, facilitating construction and maintenance of solar facilities.

Topographical Challenges

Despite the generally favorable terrain, certain topographical features present challenges for solar development. The eastern portions of the region, where the Serra da Esperança formation begins, feature more pronounced elevation changes and denser forest cover, making these areas less suitable for large-scale installations. The river valleys that cut through the landscape create localized areas of steep terrain that would require significant grading to accommodate solar arrays. Additionally, some portions of the region experience seasonal flooding along watercourses, necessitating careful site selection to avoid these flood-prone zones. The region's undulating character means that while flat expanses exist, many potential solar sites would require thoughtful design to accommodate the subtle variations in elevation. However, this same topographical diversity creates opportunities for optimal panel orientation and positioning to maximize solar capture throughout the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
