Guararapes, São Paulo, Brazil presents a reasonably good location for year-round solar energy generation, though it's not among the most ideal tropical locations for solar PV installations.

Solar Energy Production Performance

The solar energy output at this location shows typical seasonal variation, with summer delivering the highest production at 6.98 kWh per day per kW of installed solar capacity. Spring follows closely with 6.44 kWh/day, while autumn drops to 5.78 kWh/day. Winter represents the lowest production period at 4.93 kWh/day per kW installed. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying position throughout the year and the location's specific latitude. The most productive months for solar generation occur during summer and spring, when the sun's angle is most favorable and weather conditions typically provide clearer skies. The winter months show a notable decrease in production, though the system remains viable for energy generation throughout the year.

Environmental and Weather Challenges

Several local factors can potentially impact solar energy production at this location:

• Seasonal rainfall patterns during wet seasons can reduce solar irradiance through increased cloud cover and atmospheric moisture
• High humidity levels common in tropical regions can lead to moisture buildup on panel surfaces
• Dust and particulate matter accumulation, particularly during drier periods
• Potential for severe weather events including heavy rainfall and strong winds

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for proper air circulation
• Use high-quality mounting systems designed to withstand tropical weather conditions and strong winds
• Implement regular cleaning schedules to remove dust, debris, and moisture deposits from panel surfaces
• Consider anti-reflective coatings and self-cleaning panel technologies where budget permits
• Ensure proper drainage around installation areas to prevent water pooling during heavy rainfall periods

With proper installation techniques and maintenance practices, these environmental factors can be effectively managed to maintain strong solar energy production throughout the year at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

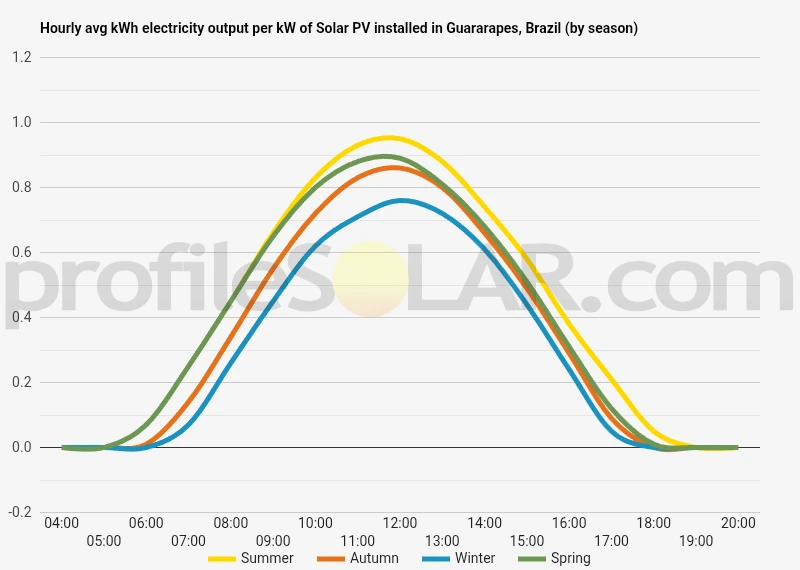

Solar output per kW of installed solar PV by season in Guararapes

Seasonal solar PV output for Latitude: -21.3368, Longitude: -50.7201 (Guararapes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Guararapes, Brazil

To maximize your solar PV system's energy output in Guararapes, Brazil (Lat/Long -21.3368, -50.7201) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guararapes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guararapes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guararapes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guararapes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guararapes, Brazil

Topographical Features of the Guararapes Region

The area around Guararapes in São Paulo state sits within Brazil's interior plateau region, characterized by gently rolling hills and relatively modest elevation changes. This part of the Brazilian Highlands features undulating terrain with elevations typically ranging between 400 and 600 meters above sea level. The landscape consists of broad, sweeping valleys interspersed with low ridges and gentle slopes that create a moderately varied topographical pattern. The region's geology is dominated by sedimentary formations and weathered crystalline rocks, which have been shaped over millions of years into the current subdued relief. River valleys cut through the landscape, creating natural drainage patterns that flow generally northward toward the Tietê River system. These waterways have carved modest depressions in the terrain, leaving interfluves - the higher ground between valleys - as potential development areas. Agricultural activity has significantly modified the natural landscape over the past century. Much of the original Atlantic Forest vegetation has been cleared for cattle ranching and crop cultivation, particularly sugarcane and soybeans. This land use change has created extensive open areas with minimal tree cover, resulting in a landscape dominated by pasturelands and agricultural fields.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Guararapes vicinity would be the elevated plateau areas and gentle hillsides with southern exposures. These locations offer several advantages including minimal shading from surrounding terrain and good natural drainage to prevent water accumulation around solar installations. The extensive agricultural plains surrounding the town present excellent opportunities for solar development due to their flat to gently sloping topography and existing cleared land status. These areas typically have slopes of less than five degrees, which is ideal for mounting solar panels without requiring extensive site preparation or specialized mounting systems. The open agricultural landscape also provides easy access for construction equipment and maintenance vehicles. Former pasturelands on the interfluves between river valleys represent particularly promising sites. These elevated areas benefit from good air circulation, which helps maintain optimal operating temperatures for solar panels, while their cleared status eliminates the need for extensive vegetation removal. The stable soils in these locations, formed from weathered bedrock, provide solid foundations for solar mounting systems. Areas to avoid for large solar installations include the steeper valley sides where slopes exceed 15 degrees, as these would require costly terracing or specialized mounting solutions. The immediate floodplains of local streams and rivers should also be avoided due to periodic flooding and potential environmental restrictions. Additionally, any remaining forest patches or areas with significant tree cover would require clearing permits and environmental assessments before development could proceed. The region's existing agricultural road network provides good access to many potential solar sites, reducing infrastructure development costs. The relatively stable weather patterns and low seismic activity in this part of São Paulo state create favorable conditions for long-term solar installations with minimal risk of weather-related damage or ground movement affecting panel alignment.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
