Guarda Mor, Minas Gerais, Brazil presents an excellent location for year-round solar PV energy generation. Located in the tropical region at coordinates -17.7639, -47.1478, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output at Guarda Mor demonstrates strong and reliable performance across all seasons. Summer delivers the highest production at 6.40 kWh per day per kW of installed solar capacity, while spring follows closely at 6.22 kWh per day. Autumn and winter show slightly lower but still substantial output at 5.97 kWh and 5.71 kWh per day respectively. The relatively small variation between seasons - only about 12% difference between the highest and lowest producing periods - makes this location particularly attractive for solar installations. This consistency means solar systems can provide reliable energy generation throughout the entire year without dramatic seasonal fluctuations that might affect energy planning.

Optimal Installation Configuration

For maximum year-round solar production at Guarda Mor, Minas Gerais, fixed solar panels should be tilted at 17 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this tropical location, though most can be effectively managed with proper installation practices. The wet season presents the most significant challenge, as increased cloud cover and frequent rainfall can temporarily reduce solar output. Heavy rains, while beneficial for cleaning panels, may be accompanied by storms that could pose risks to equipment. However, modern solar panels are designed to withstand substantial weather conditions when properly installed. High humidity levels typical of tropical regions can accelerate corrosion of metal components if not properly protected. The intense tropical sun, while beneficial for energy production, can also cause faster degradation of certain materials over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production and system longevity at Guarda Mor:

• Use marine-grade or specially treated mounting hardware and electrical components designed to resist corrosion in high-humidity environments
• Install panels with adequate spacing to promote air circulation and cooling, which helps maintain efficiency in hot tropical conditions
• Implement robust grounding systems and surge protection to safeguard against electrical storms common in tropical wet seasons
• Choose panels with strong wind load ratings and secure mounting systems to withstand potential severe weather
• Design drainage systems to prevent water accumulation around ground-mounted installations

Regular maintenance becomes particularly important in this environment. Scheduling cleaning and inspections during dry seasons can help maintain optimal performance, while monitoring systems can quickly identify any weather-related issues that may arise during wet periods. Overall, Guarda Mor offers excellent conditions for solar PV installations, with the tropical climate providing consistent energy generation potential throughout the year when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

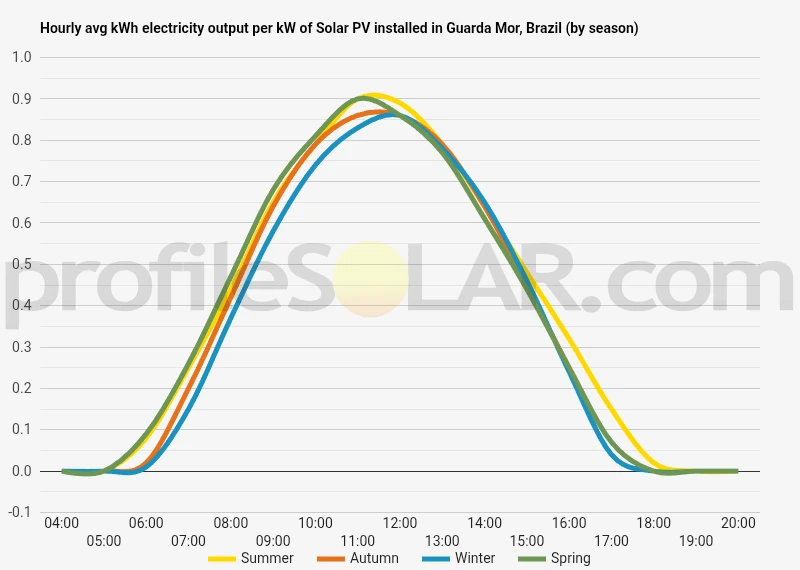

Solar output per kW of installed solar PV by season in Guarda Mor

Seasonal solar PV output for Latitude: -17.7639, Longitude: -47.1478 (Guarda Mor, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Guarda Mor, Brazil

To maximize your solar PV system's energy output in Guarda Mor, Brazil (Lat/Long -17.7639, -47.1478) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Guarda Mor, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Guarda Mor, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	24° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Guarda Mor, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Guarda Mor, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Guarda Mor, Brazil

Topographical Features of the Guarda Mor Region

The area surrounding Guarda Mor in Brazil sits within the expansive Cerrado biome, characterized by a predominantly flat to gently rolling landscape typical of the Brazilian Central Plateau. This region features broad tablelands known as chapadas, which are elevated plains with relatively uniform elevations that stretch across vast distances. The terrain consists mainly of sedimentary formations that have created stable, level surfaces ideal for large-scale development projects. The local topography exhibits minimal elevation changes, with gentle undulations that rarely present significant slopes or steep gradients. These characteristics make the region particularly accessible for construction and infrastructure development. The landscape is punctuated by occasional shallow valleys and seasonal watercourses that drain toward larger river systems, but these features do not dramatically alter the overall flat nature of the terrain.

Soil and Ground Conditions

The underlying geology consists primarily of sandstone and other sedimentary rocks that provide stable foundations for heavy installations. The soils in this region are typically well-drained lateritic formations that have developed under the tropical savanna climate conditions. These soils, while not particularly fertile for intensive agriculture, offer excellent load-bearing capacity and minimal subsidence concerns for industrial applications. The area experiences distinct wet and dry seasons, but the well-draining nature of the local soils means that waterlogging is rarely a concern. The stable ground conditions and predictable seasonal patterns make this region highly suitable for long-term infrastructure investments.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated chapada areas that dominate the landscape around Guarda Mor. These tablelands offer several key advantages including consistent elevation levels that minimize shading concerns between solar panel arrays, stable geological conditions that reduce foundation costs, and excellent accessibility for construction vehicles and ongoing maintenance operations. The flat to gently sloping terrain allows for optimal panel orientation and spacing without the need for extensive grading or earthwork. This natural topography significantly reduces site preparation costs while maximizing the efficient use of available land area. The open nature of the landscape also provides excellent wind flow patterns that help maintain optimal operating temperatures for solar equipment. Areas slightly elevated above the surrounding terrain would be particularly advantageous as they offer natural drainage benefits and reduced risk of flooding during the rainy season. The consistent topographical features across large expanses mean that solar installations can be designed with standardized mounting systems and uniform panel layouts, creating economies of scale in both construction and maintenance operations. The region's accessibility via existing road networks, combined with the stable ground conditions and minimal topographical obstacles, makes it an ideal candidate for utility-scale solar development projects that require extensive land areas and reliable infrastructure support.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
