Solar Energy Potential in Heliodora, Minas Gerais, Brazil

Heliodora, Minas Gerais, Brazil, located at latitude -22.0416 and longitude -45.5443, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasons characterized more by wet and dry periods than dramatic temperature shifts. The solar production data reveals a steady pattern across all seasons, with some natural variation. During summer months, solar panels can generate an impressive 6.26 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.75 kWh/day, while autumn yields 5.38 kWh/day. Winter shows the lowest output at 4.82 kWh/day per kW installed, but this figure remains substantial compared to many non-tropical locations.

Optimal Panel Positioning

For fixed solar panel installations in Heliodora, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the entire year, accounting for the Earth's elliptical orbit and Heliodora's position in the Southern Hemisphere.

Seasonal Considerations

The most productive period for solar generation in Heliodora occurs during summer (December to February), when panels can produce nearly 30% more energy than during winter months (June to August). Spring (September to November) represents the second-best season for solar production, making the September to February period particularly advantageous for solar energy generation.

Environmental and Weather Factors

Several environmental factors may impact solar production in Heliodora:

• Rainfall patterns: The region experiences a rainy season that typically coincides with summer months. While this is also the period with highest solar potential, heavy cloud cover during storms can temporarily reduce output.
• Dust and pollen: Agricultural activities in surrounding areas may generate airborne particles that accumulate on panels, particularly during dry periods.
• Humidity: High humidity levels common in tropical regions can create condensation on panels in early morning hours.

Preventative Measures

To maximize solar production despite these challenges, several installation strategies are recommended:

• Implement a regular cleaning schedule, particularly before and after the rainy season
• Install panels with self-cleaning properties or hydrophobic coatings
• Consider a slight adjustment to the standard 21-degree tilt if the installation site has specific microclimate conditions
• Use quality inverters with high efficiency ratings to maximize conversion from DC to AC power
• Ensure adequate ventilation behind panels to minimize efficiency losses from heat buildup

With proper installation and maintenance, Heliodora's consistent solar radiation throughout the year makes it a highly suitable location for solar PV systems, with year-round energy production that remains relatively stable even during the less productive winter months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

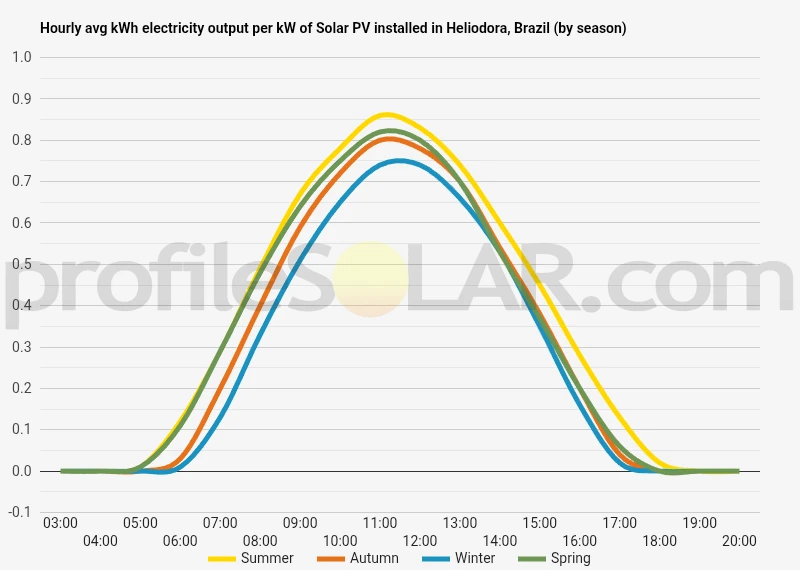

Solar output per kW of installed solar PV by season in Heliodora

Seasonal solar PV output for Latitude: -22.0416, Longitude: -45.5443 (Heliodora, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Heliodora, Brazil

To maximize your solar PV system's energy output in Heliodora, Brazil (Lat/Long -22.0416, -45.5443) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Heliodora, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Heliodora, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Heliodora, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Heliodora, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Heliodora, Brazil

The region around Heliodora, Brazil is characterized by undulating topography typical of the southern portion of Minas Gerais state. Situated in the Serra da Mantiqueira mountain range, Heliodora's landscape features gentle to moderate hills interspersed with valleys and small plateaus. The elevation generally ranges between 800 to 1,200 meters above sea level, creating a varied terrain throughout the area. The topographical profile shows a mixture of rolling hillsides with some steeper slopes, particularly toward the eastern portions where the terrain becomes more pronounced as it transitions toward the higher elevations of the Serra da Mantiqueira proper. Several small rivers and streams cut through the landscape, creating natural drainage systems and occasional floodplains in lower-lying areas.

Vegetation and Land Use

The natural vegetation consists primarily of Atlantic Forest remnants, though much of the original forest cover has been converted to agricultural use, particularly coffee plantations and pastureland for dairy cattle. The combination of elevation, moderate slopes, and cleared agricultural areas creates a mosaic pattern across the landscape.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Heliodora would be the gently sloping hillsides and plateau regions with southern Minas Gerais' characteristic rolling topography. Specifically, the following areas present favorable conditions: The modest plateaus to the west and southwest of Heliodora offer relatively flat terrain with good solar exposure. These areas, often already cleared for agricultural purposes, provide sufficient space for larger installations while minimizing the need for extensive grading or earthwork. The north-facing slopes (remember, in the Southern Hemisphere, north-facing slopes receive more direct sunlight) present throughout the region offer enhanced solar radiation reception. These locations, particularly those with inclines between 5-15 degrees, can optimize energy capture without requiring significant terrain modification. Areas along the higher elevation ridgelines, where cloud cover is typically reduced compared to valley locations, would also be advantageous for solar development. These locations often experience less fog and morning mist that can be common in the lower valleys of the region. The gently rolling farmland between Heliodora and neighboring municipalities like Natércia and Conceição das Pedras contains numerous suitable sites where the topography has already been somewhat modified for agricultural purposes, potentially reducing site preparation costs. It's worth noting that while the region's varied topography presents some challenges for very large, contiguous solar installations, it also offers the advantage of multiple smaller optimal sites that could be developed as part of a distributed generation approach, potentially reducing transmission infrastructure requirements. Areas to avoid would include the steeper eastern slopes, riparian zones along waterways, and any remaining forest fragments that hold ecological importance within this Atlantic Forest biome region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
