Ibarama, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal fluctuations in solar energy production that are important to consider when planning a solar installation.

Seasonal Solar Production

Solar energy generation in Ibarama follows a predictable seasonal pattern. Summer months deliver the highest energy output at 7.55kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.95kWh/day, while autumn yields a moderate 4.77kWh/day. Winter shows the lowest production at just 3.37kWh/day per kilowatt installed.

The substantial difference between summer and winter production (more than double) indicates that this location has pronounced seasonal variations. This means that system sizing needs to account for these fluctuations, especially if consistent year-round power is required.

Optimal Panel Installation

For fixed solar panel installations in Ibarama, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 25 degrees facing North. This angle optimizes the annual solar harvest by balancing seasonal variations and the sun's changing position throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Ibarama:

• Rainfall and humidity: The subtropical climate may bring periods of extended cloud cover and rain, particularly during transitional seasons, reducing solar efficiency.
• Temperature variations: High summer temperatures can slightly reduce panel efficiency, while cooler winter temperatures might improve efficiency but with less available sunlight.
• Potential for dust and pollen: Agricultural activities in the region may generate airborne particles that could accumulate on panels.

Preventative Measures

To maximize solar production in Ibarama, Rio Grande do Sul, consider implementing these preventative measures:

• Install panels with self-cleaning properties or implement a regular cleaning schedule, especially during dry, dusty periods.
• Consider using microinverters or power optimizers to minimize the impact of partial shading.
• Select panels with good temperature coefficients that perform well in the higher summer temperatures of this subtropical region.
• If budget allows, consider a tracking system to follow the sun's path, which could increase energy harvest by 20-30% compared to fixed installations.
• Ensure adequate ventilation beneath panels to reduce operating temperatures and maintain efficiency.

While Ibarama isn't ideal for consistent year-round solar production due to its winter performance, the excellent summer and good spring production make it a viable location for solar PV, especially if systems are properly sized to account for winter shortfalls.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

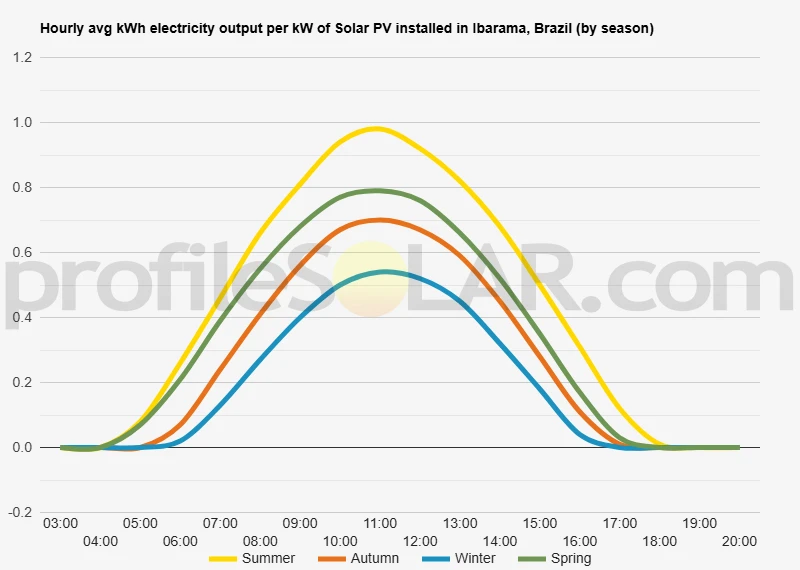

Solar output per kW of installed solar PV by season in Ibarama

Seasonal solar PV output for Latitude: -29.4088, Longitude: -53.1825 (Ibarama, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Ibarama, Brazil

To maximize your solar PV system's energy output in Ibarama, Brazil (Lat/Long -29.4088, -53.1825) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibarama, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibarama, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibarama, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibarama, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibarama, Brazil

The region surrounding Ibarama, Brazil is characterized by a diverse and undulating topography. Located in the southern state of Rio Grande do Sul, Ibarama sits within a transitional zone between the southern Brazilian highlands and the lower plains that extend toward Uruguay and Argentina. The landscape features rolling hills, modest plateaus, and numerous small valleys carved by the network of rivers and streams that flow through the area.

Topographical Features

Ibarama's terrain is part of what geographers call the Southern Brazilian Plateau, which gradually slopes downward from east to west. The eastern portions near Ibarama have more pronounced hills and ridges, with elevations typically ranging between 200 and 500 meters above sea level. These hills are often separated by narrow valleys where small tributaries of the Jacuí River system flow. The soil composition in this region is predominantly red-yellow latosols, which have developed over basaltic bedrock - a legacy of ancient volcanic activity in the region. This geological foundation creates a moderately rugged terrain with occasional exposed rock formations visible on steeper slopes. Vegetation naturally transitions between Atlantic Forest remnants in more protected valleys and grassland areas (known locally as "campos") on hilltops and plateaus. However, much of the native vegetation has been modified through agricultural activities, with significant portions now dedicated to farming.

Potential Solar PV Development Areas

For large-scale solar photovoltaic development, several areas in the vicinity of Ibarama offer promising conditions. The most suitable locations would be found on the elevated plateaus and gentler hilltops to the west and southwest of Ibarama, where: The terrain is less steep and more consistent, allowing for easier construction and more uniform panel placement. These areas typically have slopes of less than 10 degrees, which is generally considered acceptable for large solar installations without requiring excessive grading. The western plateaus benefit from reduced morning fog compared to the eastern valleys, providing more consistent solar exposure throughout the day. These higher elevations also experience fewer shadows from surrounding terrain features. The grassland areas that dominate these plateaus require less clearing than forested regions, reducing both environmental impact and development costs. These open spaces typically offer better access for construction equipment and maintenance vehicles. Several secondary roads connect these plateau regions to the main highways, offering potential for infrastructure development without excessive new construction. The relatively flat terrain of these plateaus would also minimize the need for extensive earthworks during site preparation. Areas to avoid would include the steeper eastern slopes and narrow river valleys, where shadows from surrounding hills would significantly reduce solar exposure. Additionally, the floodplains along the Jacuí River and its tributaries should be excluded due to periodic flooding risks and higher agricultural value. The soil stability on the plateaus is generally good, providing solid foundations for mounting systems without excessive risk of erosion or subsidence. This contrasts with some of the steeper slopes where soil stability could present challenges for large infrastructure projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
