Ibatiba, Espírito Santo, Brazil presents a reasonably good location for year-round solar PV energy generation, though it's not among the most exceptional solar sites. Located in the tropics at coordinates -20.2731, -41.5522, this region benefits from relatively consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than dramatic changes in daylight hours.

Seasonal Solar Performance

The solar energy output varies moderately across seasons, with summer delivering the strongest performance at 6.12 kWh per day per kW of installed capacity. Spring follows as the second-best season at 5.13 kWh/day, while autumn produces 5.50 kWh/day. Winter shows the lowest output at 4.56 kWh/day per kW, though this reduction is relatively modest compared to higher latitude locations. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the varying solar irradiance patterns at this specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Ibatiba:

• Tropical rainfall patterns: Heavy rains during wet seasons can reduce solar irradiance and create cloud cover that diminishes panel efficiency
• High humidity levels: Persistent moisture can lead to panel degradation and reduced electrical performance over time
• Dust and debris accumulation: Dry periods may result in dust buildup on panels, blocking sunlight and reducing output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial. Proper panel spacing and mounting systems that allow adequate airflow help combat humidity-related issues and prevent overheating. Installing panels with appropriate drainage and self-cleaning capabilities reduces the impact of heavy rains and dust accumulation. Regular maintenance schedules become particularly important in this climate, including periodic cleaning during dry seasons and vegetation management around the installation site. Using high-quality mounting hardware designed for tropical conditions helps ensure long-term system reliability and performance. Overall, while Ibatiba faces some typical tropical climate challenges for solar installations, these can be effectively managed through proper design and maintenance practices, making it a viable location for solar PV systems.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

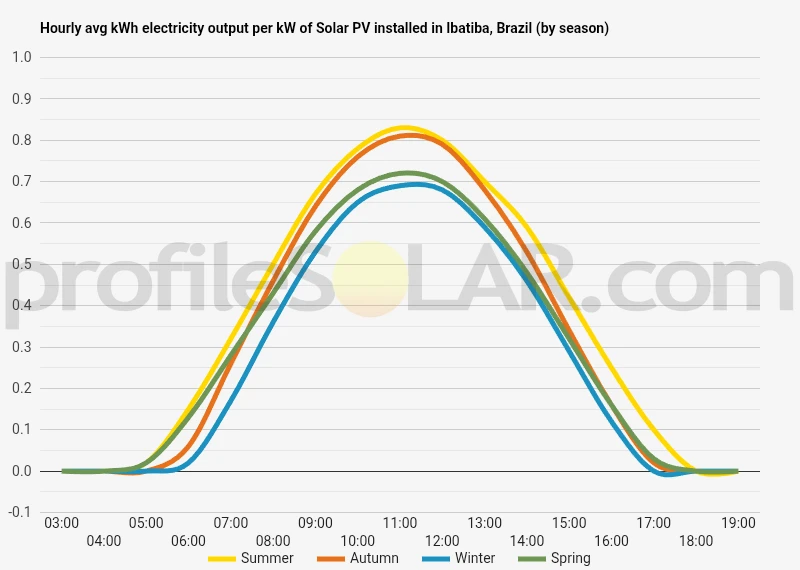

Solar output per kW of installed solar PV by season in Ibatiba

Seasonal solar PV output for Latitude: -20.2731, Longitude: -41.5522 (Ibatiba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Ibatiba, Brazil

To maximize your solar PV system's energy output in Ibatiba, Brazil (Lat/Long -20.2731, -41.5522) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibatiba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibatiba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibatiba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibatiba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibatiba, Brazil

Topographical Features of Ibatiba Region

Ibatiba sits within the mountainous interior of Espírito Santo state in southeastern Brazil, positioned in the Caparaó mountain range region. The town itself is located at an elevation of approximately 800 meters above sea level, nestled among rolling hills and steep-sided valleys that characterize this part of the Brazilian Highlands. The landscape features a complex mix of ridgelines, escarpments, and intermontane valleys carved by centuries of erosion from seasonal rainfall patterns.

The surrounding terrain exhibits significant elevation changes, with peaks rising to over 1,200 meters in some areas while valleys descend to around 600 meters. This creates a distinctly undulating topography where flat expanses are relatively uncommon. The region's geology consists primarily of crystalline rocks from the Precambrian era, including granite and gneiss formations that have weathered into the characteristic rounded hills and steep slopes visible throughout the area.

Dense Atlantic Forest remnants still cover many of the steeper slopes and valley bottoms, while agricultural activities have cleared portions of the gentler terrain for coffee cultivation and pastureland. The natural drainage patterns flow generally eastward toward the Atlantic Ocean, creating numerous small watersheds with seasonal streams that cut through the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader ridgetops and plateau areas that exist between the steeper valley systems. These elevated areas typically offer more consistent terrain with gentler slopes that require minimal grading for solar panel installation. The higher elevations also provide better exposure to prevailing winds, which helps maintain optimal operating temperatures for photovoltaic equipment.

Areas to the north and northwest of Ibatiba present particularly favorable conditions, where the topography transitions toward slightly less rugged terrain with more extensive flat to gently rolling surfaces. These locations would allow for larger contiguous solar arrays while minimizing the infrastructure costs associated with steep terrain development. The reduced tree cover in areas converted to agriculture also means fewer obstacles for solar development.

The southeastern slopes and ridgelines offer another promising zone for solar development, as they tend to have good southern exposure and are often already partially cleared for agricultural use. However, developers would need to carefully evaluate slope angles and soil stability in these areas, as some locations may require terracing or other engineering solutions to create suitable installation surfaces.

Valley floors should generally be avoided for large-scale solar installations due to their tendency toward seasonal flooding, higher humidity levels, and reduced wind circulation. Additionally, these areas often contain the richest agricultural soils and may face greater environmental protection restrictions due to their role in local watershed systems.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
