Ibema, Paraná, Brazil presents a moderately good location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuations. Summer delivers the strongest performance at 7.02kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best period with 6.11kWh daily output per kW, while autumn drops to 5.30kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.96kWh per day per kW of installed capacity. This represents a substantial 44% decrease compared to summer output, which solar system owners should factor into their energy planning and potentially consider battery storage or grid-tied systems to manage this seasonal shortfall.

Optimal Panel Configuration

For maximum year-round energy production at Ibema, Paraná, fixed solar panels should be tilted at 22 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this region could impact solar panel performance:

• High humidity levels typical of subtropical climates can reduce panel efficiency and promote corrosion of electrical components
• Frequent rainfall during certain seasons may cause temporary output reductions and require regular panel cleaning
• Potential for severe weather events including strong winds and hail that could damage installations
• Dense vegetation growth in the subtropical environment may create shading issues if not properly managed

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Use marine-grade wiring and corrosion-resistant mounting hardware to withstand high humidity
• Install panels with adequate spacing for air circulation to reduce moisture buildup
• Design mounting systems to withstand local wind loads and consider impact-resistant panel glass
• Plan regular maintenance schedules for cleaning panels after heavy rain periods
• Carefully survey and trim vegetation to prevent shading, with ongoing landscape management
• Consider micro-inverters or power optimizers to minimize impact when individual panels are affected by shading or debris

Overall, while Ibema offers decent solar potential, the significant seasonal variation and subtropical environmental challenges require careful system design and maintenance planning to achieve optimal long-term performance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

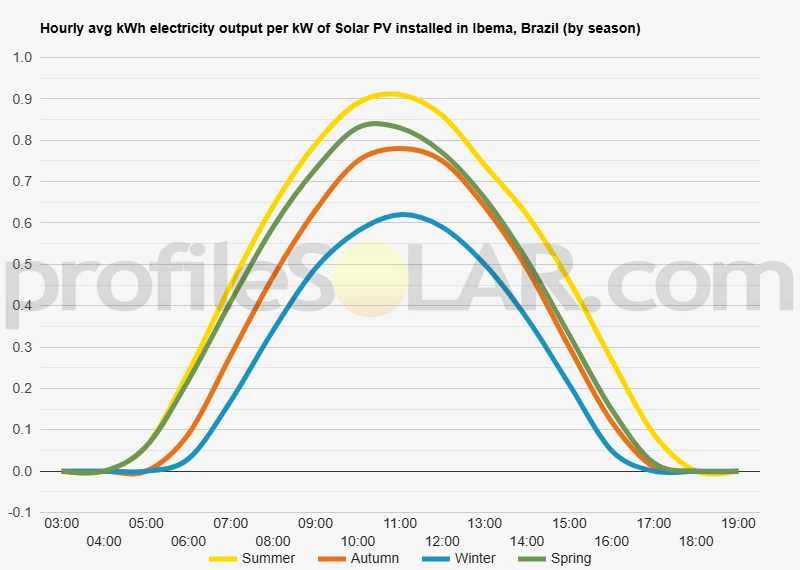

Solar output per kW of installed solar PV by season in Ibema

Seasonal solar PV output for Latitude: -25.1624, Longitude: -53.0098 (Ibema, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Ibema, Brazil

To maximize your solar PV system's energy output in Ibema, Brazil (Lat/Long -25.1624, -53.0098) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibema, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibema, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibema, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibema, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibema, Brazil

Topographical Features of the Ibema Region

Ibema is located in the western region of Paraná state in southern Brazil, positioned within the Paraná Plateau. This area is characterized by gently rolling hills and relatively flat terrain typical of the broader plateau region. The landscape consists primarily of sedimentary rock formations that have been weathered over millions of years, creating a topography that is generally conducive to development and agricultural activities.

The elevation around Ibema typically ranges between 400 to 600 meters above sea level, with gradual undulations rather than steep slopes or dramatic elevation changes. The terrain is part of the larger Paraná Basin, which extends across much of southern Brazil. This geological foundation has resulted in well-drained soils and stable ground conditions that are favorable for various types of infrastructure development.

The regional landscape is predominantly agricultural, with extensive areas that have been cleared and leveled for farming operations. These cleared areas, combined with the naturally gentle topography, create numerous potential sites with minimal natural obstructions. The absence of significant forest cover in many areas means reduced shading concerns and clearer access to available sunlight throughout the day.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ibema would be the expansive agricultural plains that extend to the north and east of the municipality. These areas offer several key advantages including relatively flat terrain that minimizes the need for extensive grading or earthwork, which can significantly reduce installation costs and complexity.

The agricultural fields that have been in continuous cultivation present particularly attractive opportunities, as the land has already been cleared and leveled. Many of these areas feature gentle slopes of less than 5 degrees, which is considered ideal for solar panel installation as it allows for proper drainage while maintaining optimal panel positioning.

Areas to the southwest of Ibema also present good potential, where the terrain remains relatively flat but transitions into slightly more elevated positions. These locations can offer advantages in terms of drainage and potentially reduced fog formation during certain seasons. The stable geological conditions throughout the region mean that foundation requirements for solar mounting systems would be straightforward in most locations.

The proximity to existing agricultural infrastructure, including access roads and electrical connections, makes many of these rural areas particularly practical for solar development. The established road network that serves the farming community would facilitate the transportation of equipment and materials needed for large-scale solar installations, while existing electrical infrastructure could potentially be upgraded to accommodate power transmission from solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
