Ibiapina, Ceará, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -3.9365, -40.9313, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than significant variations in solar availability.

Solar Energy Production Performance

The solar energy output at Ibiapina shows impressive consistency across all seasons, with production actually increasing during the cooler months. Summer generates 5.61 kWh per day per kW of installed solar capacity, while autumn produces slightly more at 5.73 kWh/day. Winter performance jumps to 6.17 kWh/day, and spring delivers the highest output at 6.82 kWh/day per kW of installed capacity. This seasonal pattern is typical for tropical locations, where cooler temperatures during winter and spring months improve solar panel efficiency, while clearer skies during drier periods reduce atmospheric interference with sunlight.

Optimal Installation Configuration

For maximum year-round solar production at Ibiapina, Ceará, solar panels should be installed at a fixed tilt angle of 4 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining daily optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location:

• Seasonal rainfall: The wet season brings increased cloud cover and precipitation that can reduce solar irradiance and create soiling issues on panel surfaces
• High humidity: Tropical humidity levels can lead to moisture-related degradation of electrical components and connections
• Dust and debris accumulation: During dry periods, dust buildup on panels can significantly reduce energy output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Regular cleaning schedules become essential, particularly during and after the dry season when dust accumulation peaks. Installing panels with adequate spacing and ventilation helps combat humidity-related issues by promoting air circulation and reducing moisture buildup around electrical components. Proper drainage systems should be incorporated into the installation design to handle heavy tropical rainfall and prevent water pooling around equipment. Using marine-grade electrical components and connections provides better resistance to the high-humidity environment. Vegetation management requires ongoing attention, with regular trimming of nearby trees and bushes to prevent shading. Installing panels at sufficient height above ground level helps avoid interference from rapidly growing tropical plants. Despite these considerations, Ibiapina's consistent high solar output throughout the year makes it an highly suitable location for solar energy generation, with proper installation and maintenance practices ensuring optimal long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

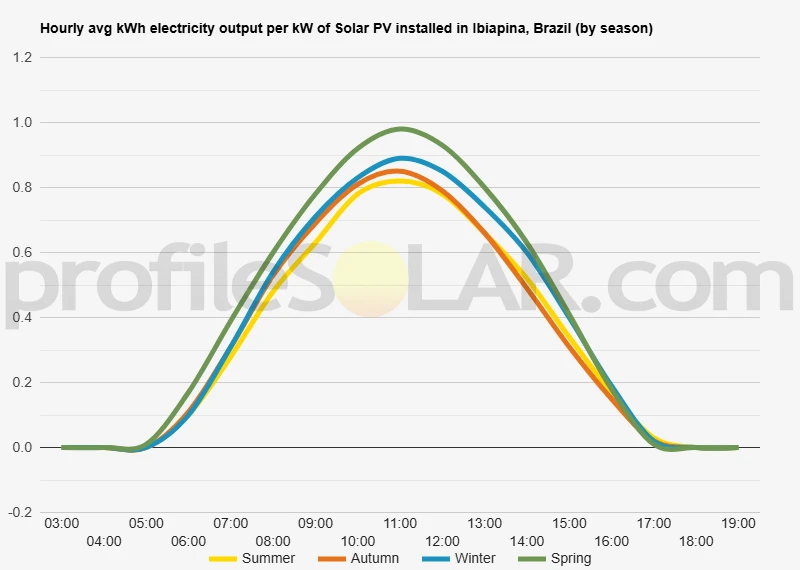

Solar output per kW of installed solar PV by season in Ibiapina

Seasonal solar PV output for Latitude: -3.9365, Longitude: -40.9313 (Ibiapina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Ibiapina, Brazil

To maximize your solar PV system's energy output in Ibiapina, Brazil (Lat/Long -3.9365, -40.9313) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibiapina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibiapina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibiapina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibiapina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibiapina, Brazil

Topographical Features of Ibiapina Region

The Ibiapina region sits within the distinctive landscape of the Ibiapaba Plateau, a prominent geological formation that rises dramatically from the surrounding lowlands in the border area between Ceará and Piauí states. This elevated plateau creates a striking contrast with the semi-arid plains that characterize much of northeastern Brazil, offering cooler temperatures and different vegetation patterns compared to the surrounding areas.

The terrain around Ibiapina is characterized by steep escarpments and rolling hills, with elevations reaching approximately 800 to 900 meters above sea level. These highlands form part of the Serra da Ibiapaba mountain range, which acts as a natural barrier influencing local weather patterns and creating microclimates throughout the region. The topography includes numerous valleys and ridgelines, creating a varied landscape of peaks and depressions.

The geological foundation consists primarily of sedimentary rock formations, with areas of exposed bedrock visible along the steeper slopes and cliff faces. The soil composition varies across the region, with some areas featuring rocky outcrops while others contain more fertile soils that support agricultural activities. Water drainage patterns follow the natural contours, with several small streams and seasonal watercourses flowing through the valleys.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations, the most suitable areas around Ibiapina would be the relatively flat or gently sloping plateaus that exist between the steeper escarpments. These elevated plains offer several advantages, including stable ground conditions and reduced shading from surrounding terrain features. The higher elevation areas also benefit from clearer atmospheric conditions and consistent wind patterns that help maintain optimal panel temperatures.

The eastern and southeastern portions of the plateau present particularly favorable conditions, where the terrain levels out into broad, open expanses with minimal vegetation cover. These areas typically feature gentle slopes that can accommodate large arrays while allowing for proper drainage and access road construction. The reduced tree cover in these zones minimizes the need for extensive land clearing operations.

Areas closer to existing infrastructure, such as the BR-222 highway corridor, would be advantageous for solar development due to easier access for construction equipment and proximity to electrical transmission lines. The flatter sections along this transportation route offer practical benefits for project logistics while maintaining the favorable topographical characteristics needed for solar installations.

It would be advisable to avoid the steeper escarpment areas and deeply incised valleys, as these locations present challenges for equipment installation and maintenance access. Additionally, areas with significant rock outcroppings or unstable soil conditions would require more extensive site preparation, making them less economically viable for large-scale development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
