Ibicoara's Solar Energy Potential

Ibicoara, Bahia, Brazil offers a promising location for solar energy generation, with relatively consistent solar energy production throughout the year. This tropical location at latitude -13.3741 and longitude -41.3438 experiences seasonal variations that are more defined by wet and dry periods than dramatic temperature shifts. The solar productivity at this location shows interesting seasonal patterns. During spring, solar panels generate their highest output at 6.38kWh per day for each kilowatt of installed capacity. Autumn follows closely with 6.20kWh/day, while summer produces 6.06kWh/day. Winter represents the least productive season, but still delivers a respectable 5.26kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Ibicoara, Bahia, the ideal tilt angle is 13 degrees facing North. This specific angle maximizes year-round energy production by optimizing the panels' exposure to the sun's path across the sky throughout the year. This carefully calculated angle accounts for Ibicoara's position in the Southern Hemisphere and the seasonal variations in the sun's position.

Environmental Considerations

Several environmental factors could potentially impact solar energy production in Ibicoara:

• Seasonal rainfall patterns may reduce solar efficiency during the wet season (typically November to March), when cloud cover is more prevalent
• Dust accumulation from the region's semi-arid conditions could gradually decrease panel efficiency if not regularly maintained
• High temperatures during summer months might slightly reduce panel efficiency, as solar panels typically operate less efficiently above 25°C

Preventative Measures

To maximize solar energy production in Ibicoara, Bahia, several preventative measures should be considered during installation and maintenance: Regular panel cleaning schedules should be implemented, particularly during the dry season when dust accumulation is highest. Installing panels with sufficient elevation from the ground can minimize dust collection and potential shading from vegetation. Considering the region's temperature patterns, ensuring adequate airflow beneath the panels through proper mounting systems can help mitigate efficiency losses from high temperatures. Additionally, using high-quality panels with better temperature coefficients will provide more consistent performance in Ibicoara's climate. Finally, incorporating a slight adjustment to the standard 13-degree tilt might be beneficial depending on whether the installation prioritizes dry season production (when skies are clearer) over wet season output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

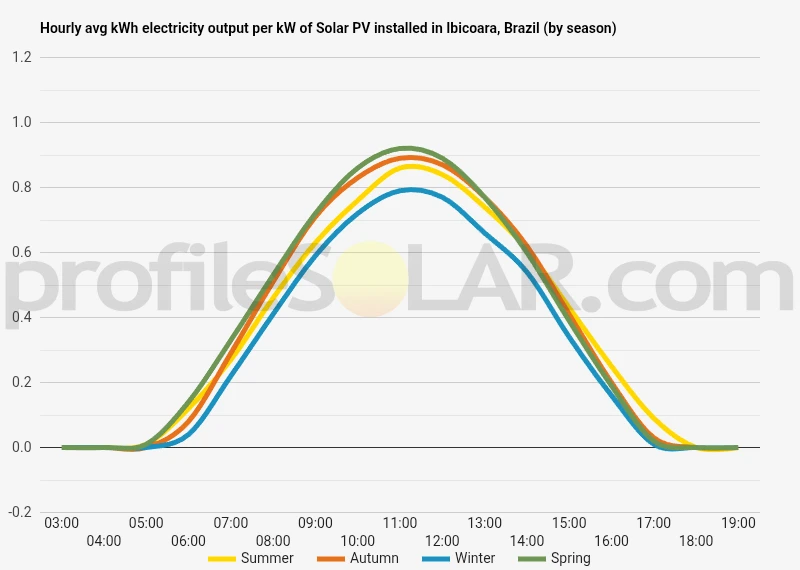

Solar output per kW of installed solar PV by season in Ibicoara

Seasonal solar PV output for Latitude: -13.3741, Longitude: -41.3438 (Ibicoara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Ibicoara, Brazil

To maximize your solar PV system's energy output in Ibicoara, Brazil (Lat/Long -13.3741, -41.3438) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibicoara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibicoara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibicoara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibicoara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibicoara, Brazil

The landscape surrounding Ibicoara, Brazil is characterized by dramatic topographical features that make it visually striking and ecologically diverse. Located in the Chapada Diamantina region of Bahia state, Ibicoara sits at the edge of a vast plateau that forms part of the Espinhaço Mountain Range. The area exhibits significant elevation changes, with the town itself situated at approximately 1,200 meters above sea level.

Distinctive Topographical Features

The region is distinguished by its impressive table mountains, deep valleys, and extensive plateaus. These plateaus, locally known as "chapadas," extend for considerable distances and feature relatively flat surfaces at high elevations. The edges of these plateaus often drop dramatically, creating striking escarpments and cliff faces that can descend hundreds of meters. Numerous waterfalls cascade from these plateau edges, including some of Brazil's most spectacular falls. The underlying geology consists primarily of sandstone and quartzite formations, which have been shaped over millions of years by erosion into the current landscape of mesas, canyons, and distinctive rock formations. The vegetation varies with elevation and exposure, transitioning between different ecosystems including campo rupestre (rocky highland fields) on the plateaus, patches of highland savanna, and more humid forest types in the valleys and along watercourses.

Solar PV Potential Areas

For large-scale solar photovoltaic development, the extensive plateau areas surrounding Ibicoara present particularly favorable conditions. These elevated flat surfaces offer several advantages for solar energy production: The higher plateau areas experience less atmospheric interference and typically have clearer skies than lower elevations. The flat terrain of the chapadas minimizes shading issues and simplifies installation logistics for large arrays of solar panels. Additionally, many of these plateau areas have sparse vegetation of the campo rupestre type, which means less land clearing would be required for development. Specifically, the areas extending north and northeast of Ibicoara on the main plateau surface would be most suitable for large-scale solar installations. These locations combine favorable topography with proximity to existing infrastructure. The relatively level terrain reduces construction costs and simplifies maintenance access. Areas to avoid would include the steep escarpments and valley systems, which present challenges for construction and would involve greater environmental impacts. The western portions of the region, which transition into more densely vegetated zones, would also be less ideal due to increased clearing requirements and potential ecological disruption. The plateaus also benefit from minimal flood risk due to their elevation and natural drainage patterns, providing security for long-term infrastructure investments. However, any development would need to consider the region's status as an important ecological and hydrological zone, with appropriate environmental assessments and mitigation measures.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
