Ibiraci, Minas Gerais, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -20.3996, -47.1402, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Ibiraci demonstrates strong year-round performance. Summer delivers the highest production at 6.70 kWh per day per installed kilowatt, making it the peak season for solar generation. Spring follows closely with 6.22 kWh/day per kW, while autumn provides 5.80 kWh/day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 5.23 kWh/day per kW. This seasonal variation shows only a 28% difference between the best and worst performing seasons, indicating remarkably consistent solar potential throughout the year. The dry season months typically align with the higher production periods, while the wet season corresponds with slightly reduced but still substantial output. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle has been calculated to maximize total annual solar production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production in Ibiraci, Minas Gerais, though the location remains highly suitable for solar installations. The most significant concern is the tropical wet season, which brings increased cloud cover and frequent rainfall. During these periods, solar panels may experience reduced efficiency due to cloud obstruction and accumulated moisture or debris on panel surfaces. However, rainfall also provides a natural cleaning effect that helps maintain panel efficiency over time. High humidity levels characteristic of tropical climates can affect electrical components and connections if not properly sealed and protected. The combination of heat and moisture creates conditions that could lead to corrosion or electrical issues in poorly designed systems.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production in Ibiraci's tropical environment:

• Install panels with adequate ventilation space underneath to prevent overheating and allow air circulation
• Use high-quality, weather-resistant mounting systems and electrical components rated for tropical conditions
• Ensure proper drainage around installation areas to prevent water accumulation
• Apply protective coatings to electrical connections and use sealed junction boxes
• Design systems with easy access for regular cleaning and maintenance

Regular maintenance becomes particularly important in this climate. Establishing a routine cleaning schedule, especially during and after the wet season, will help maintain optimal panel efficiency. Professional inspections should focus on checking seals, connections, and overall system integrity to prevent moisture-related issues. Despite these considerations, Ibiraci's consistent solar resource and relatively minor seasonal variation make it an excellent location for solar PV installations. With proper design and maintenance practices, solar systems in this location can achieve reliable, high-performance energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

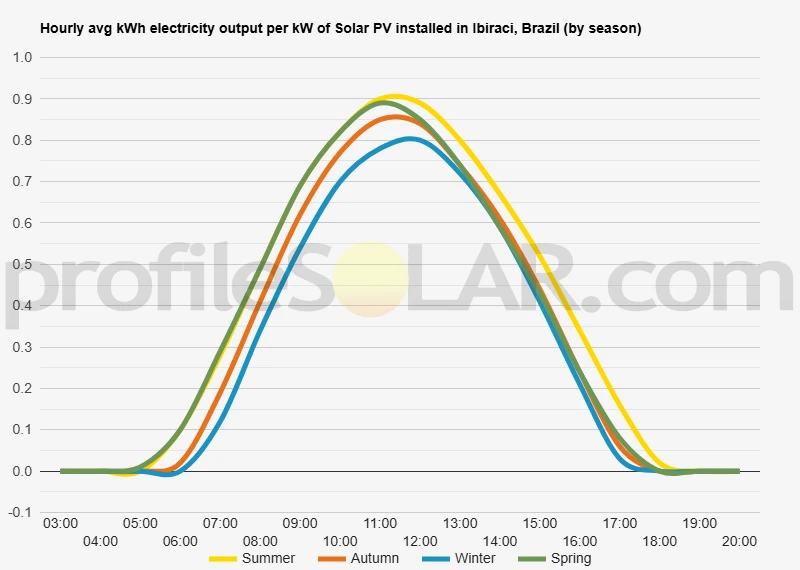

Solar output per kW of installed solar PV by season in Ibiraci

Seasonal solar PV output for Latitude: -20.3996, Longitude: -47.1402 (Ibiraci, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Ibiraci, Brazil

To maximize your solar PV system's energy output in Ibiraci, Brazil (Lat/Long -20.3996, -47.1402) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibiraci, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibiraci, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibiraci, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibiraci, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibiraci, Brazil

Topographical Features of the Ibiraci Region

The municipality of Ibiraci sits within the southeastern region of Minas Gerais state in Brazil, positioned on the Brazilian Highlands plateau. This area forms part of the broader Mantiqueira mountain system, characterized by rolling hills and relatively gentle slopes that extend across much of the region. The terrain around Ibiraci typically ranges from 800 to 1,200 meters above sea level, creating a landscape of undulating topography with occasional steeper inclines.

The local geography features a mix of agricultural lands, pasturelands, and scattered woodland areas. The region's drainage patterns are influenced by several small rivers and streams that flow through valleys carved into the highland terrain. These waterways create natural corridors of lower elevation that contrast with the surrounding elevated areas. The soil composition varies throughout the region, with some areas featuring the characteristic red earth common to much of Minas Gerais, while other zones contain different soil types depending on local geological conditions.

Climate patterns in this highland region are influenced by the elevation, creating a subtropical highland climate with distinct wet and dry seasons. The topography plays a significant role in local weather patterns, with higher elevations experiencing slightly cooler temperatures and different precipitation patterns compared to lower-lying areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ibiraci would be found on the gentler slopes and plateau areas that characterize much of the surrounding landscape. These areas offer several advantages for solar development, including relatively stable ground conditions and good accessibility for construction and maintenance activities. The elevated nature of the terrain provides natural drainage, which helps prevent water accumulation that could interfere with solar panel installations.

Areas with southern and southeastern exposures would be particularly favorable, as these orientations maximize solar exposure throughout the day in the Southern Hemisphere. The rolling hill terrain offers numerous sites where large solar arrays could be positioned to take advantage of optimal sun angles while minimizing shading from adjacent topographical features.

Former agricultural lands and pasturelands present excellent opportunities for solar development, as these areas typically have been cleared of vegetation and have established access routes. The relatively gentle slopes common in the region mean that extensive grading or terracing would likely not be necessary for most potential solar sites, reducing development costs and environmental impact.

Areas to avoid would include the steeper hillsides and narrow valley bottoms where water drainage occurs. These locations present challenges for construction and may experience more variable solar exposure due to shading from surrounding terrain features. The most promising zones are the broader plateau areas and gentle hillsides that offer both good solar exposure and practical access for large-scale development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
