Ibiraiaras, Rio Grande do Sul, Brazil offers a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Southern Sub-tropical climate. Located at coordinates -28.3848, -51.629, this region experiences notable differences in solar production throughout the year.

Seasonal Solar Performance

The solar energy output varies considerably across the seasons. Summer delivers the strongest performance at 7.15 kWh per day per kW of installed capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.90 kWh per day per kW, while autumn produces 4.83 kWh per day per kW. Winter presents the most challenging conditions, generating only 3.55 kWh per day per kW of installed solar capacity. For maximum year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 25 degrees toward the North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Ibiraiaras. The Southern Sub-tropical climate brings periods of increased cloud cover and precipitation, particularly during autumn and winter months, which correlates with the reduced solar output during these seasons. The region may also experience occasional severe weather events including hailstorms and strong winds that could damage solar installations. Humidity levels in subtropical climates can lead to increased dust and debris accumulation on solar panels, reducing their efficiency over time. Additionally, the seasonal variation in solar angles means that fixed installations may not capture optimal sunlight during all periods of the year.

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with robust mounting systems designed to withstand high winds and potential hail damage
• Implement regular cleaning schedules to remove dust, pollen, and debris that accumulate more readily in humid conditions
• Consider installing panels with anti-reflective coatings and self-cleaning surfaces to maintain efficiency
• Ensure proper drainage around installations to prevent water pooling during heavy rainfall periods
• Use high-quality inverters with weather protection suitable for subtropical conditions

Despite the seasonal variations and environmental considerations, Ibiraiaras maintains reasonable solar generation potential throughout the year, with particularly strong performance during summer and spring months making it a viable location for solar energy investment with proper planning and maintenance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

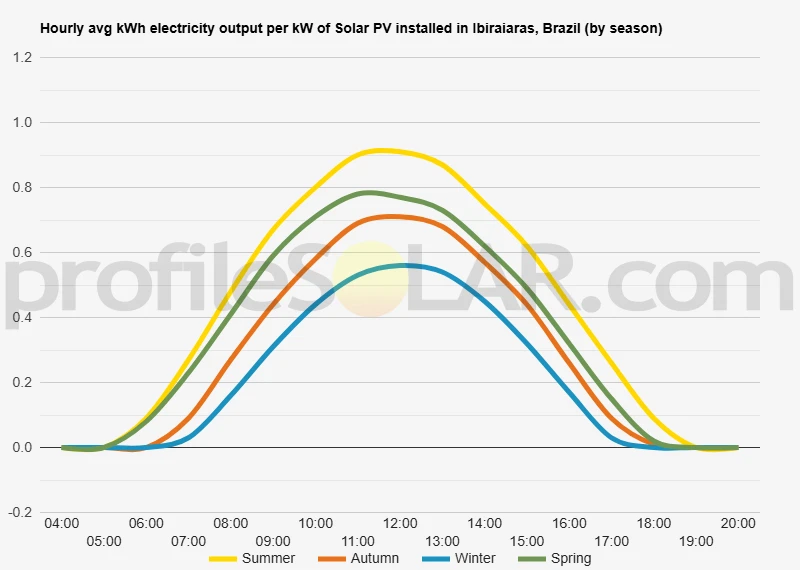

Solar output per kW of installed solar PV by season in Ibiraiaras

Seasonal solar PV output for Latitude: -28.3848, Longitude: -51.629 (Ibiraiaras, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Ibiraiaras, Brazil

To maximize your solar PV system's energy output in Ibiraiaras, Brazil (Lat/Long -28.3848, -51.629) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibiraiaras, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibiraiaras, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibiraiaras, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibiraiaras, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibiraiaras, Brazil

Topographical Features of the Ibiraiaras Region

Ibiraiaras sits within the rolling hills and plateaus of Rio Grande do Sul's northern highlands, part of the broader Southern Brazilian Plateau. The terrain around this municipality is characterized by gently undulating topography, with elevations typically ranging from 600 to 800 meters above sea level. The landscape features a mix of moderately sloped hills, shallow valleys, and relatively flat plateau areas that extend across much of the region.

The area experiences a temperate highland climate influenced by its elevation and position within the Atlantic Forest biome transition zone. The topography consists primarily of weathered basaltic formations from ancient volcanic activity, creating fertile soils that support both agriculture and natural vegetation. Rolling grasslands intermixed with patches of Araucaria forest create a mosaic landscape typical of this part of southern Brazil.

Drainage and Valley Systems

The region's drainage patterns follow the gentle slopes toward various tributaries of the Uruguay River system. Small streams and seasonal watercourses have carved shallow valleys throughout the area, though these are generally not deeply incised into the landscape. The watershed boundaries create subtle ridgelines that separate different drainage basins, but these elevated areas rarely present steep gradients or dramatic elevation changes.

The relatively stable geology and moderate precipitation patterns have resulted in well-established drainage networks that don't typically create significant topographical barriers. Valley floors tend to be broad and gently graded, while the interfluves between water courses maintain fairly consistent elevations across extensive areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ibiraiaras would be the extensive plateau areas and gentle ridge tops that characterize much of the regional landscape. These elevated, relatively flat areas offer several advantages including consistent exposure to solar radiation throughout the day and minimal shading from surrounding terrain features.

The broad interfluves between major drainage systems present particularly attractive opportunities for solar development. These areas typically feature gentle slopes of less than five percent grade across substantial distances, making them ideal for large solar arrays with minimal grading requirements. The stable basaltic bedrock underlying much of the region provides excellent foundation conditions for mounting systems.

Areas to the east and southeast of Ibiraiaras appear especially promising, where the plateau extends across several square kilometers with minimal topographical variation. These zones combine favorable slope conditions with good accessibility via existing rural road networks. The relatively open landscape in these directions also reduces potential shading concerns from forested areas or significant elevation changes.

South-facing slopes with gradients between two and eight percent could also accommodate solar installations effectively, particularly where they extend across large contiguous areas without interruption from valleys or drainage features. The key consideration for site selection involves identifying locations where the natural topography aligns with optimal solar panel orientation while providing sufficient flat or gently sloped land for economically viable installation scales.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
