Solar Energy Potential in Ibirarema, São Paulo, Brazil

Ibirarema, São Paulo, Brazil offers a promising location for solar PV energy generation, situated in a tropical region where sunlight patterns remain relatively consistent throughout the year. This location experiences seasonal variations in solar production that follow predictable patterns, making it suitable for year-round energy generation. The solar energy output at this location shows distinct seasonal patterns. During summer months, solar panels can generate an impressive 7.07kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.32kWh/day, while autumn yields 5.63kWh/day. Winter represents the least productive period with 4.67kWh/day per kilowatt installed, though this output still remains substantial compared to many non-tropical locations.

Seasonal Production and Optimization

For fixed solar panel installations in Ibirarema, São Paulo, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture across all seasons, accounting for the location's position relative to the sun's path throughout the year. The significant difference between summer and winter production (approximately 2.4kWh/day per kilowatt) indicates that while the location is suitable year-round, energy planning should account for this seasonal variation. The summer-to-spring period offers the most abundant solar resource, making these seasons ideal for maximizing energy production and storage if applicable.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Ibirarema. The region experiences a distinct wet season which can temporarily reduce solar output due to cloud cover and rainfall. During these periods, panels may generate less electricity than their rated capacity. Dust accumulation presents another challenge in this tropical location. The combination of dry periods followed by sporadic rainfall can create a cycle of dust buildup that reduces panel efficiency. To mitigate this issue, regular cleaning schedules should be implemented, particularly during transitions between wet and dry seasons. Temperature is also a consideration, as solar panels typically lose efficiency when operating at high temperatures. In Ibirarema's tropical climate, installing panels with sufficient airflow beneath them can help dissipate heat and maintain higher efficiency. Selecting panels with lower temperature coefficients would be advantageous for this location. Preventative measures for optimal production include:

• Installing panels at the precise 21-degree North tilt to maximize year-round production
• Implementing automated or scheduled cleaning systems to address dust accumulation
• Using elevated mounting systems that promote airflow beneath panels to reduce operating temperatures
• Selecting panels with high humidity tolerance suitable for tropical environments
• Installing lightning protection systems due to the prevalence of thunderstorms during wet seasons

With proper installation and maintenance practices that address these regional factors, Ibirarema offers a reliable location for solar energy production throughout the year, with particularly favorable conditions during summer and spring months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

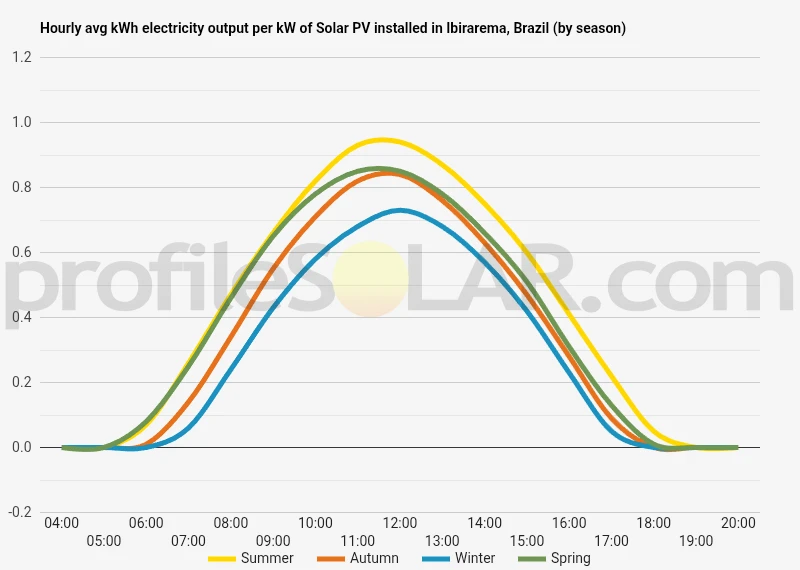

Solar output per kW of installed solar PV by season in Ibirarema

Seasonal solar PV output for Latitude: -22.8069, Longitude: -50.0814 (Ibirarema, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Ibirarema, Brazil

To maximize your solar PV system's energy output in Ibirarema, Brazil (Lat/Long -22.8069, -50.0814) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibirarema, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibirarema, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibirarema, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibirarema, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibirarema, Brazil

The topography around Ibirarema, Brazil, consists mostly of gently rolling hills and plateaus, characteristic of the interior of São Paulo state. The area sits at an elevation of approximately 450 meters above sea level, with the landscape gradually undulating across the region. The terrain is part of the Paraná Plateau, a large geological formation that spans several Brazilian states. Rivers and waterways cut through the landscape, including the Pardo River which flows near Ibirarema. These waterways have, over time, carved shallow valleys in the otherwise moderately flat terrain. The soil is predominantly of the "terra roxa" type (purple earth), which is rich in nutrients and has historically supported extensive agricultural activity in the region.

Vegetation and Land Use

The natural vegetation of the area would have been a mix of Atlantic Forest and Cerrado (Brazilian savanna) formations, though much of this has been converted to agricultural land over the centuries. Currently, the landscape is dominated by farmland, with sugar cane, soybeans, and other crops being prominent. Small patches of secondary forest and riparian vegetation along waterways provide the remaining natural cover.

Suitable Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Ibirarema would be: The elevated plateau regions to the north and east of Ibirarema offer ideal conditions for solar farms. These areas feature relatively flat terrain with minimal shadowing effects from topographical features. The gentle slopes facing north (toward the equator in the Southern Hemisphere) would receive more consistent solar radiation throughout the year. Agricultural lands that are less productive or lying fallow could be repurposed for solar energy production. The already cleared nature of these lands means minimal site preparation would be required. Several areas between Ibirarema and neighboring municipalities like Salto Grande and Campos Novos Paulista offer suitable expanses of land. The regions with good proximity to existing transmission infrastructure would reduce connection costs. Areas near the existing power lines that run through the region connecting to larger cities like Ourinhos and Assis would be particularly advantageous. Areas away from the immediate river valleys are preferable, as they would be less prone to morning fog or mist that might reduce early-day solar efficiency. The slightly higher elevations to the northeast of Ibirarema typically experience clearer morning conditions.

Topographical Considerations

The modest elevation differences in the region mean that construction challenges would be minimal compared to more mountainous regions. The stable geological foundation provides good support for solar array mounting systems without requiring extensive ground preparation. Drainage patterns should be considered when developing solar installations, as the rolling topography channels rainfall in predictable ways. Proper site engineering would need to account for these natural water flows to prevent erosion around solar arrays during the rainy season. The open nature of the landscape, with few natural barriers, does mean that wind exposure can be significant. Solar installations would need appropriate anchoring to withstand occasional strong winds that sweep across the plateaus.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
