Ibitinga, Brazil represents a highly favorable location for year-round solar energy generation. Located in the tropical region of São Paulo state, this area benefits from consistent sunlight throughout most of the year, with seasonal variations primarily driven by wet and dry periods rather than dramatic changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Ibitinga demonstrates strong year-round performance. Summer delivers the highest production at 6.85 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows closely with 6.34 kWh per day per kW, representing the second-best period for solar energy production. Autumn shows moderate output at 5.69 kWh per day per kW, while winter presents the lowest production at 4.97 kWh per day per kW of installed capacity. Despite winter being the least productive season, the output remains substantial and economically viable for solar installations. For optimal year-round performance, solar panels at this location should be installed at a fixed tilt angle of 20 degrees facing north. This angle has been calculated to maximize total annual solar energy production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Ibitinga, though most can be effectively managed with proper planning and installation techniques. The tropical climate brings intense seasonal rainfall during wet periods, which can reduce solar output through cloud cover and atmospheric moisture. However, rain also provides a natural cleaning effect for solar panels, helping to maintain their efficiency by washing away accumulated dust and debris. Dust accumulation presents a more significant challenge, particularly during dry seasons when agricultural activities and reduced rainfall allow particles to settle on panel surfaces. This can create a film that reduces light transmission and decreases energy output over time. High humidity levels, common in tropical regions, can potentially affect electrical components and connections if not properly protected. The combination of heat and moisture creates conditions that require robust weatherproofing for optimal system longevity.

Preventative Installation Measures

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use high-quality weatherproof electrical enclosures and connections rated for tropical conditions
• Implement a regular cleaning schedule, particularly during dry seasons when dust accumulation is highest
• Consider anti-reflective coatings on panels that also provide some self-cleaning properties
• Ensure proper drainage around installation areas to prevent water pooling during heavy rains

The location's consistent solar resource throughout the year, combined with proper installation and maintenance practices, makes Ibitinga an excellent choice for solar energy projects. While environmental factors require attention, they are manageable with standard tropical solar installation techniques and do not significantly diminish the location's strong solar potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

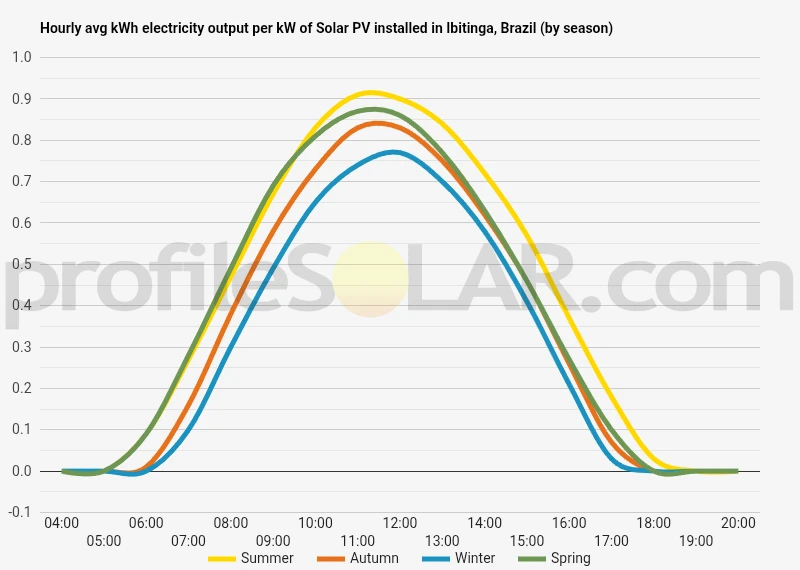

Solar output per kW of installed solar PV by season in Ibitinga

Seasonal solar PV output for Latitude: -21.7951, Longitude: -48.8384 (Ibitinga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Ibitinga, Brazil

To maximize your solar PV system's energy output in Ibitinga, Brazil (Lat/Long -21.7951, -48.8384) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibitinga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibitinga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibitinga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibitinga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibitinga, Brazil

Topographical Features Around Ibitinga

The landscape surrounding Ibitinga in São Paulo state is characterized by gently rolling hills and relatively flat terrain typical of the Brazilian plateau region. This area sits within the broader geological formation known as the Paraná Basin, where elevations generally range from 400 to 600 meters above sea level. The topography consists primarily of low-relief terrain with gradual slopes and wide valleys, creating an undulating landscape that is neither mountainous nor completely flat. The region features well-drained soils developed over sedimentary rocks, with occasional outcrops of sandstone formations. Small streams and tributaries flow through the area, eventually feeding into larger waterways. The natural vegetation has been largely converted to agricultural use, particularly sugarcane plantations and pastureland, which has resulted in extensive cleared areas with minimal tree cover.

Climate and Weather Patterns

Ibitinga experiences a tropical savanna climate with distinct wet and dry seasons. The dry season typically extends from May through September, during which cloud cover is minimal and precipitation is scarce. The wet season runs from October through April, bringing increased humidity and regular afternoon thunderstorms. Temperature variations are moderate throughout the year, with warm conditions prevailing during most months. The region benefits from consistent solar irradiation levels, particularly during the dry season when atmospheric conditions are most favorable. Cloud formations during the wet season tend to develop in predictable patterns, often clearing by mid-morning and reforming in late afternoon.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ibitinga would be the relatively flat to gently sloping areas south and southeast of the city. These zones offer several advantages including minimal topographical obstacles, good drainage characteristics, and existing infrastructure access. The terrain in these areas requires minimal grading and earthwork, which significantly reduces installation costs. Areas with south-facing slopes of less than 15 degrees would be particularly advantageous, as they provide optimal panel orientation while maintaining manageable construction conditions. The existing agricultural lands in these zones could potentially be converted to solar use, especially areas that are currently used for less intensive farming operations. The northwestern areas around Ibitinga present some challenges due to slightly more varied topography and the presence of small waterways that could complicate large-scale development. However, elevated plateaus in this direction could still be viable with proper site preparation.

Infrastructure and Access Considerations

The region benefits from reasonable road access via state highways, which would facilitate the transportation of solar equipment and materials to potential installation sites. Existing electrical transmission infrastructure in the area provides connection points for grid integration, though upgrades might be necessary for very large installations. Rural properties with existing access roads would be preferred development sites, as they minimize the need for new infrastructure construction. The relatively stable soil conditions throughout most of the area around Ibitinga support the installation of ground-mounted solar arrays without requiring extensive foundation work. Areas closer to existing substations and transmission lines would be most economically viable, as they reduce the costs associated with electrical interconnection and power evacuation from the solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
