Ibitirama, Espírito Santo, Brazil presents a moderately good location for year-round solar energy generation, though it experiences notable seasonal variation in solar output. Located in the tropical region where consistent sunlight is available throughout most of the year, this area shows distinct wet and dry seasonal patterns that influence solar production capacity.

Seasonal Solar Performance

The solar energy output at Ibitirama varies considerably across the seasons. Summer delivers the strongest performance at 6.12 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.13 kWh per day, while autumn produces 5.50 kWh per day. Winter represents the lowest production period at 4.56 kWh per day per kW installed. For maximum year-round energy production from a fixed panel installation at this location, solar panels should be tilted at an angle of 19 degrees facing north. This optimal angle maximizes the total annual solar output by accounting for the sun's path throughout the year and the varying solar irradiance levels.

Environmental Factors Affecting Solar Production

Several local environmental factors can significantly impact solar energy production in Ibitirama. The tropical wet season brings frequent cloud cover and heavy rainfall, which reduces solar irradiance and can accumulate dirt and debris on panel surfaces. High humidity levels throughout much of the year can also affect panel efficiency and create conditions for corrosion of mounting hardware. The region's tropical climate means panels may experience elevated operating temperatures, which can reduce their electrical efficiency. Additionally, the wet season can create challenges with water drainage around solar installations and increase the risk of flooding in low-lying areas.

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented:

• Install panels with adequate tilt and spacing to promote natural rainwater cleaning and prevent water pooling
• Use corrosion-resistant mounting materials suitable for high-humidity tropical environments
• Implement regular cleaning schedules, particularly during and after the wet season when dirt accumulation is highest
• Ensure proper drainage around ground-mounted systems to prevent water damage
• Select panels with good high-temperature performance ratings to maintain efficiency during hot periods

Regular maintenance becomes particularly important in this tropical environment. Monthly visual inspections and quarterly professional cleaning can help maintain optimal performance throughout the year, especially during the transition periods between wet and dry seasons when dust and organic matter tend to accumulate most rapidly on panel surfaces.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

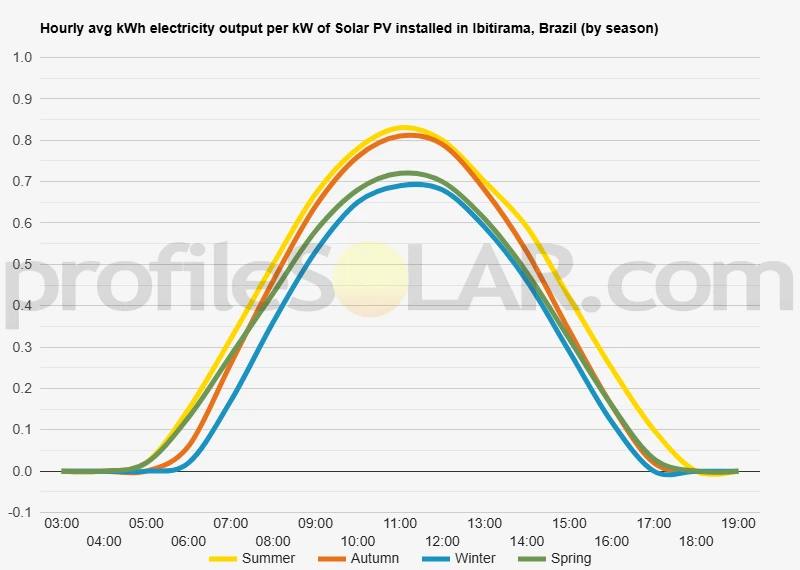

Solar output per kW of installed solar PV by season in Ibitirama

Seasonal solar PV output for Latitude: -20.514, Longitude: -41.6675 (Ibitirama, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Ibitirama, Brazil

To maximize your solar PV system's energy output in Ibitirama, Brazil (Lat/Long -20.514, -41.6675) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibitirama, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibitirama, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibitirama, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibitirama, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibitirama, Brazil

Topographical Features of Ibitirama Region

Ibitirama sits in the mountainous interior of Espírito Santo state, nestled within the complex terrain of the Atlantic Forest region. The municipality is characterized by steep hills, deep valleys, and rolling highlands that form part of the Brazilian Highlands system. The landscape features significant elevation changes, with peaks and ridges creating a dramatic topographical profile across the region.

The terrain around Ibitirama is dominated by ancient crystalline rock formations that have been sculpted over millions of years into a series of rounded hills and sharp escarpments. Dense Atlantic Forest vegetation covers much of the steeper slopes, while agricultural activities have historically taken place on the more gentle inclines and valley floors. The region's rivers have carved deep channels through the landscape, creating narrow valleys between the elevated areas.

The municipal territory extends across various elevation zones, from lower valley areas to highland plateaus. The topography creates distinct microclimates throughout the region, with cooler temperatures typically found at higher elevations and warmer conditions in the sheltered valleys. This varied terrain has influenced settlement patterns, with most development concentrated in the more accessible areas rather than on the steepest slopes.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations around Ibitirama would be the elevated plateau areas and gently sloping highland surfaces. These zones offer several advantages including relatively flat or moderately inclined terrain that requires minimal grading for solar panel installation. The higher elevations also tend to have fewer trees and less dense vegetation, reducing the environmental impact and costs associated with land clearing.

Areas to the north and northeast of the municipal center present particularly favorable conditions, where the topography transitions from steep hills to more gradual slopes and occasional flat areas. These locations would allow for efficient panel arrangement and maintenance access while avoiding the engineering challenges posed by the region's steeper terrain.

The southern portions of the municipality, where the landscape features broader valleys and less dramatic elevation changes, could also accommodate solar installations. However, careful site selection would be necessary to avoid areas prone to morning fog or afternoon shading from surrounding hills. The key consideration for any large-scale development would be identifying sites with consistent southern exposure that remain unobstructed by the region's complex topographical features.

Transportation infrastructure represents another crucial factor, as the mountainous terrain can make equipment delivery challenging. Sites with reasonable access to existing roads or areas where access roads could be constructed without excessive environmental disruption would be most practical for development. The elevated areas near the main transportation corridors would therefore represent the optimal compromise between technical suitability and logistical feasibility.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
