Ibotirama, Bahia, Brazil represents an excellent location for year-round solar energy generation through photovoltaic panels. Located in the tropical region at coordinates -11.8862, -43.2529, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Output Performance

The solar energy production data for Ibotirama shows remarkably consistent performance across all seasons. Winter produces the lowest output at 6.32 kWh per day per kW of installed solar capacity, while spring delivers the highest production at 6.97 kWh per day per kW. Summer and autumn fall in between at 6.55 kWh and 6.44 kWh respectively. This relatively small variation of only 0.65 kWh between the best and worst performing seasons demonstrates the location's reliability for solar energy generation. The consistency makes Ibotirama particularly attractive for solar installations since energy production remains predictable throughout the year.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 12 degrees facing North. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production in Ibotirama and require consideration during installation planning:

• Dust and Particulate Matter: The semi-arid climate common in this region of Brazil can generate significant dust accumulation on solar panels, reducing their efficiency over time
• Heavy Rainfall During Wet Season: While tropical wet seasons can help clean panels naturally, intense rainfall may cause temporary shading from storm clouds and potential flooding concerns for ground-mounted systems
• High Humidity: Tropical humidity can accelerate corrosion of metal components and electrical connections if not properly protected
• Extreme Heat: High temperatures can reduce solar panel efficiency and stress electrical components

Preventative Measures for Optimal Performance

To address these environmental challenges and ensure maximum energy production, several preventative measures should be implemented: Regular cleaning schedules become essential, particularly during dry seasons when dust accumulation is heaviest. Installing automated cleaning systems or planning for frequent manual cleaning can maintain panel efficiency. Proper drainage systems and elevated mounting structures help protect against flooding during intense wet season rainfall. Ground-mounted systems should be positioned well above typical flood levels, while roof-mounted systems need robust waterproofing. All electrical components and connections should use marine-grade or tropical-rated materials specifically designed to withstand high humidity environments. Regular inspection and maintenance of these components prevents humidity-related failures. Adequate ventilation around panels and electrical equipment helps manage extreme heat, while selecting panels and inverters rated for high-temperature operation ensures reliable performance during the hottest periods. Despite these considerations, Ibotirama's consistent solar output throughout the year makes it a highly suitable location for solar energy generation, with proper installation and maintenance practices easily addressing the environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

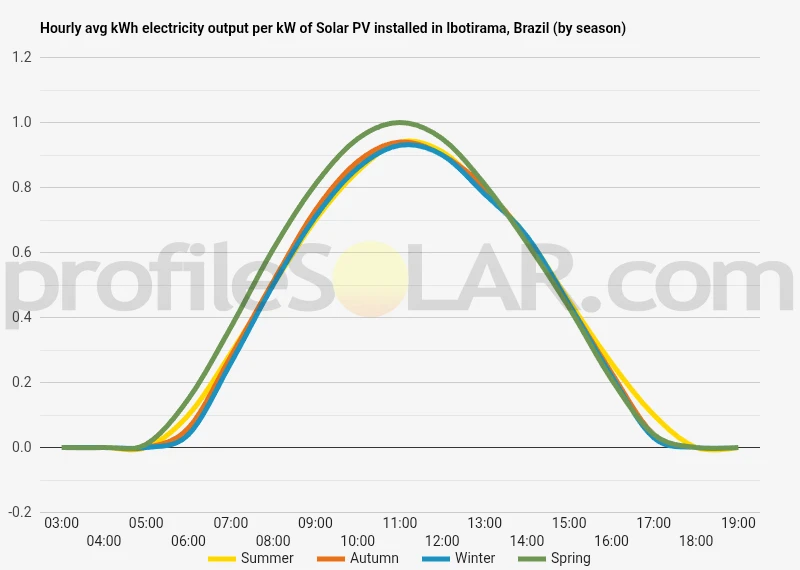

Solar output per kW of installed solar PV by season in Ibotirama

Seasonal solar PV output for Latitude: -11.8862, Longitude: -43.2529 (Ibotirama, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° North in Ibotirama, Brazil

To maximize your solar PV system's energy output in Ibotirama, Brazil (Lat/Long -11.8862, -43.2529) throughout the year, you should tilt your panels at an angle of 12° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ibotirama, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ibotirama, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	18° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ibotirama, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ibotirama, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ibotirama, Brazil

Topographical Features of the Ibotirama Region

Ibotirama sits in the heart of Brazil's northeastern interior, positioned along the São Francisco River in the state of Bahia. The surrounding landscape is characterized by relatively flat to gently rolling terrain typical of the Caatinga biome, with elevations generally ranging from 350 to 500 meters above sea level. This semi-arid region forms part of the Brazilian Highlands' eastern edge, where the terrain gradually transitions from the more mountainous interior toward the coastal plains.

The São Francisco River serves as the dominant geographical feature, carving a broad valley through the landscape as it flows northeastward toward the Atlantic Ocean. The river's floodplain creates a corridor of slightly lower elevation and more fertile soils, contrasting with the drier uplands that extend in all directions from the valley floor. These upland areas consist primarily of gentle slopes and broad plateaus, interrupted occasionally by low hills and scattered rock outcroppings.

The regional geology is dominated by ancient crystalline rocks of the Brazilian Shield, overlain in places by sedimentary formations. This geological foundation has created a landscape with good drainage characteristics, where water naturally flows toward the São Francisco River and its tributaries. The terrain's stability and relatively uniform composition make it well-suited for large-scale infrastructure development.

Climate and Vegetation Patterns

The climate around Ibotirama is classified as semi-arid, with distinct wet and dry seasons that significantly influence the local topography and vegetation patterns. During the dry season, which dominates much of the year, the landscape takes on a sparse, drought-adapted appearance characteristic of the Caatinga ecosystem. The vegetation consists primarily of thorny shrubs, small trees, and cacti that have evolved to survive extended periods with minimal rainfall.

This climatic pattern has shaped the topography over millennia, creating landscapes with minimal soil cover in many areas and exposing the underlying bedrock. The combination of high temperatures, intense solar radiation, and low humidity creates ideal conditions for solar energy generation, while the sparse vegetation means minimal clearing would be required for solar installations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Ibotirama are found on the elevated plateaus and gentle slopes that extend away from the São Francisco River valley. These upland areas offer several key advantages for solar development, including excellent drainage, stable geological conditions, and minimal vegetation that would require clearing.

The broad plateaus located to the north and south of the river present particularly attractive opportunities, as they provide extensive flat to gently sloping terrain with consistent elevations. These areas typically sit 50 to 100 meters above the river level, ensuring good drainage while remaining easily accessible for construction and maintenance activities. The relatively uniform topography across these plateaus would allow for efficient layout of solar arrays with minimal grading or site preparation.

Areas with gentle south-facing slopes are especially well-suited for solar installations, as they can be oriented to maximize solar exposure throughout the day. The natural drainage patterns in these locations help prevent water accumulation during the rainy season, reducing the risk of flooding or water damage to solar equipment.

The region's sparse population density means that large tracts of land are available for development without significant displacement of communities or agricultural activities. The existing road network, primarily centered around the BR-242 highway that passes through Ibotirama, provides reasonable access for construction and maintenance, though some areas may require development of additional access roads.

Locations within 10 to 20 kilometers of Ibotirama offer the best combination of suitable topography and proximity to existing electrical infrastructure, including transmission lines that follow the São Francisco River valley. These areas benefit from the stable, well-drained soils typical of the region while remaining close enough to population centers to facilitate grid connection and ongoing operations support.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
