Solar Potential in Igarapava, São Paulo, Brazil

Igarapava, São Paulo, Brazil offers a promising location for solar energy generation, situated in the tropical region where sunlight remains relatively consistent throughout the year. This location experiences distinct seasonal variations in solar production that follow a predictable pattern. The solar energy potential at this location shows good year-round performance with some seasonal fluctuation. During summer months, solar panels can generate an impressive 6.70 kWh per day for each kilowatt of installed capacity. This production decreases slightly to 5.80 kWh/day during autumn and reaches its lowest point in winter at 5.23 kWh/day. As spring arrives, production increases again to 6.22 kWh/day.

Seasonal Variations and Optimal Timing

The data reveals that summer (December-February in the Southern Hemisphere) represents the peak production period for solar energy in Igarapava. This aligns with the region's tropical climate pattern, where summer brings more intense solar radiation. Spring follows as the second most productive season, while autumn and winter show lower but still substantial generation capacity. For maximum energy production, solar installations should be optimized to take advantage of the summer months. However, the relatively modest difference between peak and minimum seasonal production (only about 1.47 kWh/day) indicates that Igarapava benefits from fairly consistent solar potential throughout the year, making it suitable for year-round solar energy generation.

Optimal Panel Installation

For fixed solar panel installations in Igarapava, São Paulo, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated by analyzing the daily solar elevation patterns at this latitude, weighted by the potential daily production throughout the year.

Environmental and Weather Considerations

The tropical location of Igarapava presents some challenges that should be considered when installing solar systems. The region experiences a distinct wet season, which can bring heavy rainfall and increased cloud cover, temporarily reducing solar production. During these periods, panels may generate less electricity despite the otherwise favorable conditions. High humidity and temperature can also affect solar panel efficiency, as most photovoltaic cells experience decreased performance in extreme heat. Additionally, tropical regions can be prone to dust and pollen accumulation on panel surfaces. To mitigate these challenges, several preventative measures are recommended:

• Install panels with sufficient spacing and elevation to allow for proper air circulation, reducing heat buildup
• Select high-quality panels with good temperature coefficients that perform better in hot conditions
• Implement regular cleaning schedules, especially before and after the wet season
• Consider semi-automated cleaning systems in areas with significant dust accumulation
• Use weather-resistant components designed for tropical environments

With these considerations addressed, Igarapava's location offers excellent potential for solar energy production throughout the year, with particularly strong performance during summer and spring months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

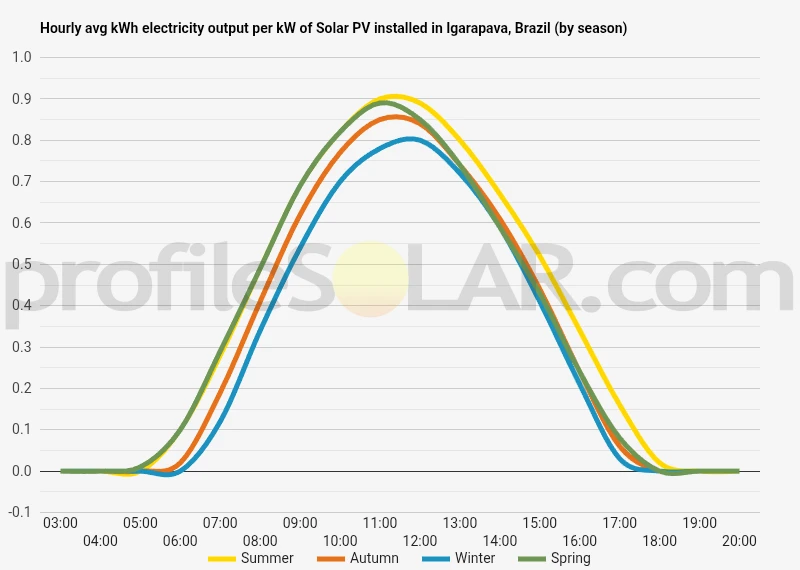

Solar output per kW of installed solar PV by season in Igarapava

Seasonal solar PV output for Latitude: -20.0826, Longitude: -47.6902 (Igarapava, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Igarapava, Brazil

To maximize your solar PV system's energy output in Igarapava, Brazil (Lat/Long -20.0826, -47.6902) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Igarapava, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Igarapava, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Igarapava, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Igarapava, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Igarapava, Brazil

The topography surrounding Igarapava, Brazil presents a diverse landscape characterized by gently rolling hills, plateaus, and river valleys. Located in the northeastern region of São Paulo state near the border with Minas Gerais, Igarapava sits at an elevation of approximately 550 meters above sea level. The terrain gradually transitions from the relatively flat areas along the Grande River to more undulating landscapes as one moves away from the water.

Landscape Features

The Grande River forms a significant topographical feature in the region, creating a natural border between the states of São Paulo and Minas Gerais. The river valley has shaped much of the local terrain, with alluvial plains near the riverbanks giving way to more elevated terrain further inland. The surrounding countryside displays a patchwork of agricultural lands interspersed with patches of native cerrado vegetation. The cerrado biome, which dominates this region, typically features a mix of savanna-like grasslands with scattered trees and shrubs. This natural vegetation has been significantly altered by human activities, particularly for agriculture, with large portions converted to sugarcane plantations and other crops.

Elevation Patterns

Moving away from Igarapava, the terrain becomes more varied, with modest hills rising to elevations between 600-800 meters. These hills are generally smooth and rounded, the result of millions of years of erosion. The topography lacks extremely steep slopes or mountainous terrain, instead featuring gradual inclines that create a rolling landscape. Several plateaus can be found in the broader region, offering relatively flat expanses at higher elevations. These plateau areas often have good drainage and minimal shadowing effects from surrounding terrain, creating favorable conditions for various land uses.

Soil and Surface Characteristics

The soils in the Igarapava region are predominantly latosols (oxisols), which are deeply weathered, well-drained soils typical of tropical regions. These soils often have a reddish or yellowish color due to their high iron and aluminum oxide content. While naturally acidic and of moderate fertility, many areas have been enhanced through agricultural practices. Surface water drainage follows the natural contours of the land, with numerous small streams and tributaries flowing toward the Grande River. Some areas feature artificial reservoirs and dams, including the Igarapava Hydroelectric Dam on the Grande River, which has modified the local topography by creating a reservoir upstream.

Areas Suitable for Solar PV Development

For large-scale solar photovoltaic installations, several areas in the Igarapava region offer promising conditions based on topographical considerations: The elevated plateau regions to the south and southwest of Igarapava present some of the most favorable terrain for solar development. These areas combine relatively flat expanses with good elevation, minimizing shadowing concerns while offering stable ground for installation. The natural drainage of these plateaus also reduces flooding risks. The gently sloping hillsides with northern exposure (facing the equator) provide excellent natural orientation for solar capture. Areas with slopes between 2-10 degrees can be ideal as they balance good solar exposure with manageable construction conditions. Former agricultural lands on the higher ground between Igarapava and Aramina offer another promising option. These areas have already been cleared of native vegetation and often feature accessible terrain with existing road infrastructure nearby. The drier upland areas away from the Grande River floodplain present reduced humidity levels, which can be beneficial for solar equipment longevity and performance. These locations also typically have fewer morning fog occurrences that might temporarily reduce solar capture efficiency. Areas to generally avoid include the immediate floodplains of the Grande River and its tributaries, steep slopes with potential erosion concerns, and locations with significant morning shadow effects from nearby hills. The lowest-lying areas near the river can experience seasonal flooding and higher humidity levels that may be less optimal for solar infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
