Igaratinga, Minas Gerais, Brazil represents a very good location for year-round solar energy generation through photovoltaic panels. Located in the tropical region at coordinates -19.9606, -44.7253, this area benefits from consistent sunlight throughout most of the year, with seasonal variations driven more by wet and dry periods than by dramatic changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Igaratinga shows strong and relatively stable production across all seasons. Summer delivers the highest output at 6.46 kWh per day per kW of installed solar capacity, followed closely by spring at 6.20 kWh per day. Even during the lowest production period in winter, the location still generates a respectable 5.38 kWh per day per kW, while autumn produces 5.97 kWh per day per kW. The variation between the best and worst performing seasons is only about 20%, which demonstrates excellent year-round reliability for solar energy generation. This consistency makes Igaratinga particularly attractive for both residential and commercial solar installations.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal angle to tilt solar panels is 19 degrees North to maximize total year-round production. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Igaratinga and require consideration during installation:

• Heavy rainfall during wet season: The tropical climate brings intense rainfall periods that can reduce solar irradiance and create issues with water accumulation on panels
• High humidity levels: Persistent moisture in the air can affect panel efficiency and create conditions for corrosion of mounting hardware
• Dust and debris accumulation: Dry seasons combined with agricultural activity in the region can lead to dust buildup on solar panels
• Vegetation growth: The favorable growing conditions may cause rapid vegetation growth that could shade solar installations

Preventative Measures for Installation

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Proper drainage design: Install panels with adequate spacing and drainage channels to prevent water pooling and ensure quick runoff during heavy rains
• Corrosion-resistant materials: Use aluminum or stainless steel mounting systems with appropriate protective coatings designed for high-humidity tropical environments
• Regular maintenance scheduling: Establish cleaning protocols during dry seasons to remove dust accumulation, and post-storm inspections during wet periods
• Strategic positioning: Site panels away from areas prone to rapid vegetation growth and maintain clear zones around installations
• Quality electrical components: Invest in inverters and electrical connections rated for high humidity and temperature variations

Despite these considerations, the strong and consistent solar output potential makes Igaratinga an excellent choice for solar energy projects. With proper installation techniques and regular maintenance, solar systems in this location should perform very well throughout the year, providing reliable renewable energy generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

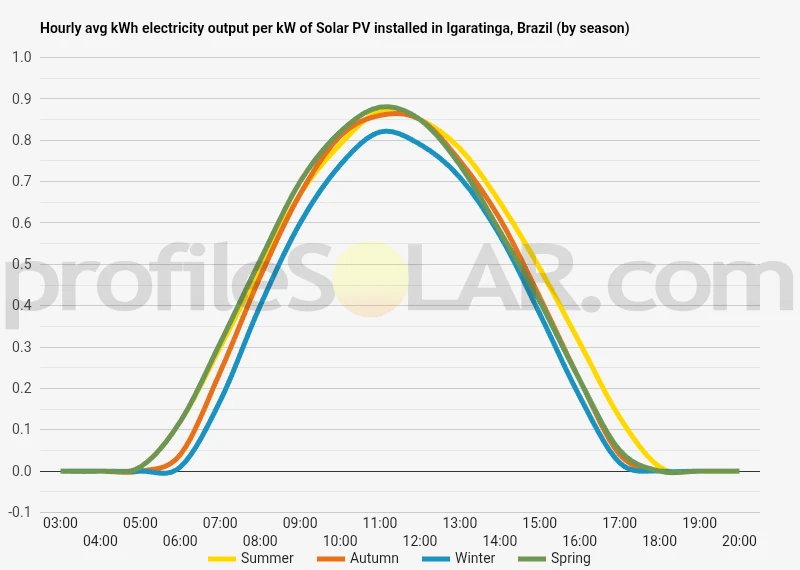

Solar output per kW of installed solar PV by season in Igaratinga

Seasonal solar PV output for Latitude: -19.9606, Longitude: -44.7253 (Igaratinga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Igaratinga, Brazil

To maximize your solar PV system's energy output in Igaratinga, Brazil (Lat/Long -19.9606, -44.7253) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Igaratinga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Igaratinga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Igaratinga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Igaratinga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Igaratinga, Brazil

Topographical Features of the Igaratinga Region

The area surrounding Igaratinga in Minas Gerais, Brazil sits within the Brazilian Highlands, a region characterized by rolling hills, elevated plateaus, and gentle valleys. This municipality lies at an elevation of approximately 700 meters above sea level, positioned within the Serra da Moeda mountain range system. The topography consists primarily of undulating terrain with moderate slopes, interspersed with flatter areas that provide excellent opportunities for development. The landscape features a mix of agricultural land, pastures, and remnant Atlantic Forest vegetation on steeper slopes. The region's geology is dominated by metamorphic rocks and iron ore deposits, typical of the Quadrilátero Ferrífero mining region. Rolling hills extend in all directions, with elevations varying between 650 and 900 meters throughout the immediate vicinity. Water features include several small streams and tributaries that flow toward the Paraopeba River system, creating narrow valleys between the hills. These waterways have carved gentle depressions in the landscape over time, leaving behind fertile valley floors that are often utilized for agriculture.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the elevated plateaus and gentle south-facing slopes throughout the region. These areas offer relatively flat or gently sloping terrain that minimizes grading requirements and construction costs while maximizing solar exposure throughout the day. The agricultural lands on the broader hilltops present particularly attractive opportunities, as they typically feature open spaces with minimal tree cover and good accessibility via existing rural roads. These elevated positions also benefit from consistent air circulation, which helps maintain optimal operating temperatures for solar panels. Areas to the north and east of Igaratinga show especially promising characteristics, where the topography transitions into broader, more gently rolling terrain. The existing pastureland in these zones could accommodate large solar arrays with minimal environmental disruption, while the slightly elevated positions ensure good drainage during the rainy season. The flatter valley floors, while offering easy construction access, may be less ideal due to potential flooding concerns and morning fog formation. However, the broader valley areas with good drainage could still serve as viable locations for solar development, particularly where they connect to existing electrical infrastructure. Transportation access remains excellent throughout most of the region, with established rural roads connecting to major highways, facilitating both construction logistics and ongoing maintenance operations for large-scale solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
