Iguape, São Paulo, Brazil, located in the Southern Sub Tropics at coordinates -24.5546, -47.5047, presents a generally favorable location for solar PV energy generation throughout the year, though with seasonal variations.

Seasonal Solar Production

Solar energy production at this location shows significant seasonal fluctuation. Summer is the most productive period, with panels generating approximately 5.85kWh per day for each kilowatt installed. This drops to 4.50kWh/day during autumn and decreases further to 3.40kWh/day in winter, which represents the annual low point. Production recovers during spring to 4.43kWh/day.

The annual pattern reveals that December through February offer peak solar generation potential, making summer the ideal time for maximum energy harvest. The winter months (June-August) deliver approximately 42% less energy than summer peaks, but still provide reasonable production.

Optimal Panel Installation

For a fixed panel installation at Iguape, São Paulo, the ideal tilt angle to maximize year-round energy production is 22 degrees facing North. This specific angle optimizes the annual solar harvest by balancing seasonal variations and the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several factors could potentially impact solar production at this location:

• High humidity and coastal fog, common in this Atlantic coastal region, may reduce solar irradiance during early morning hours, particularly in winter months.
• Occasional tropical storms during summer months (December-March) could temporarily reduce production during otherwise peak periods.
• The region's vegetation growth rate is substantial due to the subtropical climate, potentially creating shading issues if not managed.

To mitigate these challenges, installations should incorporate several preventative measures:

• Regular panel cleaning protocols to remove salt spray deposits and organic debris
• Elevated mounting systems to minimize vegetation shading concerns
• Quality inverters with high humidity tolerance ratings
• Strategic tree management around the installation site

Despite these considerations, Iguape's location offers reliable year-round solar potential with an annual average of approximately 4.55kWh per day for each kilowatt installed, making it a viable location for solar PV investment with proper system design and maintenance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

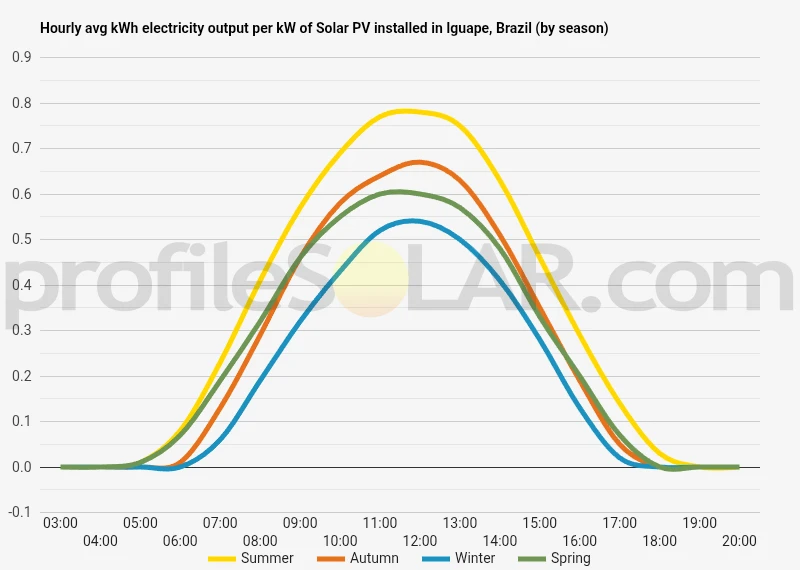

Solar output per kW of installed solar PV by season in Iguape

Seasonal solar PV output for Latitude: -24.5546, Longitude: -47.5047 (Iguape, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Iguape, Brazil

To maximize your solar PV system's energy output in Iguape, Brazil (Lat/Long -24.5546, -47.5047) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Iguape, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Iguape, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	30° North in Autumn	40° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Iguape, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Iguape, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Iguape, Brazil

The city of Iguape sits on Brazil's southeastern coastline in the state of São Paulo, nestled within a topographically diverse region characterized by coastal plains, lagoons, mountains, and forested highlands. This area forms part of the Vale do Ribeira region, which features one of the largest continuous stretches of preserved Atlantic Forest (Mata Atlântica) remaining in Brazil.

Coastal Features

Iguape is positioned on a coastal plain adjacent to the Ribeira de Iguape River estuary and the Mar Pequeno lagoon, which separates the mainland from Ilha Comprida (Long Island), a barrier island stretching approximately 70 kilometers along the coast. The immediate surroundings of Iguape are predominantly flat, with elevations near sea level, featuring wetlands, mangroves, and sandy soils.

Inland Topography

Moving inland from Iguape, the terrain gradually rises toward the Serra do Mar mountain range, which runs parallel to the Atlantic coast throughout much of southeastern Brazil. This transition creates a varied landscape with rolling hills giving way to more pronounced elevations. The Serra do Mar mountains can reach heights of 800-1,200 meters in the broader region, forming a significant topographical barrier between the narrow coastal plain and the higher plateau of the interior.

Vegetation and Land Cover

The natural vegetation around Iguape is predominantly Atlantic Forest, though much has been altered by human activities. Closer to the coast, mangroves and restinga (coastal scrub) vegetation dominate, while dense tropical forests cover the hillsides and mountains. This vegetation density is supported by the region's humid subtropical climate with abundant rainfall throughout the year.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several factors related to the topography must be considered. The most suitable areas near Iguape would be: The coastal plains north and south of the urban center offer relatively flat terrain that would minimize grading costs for solar installations. These areas receive good solar exposure without significant shadowing from mountains. However, proximity to environmentally sensitive wetlands and protected areas may create regulatory challenges. The gently rolling hills further inland, particularly in areas that have already been cleared for agriculture, present opportunities for solar development. These locations often have favorable drainage and less flooding risk compared to the immediate coastal areas.

Challenges for Solar Development

Despite having suitable areas, the region presents several topographical challenges for solar PV deployment. The high annual precipitation and humidity levels associated with the Atlantic Forest climate can impact solar panel efficiency. The extensive forest cover means that land clearing might be necessary, raising environmental concerns in a region known for its ecological importance. Additionally, the Serra do Mar mountains cast morning shadows in some areas, potentially reducing early day solar production in locations immediately to their west. The coastal location also exposes equipment to salt spray, which can accelerate corrosion without proper protection measures.

Most Promising Areas

Considering these factors, the most promising locations for large-scale solar PV development near Iguape would be the already-disturbed agricultural lands on the gentle slopes inland from the city, particularly in areas with southern or western exposure that maximize solar radiation collection. Secondary options include the flatter coastal areas that are already developed or degraded, avoiding the ecologically sensitive wetlands and protected forest reserves that characterize much of this biologically diverse region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
