Solar Energy Potential in Ilha Solteira, São Paulo, Brazil

Ilha Solteira, São Paulo, Brazil, located at coordinates -20.4862, -51.2757, offers a promising location for solar PV energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations characterized more by wet and dry periods than dramatic changes in daylight hours. The solar energy production potential shows a favorable pattern across all four seasons. Summer delivers the highest output at 6.94kWh per day for each kilowatt of installed capacity. Spring follows closely with 6.48kWh/day, while autumn produces 5.81kWh/day. Winter, though the least productive season, still generates a respectable 5.07kWh/day per installed kilowatt. For fixed solar panel installations in Ilha Solteira, São Paulo, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle optimizes solar capture throughout the year, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit.

Environmental and Weather Considerations

Several environmental factors may impact solar production at this location:

• Seasonal rainfall patterns, particularly during the wet season, can reduce solar output due to cloud cover and direct precipitation on panels
• Dust accumulation from the region's agricultural activities and occasional dry periods can diminish panel efficiency
• Higher temperatures, especially during summer months, may slightly reduce photovoltaic efficiency

To mitigate these challenges, solar installations in Ilha Solteira should incorporate regular cleaning schedules, especially before and after the rainy season. Installing panels with self-cleaning coatings or at a steeper angle than the optimal 19 degrees might help with natural cleaning during rainfall. Temperature-related efficiency losses can be minimized by ensuring adequate airflow behind panels and selecting high-temperature-rated PV modules specifically designed for tropical climates. With proper installation practices addressing these regional factors, Ilha Solteira remains an excellent location for solar energy production, with above-average generation potential throughout the entire year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

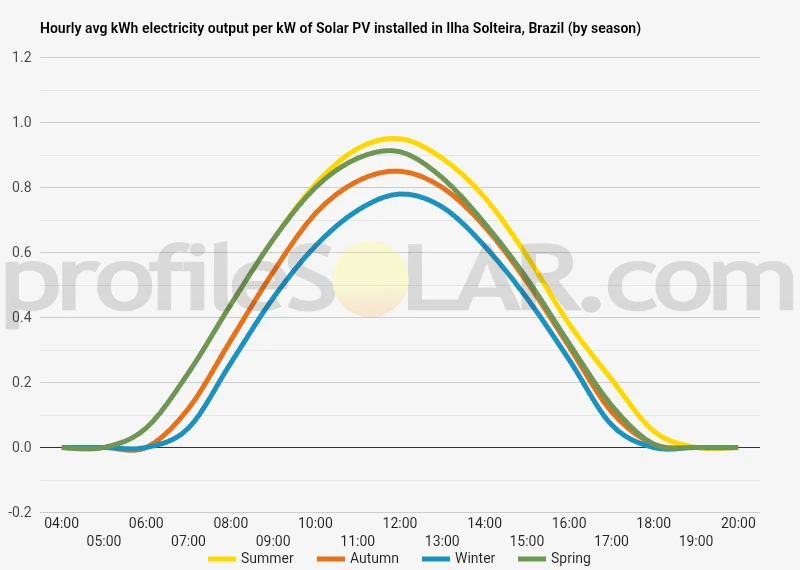

Solar output per kW of installed solar PV by season in Ilha Solteira

Seasonal solar PV output for Latitude: -20.4862, Longitude: -51.2757 (Ilha Solteira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Ilha Solteira, Brazil

To maximize your solar PV system's energy output in Ilha Solteira, Brazil (Lat/Long -20.4862, -51.2757) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ilha Solteira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ilha Solteira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ilha Solteira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ilha Solteira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ilha Solteira, Brazil

Ilha Solteira is situated in the northwest region of São Paulo state in Brazil, near the borders with Mato Grosso do Sul and Minas Gerais states. The topography of this area is characterized by gently rolling hills and plateaus, typical of Brazil's interior highlands known as the Brazilian Plateau or "Planalto Brasileiro." The landscape has been significantly altered by the construction of the Ilha Solteira Dam on the Paraná River, creating one of Brazil's largest reservoirs. The terrain surrounding Ilha Solteira features moderate elevation changes, with altitudes generally ranging between 300 and 400 meters above sea level. The area was originally covered by Cerrado vegetation, a savanna-like ecosystem with scattered trees and bushes, though much of this natural vegetation has been cleared for agricultural purposes over the decades.

Hydrography and Its Impact on Topography

The dominant topographical feature of the region is the Paraná River and its associated reservoir. The Ilha Solteira Dam, completed in the 1970s, transformed the local landscape by creating a massive water body that extends for kilometers in multiple directions. This artificial lake has created numerous peninsulas and inlets that characterize the current shoreline topography. The reservoir's presence has modified local microclimates and created distinct topographical zones: the higher, drier plateaus away from the reservoir, and the lower areas closer to the water's edge with their own distinctive environmental conditions.

Soil Composition

The soils in the Ilha Solteira region are predominantly classified as Oxisols (or "Latossolos" in the Brazilian classification system), which are highly weathered, acidic soils typical of tropical regions. These soils are generally deep and well-drained, but often have limited fertility without amendments. The underlying geology consists mainly of basaltic rocks and sandstone formations.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Ilha Solteira would be the elevated plateaus that feature: 1. Relatively flat terrain with slopes less than 5 degrees, which reduces installation costs and erosion concerns. These areas are abundant in the higher plateaus to the north and east of the reservoir. 2. Well-drained soils that minimize flooding risk during the rainy season. The Oxisols predominant in the region provide good drainage characteristics. 3. Areas already cleared of vegetation, particularly former agricultural lands or degraded pastures. The region has substantial tracts of land previously converted from native Cerrado to agricultural use that could be repurposed for solar installations with minimal additional environmental impact. The northwestern and northeastern sectors of the Ilha Solteira region present particularly favorable conditions, with extensive plateau areas that receive consistent solar radiation throughout the year. These areas typically have good access to existing transmission infrastructure due to the presence of the hydroelectric dam and its associated power distribution network. Areas immediately adjacent to the reservoir may present challenges due to higher humidity levels and potential morning fog, which could marginally reduce solar efficiency. Therefore, installations some distance from the water body, on the higher elevation plateaus, would generally be preferable for maximizing solar energy capture potential. The combination of favorable topography, existing infrastructure, and already-modified landscapes makes the Ilha Solteira region particularly well-suited for large-scale solar development compared to many other locations in Brazil.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
