Ilhabela, São Paulo, Brazil offers decent solar energy potential for year-round electricity generation, though it experiences notable seasonal variation typical of its Southern Sub-tropical location at coordinates -23.8431, -45.2651.

Seasonal Solar Performance

The location demonstrates strong summer performance with solar panels generating 6.24 kWh per day for each kilowatt of installed capacity. This drops to the lowest output during winter months at 4.12 kWh/day per kW, representing a 34% decrease from peak summer production. Spring and autumn provide moderate generation levels at 5.20 kWh/day and 5.10 kWh/day per kW respectively. Summer clearly represents the ideal time for solar generation at this location, followed closely by spring. The substantial winter dip means that sizing solar systems appropriately becomes important to ensure adequate electricity supply during the lower-production months.

Optimal Panel Installation

For maximum year-round energy production at Ilhabela, São Paulo, solar panels should be installed at a fixed tilt angle of 22 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting for daily solar potential.

Environmental Factors Affecting Solar Production

Several significant environmental factors could impact solar energy generation at this coastal Brazilian location:

• High humidity and salt air: Being an island location, Ilhabela experiences elevated humidity levels and salt-laden ocean breezes that can cause corrosion of solar panel frames, mounting hardware, and electrical connections
• Tropical storms and heavy rainfall: The region's climate includes intense rainfall periods that can reduce solar irradiance and potentially damage inadequately protected systems
• Coastal fog and marine layer: Morning fog and low-lying clouds common in coastal areas can significantly reduce early-day solar production

Preventative Installation Measures

To maximize energy production despite these challenges, several protective measures should be implemented during solar installation. Using marine-grade aluminum frames and stainless steel mounting hardware will resist salt corrosion effectively. All electrical connections should be sealed with weatherproof enclosures rated for high-humidity environments. Installing panels with adequate spacing allows for proper air circulation, reducing moisture buildup and helping panels operate at cooler, more efficient temperatures. A robust grounding system using corrosion-resistant materials becomes essential in this coastal environment. Regular maintenance scheduling should include frequent cleaning to remove salt deposits and inspection of seals and connections. Installing monitoring systems helps identify performance drops that might indicate weather-related issues requiring attention. Despite these environmental considerations, Ilhabela's solar potential remains viable for year-round energy generation with proper system design and maintenance protocols.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

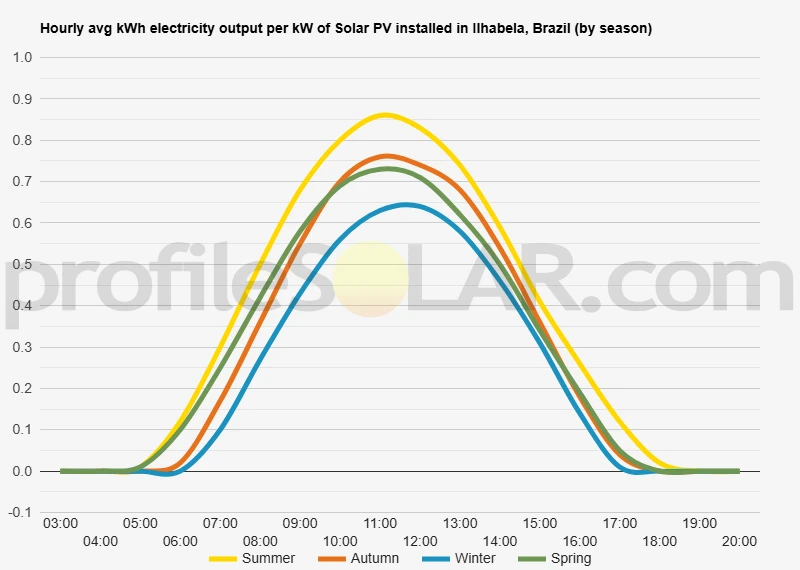

Solar output per kW of installed solar PV by season in Ilhabela

Seasonal solar PV output for Latitude: -23.8431, Longitude: -45.2651 (Ilhabela, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Ilhabela, Brazil

To maximize your solar PV system's energy output in Ilhabela, Brazil (Lat/Long -23.8431, -45.2651) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ilhabela, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ilhabela, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ilhabela, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ilhabela, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ilhabela, Brazil

Topographical Overview of Ilhabela

Ilhabela, located off the coast of São Paulo state in southeastern Brazil, is a mountainous island characterized by dramatic elevation changes and rugged terrain. The island forms part of the Serra do Mar mountain range that extends into the Atlantic Ocean, creating a landscape dominated by steep slopes, dense Atlantic rainforest, and narrow coastal plains. The terrain rises sharply from sea level to peaks exceeding 1,300 meters, with the highest point being Pico de São Sebastião. The island's topography is defined by ancient geological formations consisting primarily of granite and gneiss rock, which have been sculpted by millions of years of weathering and erosion. Deep valleys cut through the mountainous interior, creating a network of streams and waterfalls that flow toward the coast. The eastern side of the island faces the open Atlantic and features more exposed, windswept terrain, while the western side, facing the mainland, is more sheltered and contains most of the developed areas.

Coastal Plains and Development Patterns

The limited flat areas on Ilhabela are concentrated along the western coastline, where narrow coastal plains have formed between the mountains and the sea. These areas, particularly around the main town of Vila and the port area, represent the most accessible and developed portions of the island. The coastal plains rarely extend more than a few hundred meters inland before encountering steep mountain slopes covered in protected Atlantic rainforest. The northern and southern tips of the island contain some additional flat or gently sloping areas, though these are often rocky and less suitable for large-scale development. The interior of the island remains largely inaccessible due to the steep terrain and environmental protections, with much of the land designated as part of Ilhabela State Park.

Mainland Topography and Solar Potential

The mainland areas across the São Sebastião Channel from Ilhabela present significantly different topographical conditions that are far more favorable for large-scale solar installations. The coastal region around São Sebastião and Caraguatatuba features broader coastal plains and gently rolling hills that extend several kilometers inland from the shoreline. These areas offer extensive flat to moderately sloping terrain that would be well-suited to utility-scale solar photovoltaic installations. Moving further inland from the immediate coast, the topography transitions to the foothills of the Serra do Mar range, where agricultural lands and pastures occupy areas of suitable gradient for solar development. The Paraíba Valley, located approximately 50-80 kilometers inland from Ilhabela, represents particularly promising terrain for large solar installations. This region features extensive flat agricultural areas and gentle slopes that could accommodate massive solar arrays while maintaining good access to transmission infrastructure.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for significant solar photovoltaic installations near Ilhabela would be located on the mainland, particularly in the municipalities of São Sebastião, Caraguatatuba, and extending inland toward Taubaté and the broader Paraíba Valley region. These areas combine favorable topographical conditions with proximity to existing electrical transmission infrastructure and major transportation corridors. The flat to gently rolling agricultural lands between the coastal mountains and the Paraíba River offer ideal conditions for utility-scale solar farms. These areas typically feature gradients of less than 5%, adequate drainage, and sufficient space for large installations. The region's existing agricultural use means that land conversion would be more straightforward than in forested or environmentally sensitive areas. Additionally, some elevated plateau areas in the Serra da Mantiqueira, located further inland to the north and west, could provide excellent solar resources due to their elevation and reduced atmospheric interference, though these would require more substantial infrastructure development to connect to the grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
