Solar Energy Potential in Indaial, Santa Catarina, Brazil

Indaial, Santa Catarina, Brazil, located in the Southern Sub Tropics at latitude -27.0106 and longitude -49.2215, offers reasonable potential for solar energy generation throughout the year, though with significant seasonal variations. The location experiences its peak solar production during the summer months, generating an average of 6.22 kWh per day for each kilowatt of installed solar capacity. This drops considerably during autumn to 4.40 kWh/day, reaching its lowest point in winter with just 3.22 kWh/day, before recovering in spring to 4.68 kWh/day.

Seasonal Variations

The substantial difference between summer and winter production (nearly double) indicates that while this location can be productive year-round, system sizing would need to account for these seasonal fluctuations. Summer clearly represents the prime generating season, with spring following as the second most productive period. For maximum efficiency with fixed solar panels in Indaial, Santa Catarina, panels should be tilted at 24 degrees facing North. This specific angle has been calculated to optimize year-round energy production based on the location's position in the Southern Hemisphere.

Environmental Considerations

Several environmental factors could impact solar production in Indaial. The region experiences a humid subtropical climate with potential for:

• Heavy rainfall periods, particularly in summer months, which may temporarily reduce solar efficiency
• Morning fog in valley areas, especially during winter and autumn
• Occasional hailstorms that could physically damage panels

Preventative Measures

To maximize solar production despite these challenges, several preventative measures are recommended: Installing high-quality tempered glass panels with hail resistance ratings appropriate for the region can protect against storm damage. Elevating panels slightly higher than standard installations can help minimize morning fog interference. Additionally, implementing an effective panel cleaning schedule to address rain residue and potential dust accumulation will maintain optimal efficiency. A monitoring system that tracks daily production can help identify any unexpected drops in performance, allowing for prompt maintenance when needed. Given the significant winter production drop, supplementary energy sources or storage solutions might be worth considering for year-round energy independence.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

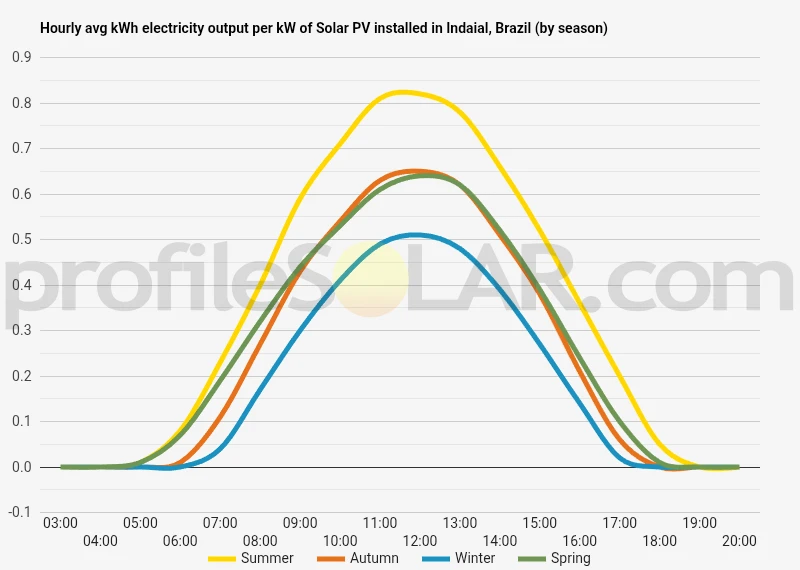

Solar output per kW of installed solar PV by season in Indaial

Seasonal solar PV output for Latitude: -27.0106, Longitude: -49.2215 (Indaial, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Indaial, Brazil

To maximize your solar PV system's energy output in Indaial, Brazil (Lat/Long -27.0106, -49.2215) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Indaial, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Indaial, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Indaial, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Indaial, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Indaial, Brazil

Indaial, Brazil is situated in a distinctive topographical region characterized by the transition between coastal plains and the higher elevations of the Serra do Mar mountain range. The landscape around Indaial features a varied terrain with undulating hills, river valleys, and more pronounced elevations as one moves westward toward the interior highlands of Santa Catarina state. The city itself sits in the Itajaí River valley, with the terrain gradually rising from the central areas toward the surrounding hills. The Itajaí River and its tributaries have carved natural valleys throughout the region, creating a network of waterways that influence the local topography. These river systems have formed alluvial plains in some sections, while in others, they've cut through more resistant rock formations, creating steeper valley walls.

Elevation Profile

The elevation around Indaial varies considerably, starting from approximately 60 meters above sea level in the valley floors to several hundred meters in the surrounding highlands. This variation creates numerous slopes with different orientations, which is a significant factor when considering potential solar energy development. The eastern portions of the region tend to have more gradual terrain as they transition toward the Atlantic coastal plains. Moving westward and northwestward from Indaial, the landscape becomes increasingly rugged as it approaches the higher sections of the Serra do Mar, with some peaks reaching over 800 meters in the broader region.

Vegetation and Land Cover

The natural vegetation around Indaial is part of the Atlantic Forest (Mata Atlântica) biome, though much of the original forest has been altered by human activities. Today, the landscape presents a mosaic of secondary forest growth, agricultural lands, pastures, and urban development. The remaining forested areas are typically found on steeper slopes and higher elevations where agriculture and development have been more challenging.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several factors related to topography must be considered. The most suitable areas near Indaial would include: The gently sloping terrains found in the broader Itajaí valley offer considerable potential for solar development. These areas combine relatively flat land with good solar exposure, minimizing the earthwork required for installation while maximizing energy capture. Particularly promising are the elevated plateaus and gradual slopes with northern exposure (in the Southern Hemisphere, north-facing slopes receive more direct sunlight). The transitional zones between the valley floor and the steeper hillsides often feature terraced landscapes that could be utilized for solar arrays. These mid-elevation areas frequently have less agricultural value while offering improved solar access compared to valley bottoms that might experience more morning fog or mountain shadows. Several of the broader hilltops in the region present opportunities for solar development, especially those that have already been cleared of dense vegetation. These elevated positions often benefit from reduced shadowing effects from surrounding terrain and potentially less atmospheric interference. Areas to avoid would include the steepest hillsides, which would require excessive grading and present erosion concerns, as well as the lowest portions of river valleys that might be subject to seasonal flooding or extended morning fog conditions that could reduce solar efficiency. The northwestern sectors beyond Indaial, where the terrain begins to flatten toward the higher plateaus of Santa Catarina's interior, may offer some of the most practical large-scale solar potential. These areas combine adequate flatness with elevation advantages while often having less competition from intensive agriculture or dense urban development. Any solar development would need to consider the region's precipitation patterns, as Santa Catarina experiences relatively consistent rainfall throughout the year, which affects both construction logistics and the regular cleaning requirements for solar panels.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
