Ipanema, Minas Gerais, Brazil represents an excellent location for year-round solar energy generation, benefiting from its tropical climate where consistent sunlight is available throughout most of the year. Located in the Southern Hemisphere tropics, this area experiences seasons characterized more by wet and dry periods rather than the dramatic temperature variations seen in temperate regions.

Solar Energy Production Potential

The solar energy output at this location shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 6.11 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.19 kWh/day, while autumn produces 5.57 kWh/day. Winter shows the lowest output at 4.44 kWh/day, though this still represents decent solar production compared to many locations worldwide. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 18 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant factors in the Ipanema area can impact solar energy production and require careful consideration during installation:

• Salt air corrosion: Being a coastal location, the ocean breeze carries salt particles that can corrode solar panel frames, mounting systems, and electrical components over time
• High humidity: Tropical humidity levels can affect electrical connections and promote corrosion of metal components
• Heavy rainfall during wet season: Intense tropical downpours can reduce solar output during rainy periods and may cause water infiltration issues
• Strong coastal winds: Ocean winds can stress mounting systems and potentially damage panels if not properly secured

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation. Using marine-grade aluminum frames and stainless steel mounting hardware will resist salt corrosion effectively. All electrical connections should be sealed with waterproof enclosures and marine-grade sealants to prevent moisture infiltration. Installing panels with adequate drainage systems ensures rainwater flows off quickly without pooling. Mounting systems must be engineered to withstand high wind loads typical of coastal areas, with secure anchoring appropriate for the local building structure. Regular maintenance schedules should include cleaning panels of salt residue and inspecting seals and connections. Selecting solar panels and inverters with high IP (Ingress Protection) ratings ensures better resistance to moisture and salt exposure. Additionally, applying anti-corrosive coatings to mounting hardware and maintaining proper ventilation around electrical components will extend system lifespan and maintain optimal energy production in this tropical coastal environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

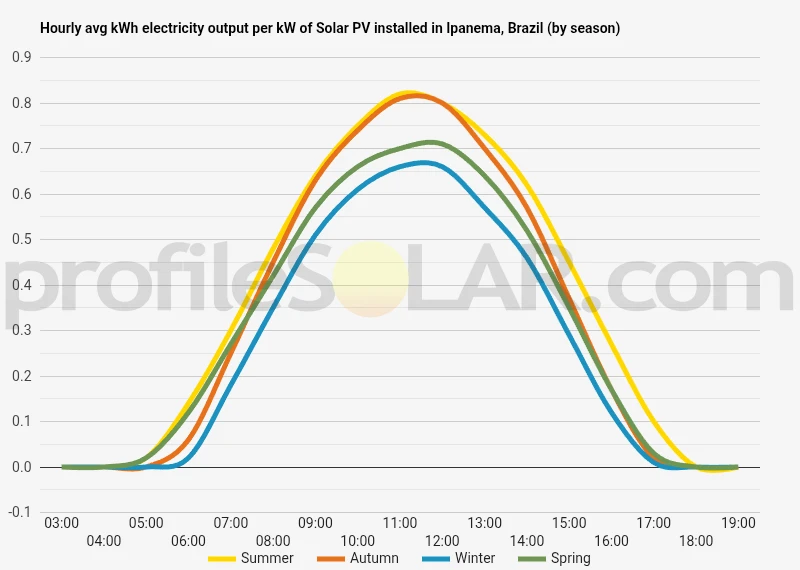

Solar output per kW of installed solar PV by season in Ipanema

Seasonal solar PV output for Latitude: -19.7586, Longitude: -41.7685 (Ipanema, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Ipanema, Brazil

To maximize your solar PV system's energy output in Ipanema, Brazil (Lat/Long -19.7586, -41.7685) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ipanema, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ipanema, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ipanema, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ipanema, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ipanema, Brazil

Topographical Features of Ipanema and Surrounding Areas

Ipanema sits along Brazil's Atlantic coastline in Rio de Janeiro, positioned between the iconic beaches and the dramatic mountainous terrain that defines this region. The immediate area features a relatively flat coastal plain that extends inland for several kilometers before encountering the steep granite peaks and ridges that characterize Rio's distinctive landscape. The famous beach of Ipanema itself lies at sea level, with the urban development gradually rising as it moves away from the ocean.

The topography becomes increasingly complex moving inland from the coast. Rolling hills and steep-sided mountains dominate the landscape, with elevations rising sharply from the coastal plain to peaks exceeding 1,000 meters. These granite formations, part of the larger Atlantic Forest mountain range, create a series of valleys, ridges, and plateaus that significantly influence local weather patterns and development opportunities.

The Lagoa Rodrigo de Freitas, a large saltwater lagoon located just inland from Ipanema, represents one of the few substantial flat areas in the immediate vicinity. This lagoon is surrounded by relatively level terrain before the land begins its ascent toward the surrounding peaks. The area experiences a tropical climate with distinct wet and dry seasons, and the mountainous topography creates microclimates throughout the region.

Optimal Areas for Large-Scale Solar Development

The coastal plain extending north and west from Ipanema presents the most favorable topography for large-scale solar photovoltaic installations. These areas offer relatively flat terrain with minimal grading requirements, reducing construction costs and complexity. The flat coastal zones also provide easier access for equipment transport and maintenance operations, crucial factors for commercial solar development.

Moving further inland, the Baixada Fluminense region, located northwest of Rio de Janeiro city, contains extensive areas of gently rolling terrain and former agricultural land that would be well-suited for utility-scale solar projects. This area benefits from lower land costs compared to the premium coastal locations while maintaining good transportation links to major population centers and electrical grid infrastructure.

The higher elevation plateaus found throughout the mountainous interior, while requiring more challenging access, offer excellent solar exposure due to their elevation above coastal fog and reduced atmospheric interference. However, these locations would require significant infrastructure investment and careful environmental consideration due to their location within or adjacent to protected Atlantic Forest areas.

Industrial zones and brownfield sites around the greater Rio metropolitan area provide another category of suitable locations. These areas often feature existing electrical infrastructure and transportation access while avoiding conflicts with residential development or environmentally sensitive areas. Former mining sites and degraded agricultural land in the region could be particularly well-suited for solar development, providing economic revitalization opportunities for previously impacted areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
