Iraquara, Bahia, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -12.2868, -41.5884, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Iraquara demonstrates strong and relatively consistent performance across all seasons. Spring emerges as the peak production period, generating 6.32 kWh per day per kW of installed solar capacity. Autumn follows closely with 6.03 kWh/day per kW, while summer produces 5.92 kWh/day per kW. Even during the lowest production period in winter, the location still generates a respectable 5.15 kWh/day per kW. This seasonal pattern shows only moderate variation, with the difference between the highest and lowest production months being approximately 23%. Such consistency makes Iraquara highly suitable for solar installations, as energy output remains predictable and substantial throughout the year.

Optimal Panel Configuration

For maximum year-round solar energy production at this location, solar panels should be installed at a fixed tilt angle of 12 degrees facing north. This relatively shallow angle reflects the location's proximity to the equator and has been calculated to optimize total annual energy output by accounting for the sun's path throughout the year and seasonal variations in solar irradiance.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Iraquara, Bahia, though most can be effectively managed with proper planning and installation techniques. The tropical climate brings significant rainfall during wet seasons, which can reduce solar output during heavy downpours and create long-term maintenance challenges. However, rain also provides natural cleaning for solar panels, helping to remove dust and debris that accumulate during dry periods. Dust accumulation during dry seasons represents a more persistent challenge, as the fine particles common in Brazil's interior regions can create a film on panel surfaces that reduces light transmission and energy output. High humidity levels throughout much of the year can also contribute to faster degradation of electrical components if not properly protected.

Preventative Measures and Solutions

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate drainage systems and slight tilting to prevent water pooling during heavy rains
• Use high-quality weatherproof enclosures and sealing for all electrical components to protect against humidity
• Implement regular cleaning schedules during dry seasons to remove dust buildup
• Choose solar panels and inverters specifically rated for tropical climates with high humidity and temperature variations
• Ensure proper ventilation around panels to prevent overheating and improve efficiency

The consistent solar resource availability and manageable environmental challenges make Iraquara a highly favorable location for solar photovoltaic installations. With appropriate system design and maintenance practices, solar installations at this location can achieve excellent long-term performance and energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

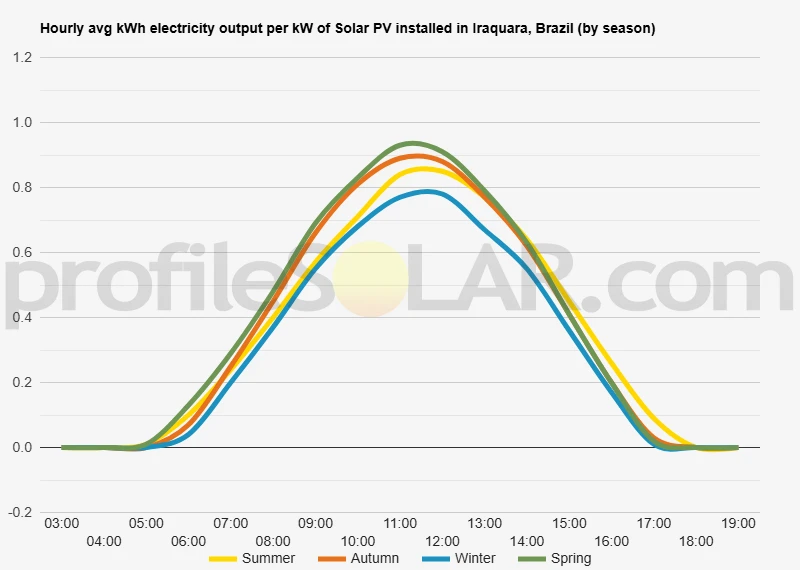

Solar output per kW of installed solar PV by season in Iraquara

Seasonal solar PV output for Latitude: -12.2868, Longitude: -41.5884 (Iraquara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° North in Iraquara, Brazil

To maximize your solar PV system's energy output in Iraquara, Brazil (Lat/Long -12.2868, -41.5884) throughout the year, you should tilt your panels at an angle of 12° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Iraquara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Iraquara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	18° North in Autumn	28° North in Winter	7° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Iraquara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Iraquara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Iraquara, Brazil

Topographical Features of the Iraquara Region

The area surrounding Iraquara in Bahia, Brazil sits within the distinctive landscape of the Chapada Diamantina region, characterized by elevated plateaus, dramatic escarpments, and extensive cave systems. This municipality occupies a position on the central plateau at moderate elevation, where the terrain transitions between higher mountainous areas to the east and lower plains extending westward.

The immediate vicinity of Iraquara features predominantly flat to gently rolling terrain punctuated by occasional limestone outcroppings and low hills. The underlying geology consists largely of sedimentary rocks, particularly limestone formations that have created an extensive karst landscape with numerous caves, sinkholes, and underground drainage systems. These geological features contribute to the area's reputation as one of Brazil's premier speleological destinations.

To the east of Iraquara, the landscape becomes more rugged as it approaches the higher elevations of the Chapada Diamantina proper, where steep escarpments and isolated peaks create dramatic topographical contrasts. Westward from the town, the terrain gradually descends toward the São Francisco River valley, creating broad, relatively flat expanses of caatinga vegetation typical of Brazil's semi-arid interior.

Optimal Areas for Large-Scale Solar Development

The western and southwestern areas extending from Iraquara toward the São Francisco valley present the most favorable conditions for large-scale solar photovoltaic installations. These zones offer extensive flat terrain with minimal topographical obstacles, reducing both construction complexity and costs associated with site preparation and equipment installation.

The broad plateau areas northwest of Iraquara provide particularly attractive development opportunities, as they combine relatively level topography with good accessibility via existing road networks. These locations benefit from stable geological conditions while avoiding the more sensitive karst features that characterize areas closer to the town center.

Areas to the immediate south and southwest of Iraquara also show strong potential for solar development, where the terrain opens into wider valleys with gentle slopes that can accommodate large arrays while maintaining efficient drainage patterns. The vegetation in these zones consists primarily of sparse caatinga scrubland, which presents fewer environmental constraints compared to more densely forested areas.

Developers should generally avoid the eastern approaches to Iraquara, where increasing elevation changes and rocky outcroppings create less suitable conditions for large-scale installations. Similarly, areas with high concentrations of cave systems and karst features may present geological stability concerns that could complicate foundation requirements and long-term structural integrity of solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
