Itabirinha de Mantena, Brazil presents a favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -18.5298, -41.2537, this region benefits from consistent sunlight throughout most of the year, with seasonal variations typically characterized by wet and dry periods rather than the temperature-based seasons found in temperate climates.

Seasonal Solar Production Performance

The solar energy output at this location shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 6.08 kWh per day per kW of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best performing season at 5.25 kWh/day per kW, while autumn produces 5.51 kWh/day per kW. Winter shows the lowest output at 4.39 kWh/day per kW, though this still represents reasonable solar production levels. For maximum year-round energy production from a fixed solar panel installation at this location, panels should be tilted at 17 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Itabirinha de Mantena. The tropical climate brings distinct wet and dry seasons, with the wet season likely contributing to the reduced winter solar output through increased cloud cover and atmospheric moisture. Heavy rainfall during wet periods can temporarily reduce solar panel efficiency and may cause water accumulation if drainage systems are inadequate. High humidity levels typical of tropical regions can lead to accelerated degradation of solar equipment and increased maintenance requirements. The combination of heat and moisture creates conditions favorable for corrosion of metal components and potential electrical issues if proper sealing is not maintained. Dust and particulate matter can accumulate on solar panels, particularly during dry seasons, reducing their efficiency by blocking sunlight from reaching the photovoltaic cells. This issue may be compounded by local agricultural activities or unpaved roads that generate airborne particles.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation:

• Install panels with adequate drainage systems and slight tilting beyond the optimal 17 degrees if necessary to prevent water pooling
• Use high-quality weatherproof sealing and corrosion-resistant materials designed for tropical climates
• Implement regular cleaning schedules, particularly during and after dry seasons when dust accumulation is highest
• Ensure proper ventilation around panels to reduce heat buildup and moisture retention
• Select solar equipment specifically rated for high humidity and temperature variations

Despite these environmental considerations, Itabirinha de Mantena remains a viable location for solar energy generation, with consistent tropical sunlight providing reliable energy production throughout the year when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

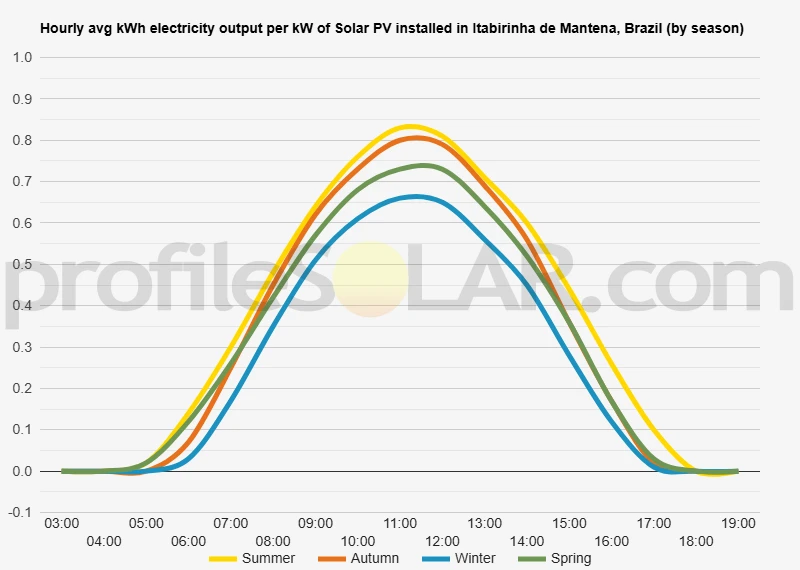

Solar output per kW of installed solar PV by season in Itabirinha De Mantena

Seasonal solar PV output for Latitude: -18.5298, Longitude: -41.2537 (Itabirinha De Mantena, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Itabirinha De Mantena, Brazil

To maximize your solar PV system's energy output in Itabirinha De Mantena, Brazil (Lat/Long -18.5298, -41.2537) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itabirinha De Mantena, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itabirinha De Mantena, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	24° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itabirinha De Mantena, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itabirinha De Mantena, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itabirinha De Mantena, Brazil

Topographical Features of Itabirinha de Mantena

Itabirinha de Mantena sits within the eastern highlands of Minas Gerais state, positioned in a region characterized by rolling hills and moderate elevation changes. The terrain around this municipality displays the typical undulating landscape of the Mata Atlântica transitional zone, where the Brazilian Highlands gradually descend toward the coastal lowlands of Espírito Santo to the east.

The local topography features a series of rounded hills and shallow valleys, with elevations generally ranging from 200 to 600 meters above sea level. These gentle slopes are remnants of ancient geological formations that have been weathered and eroded over millions of years, creating a landscape that is neither dramatically mountainous nor completely flat. The area exhibits the characteristic red clay soils typical of this part of Minas Gerais, which developed from the weathering of crystalline rocks.

Water drainage in the region follows natural valley systems, with several small streams and tributaries flowing generally eastward toward the Doce River basin. These waterways have carved modest valleys between the hills, creating a pattern of ridges and depressions that defines much of the local terrain. The vegetation varies from cleared agricultural land to patches of secondary Atlantic Forest regrowth on steeper slopes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Itabirinha de Mantena would be the broader hilltops and gentle south-facing slopes that characterize much of the surrounding countryside. These elevated areas typically offer excellent exposure to sunlight throughout the day while providing relatively stable ground conditions for large-scale construction projects.

The rolling plateau areas to the north and west of the municipality present particularly favorable conditions, as they combine adequate elevation with gentler gradients that minimize construction challenges. These locations also tend to have fewer trees and less dense vegetation, reducing the environmental impact and clearing costs associated with solar farm development.

Areas with slopes facing south or southwest would be especially advantageous, as they naturally orient toward the sun's path across the sky in the Southern Hemisphere. The moderate elevation changes in the region mean that most potential sites would not require extensive grading or terracing, keeping development costs manageable while maintaining good solar exposure.

The cleared agricultural lands scattered throughout the area represent another category of promising sites for solar development. These locations already have minimal vegetation and established access routes, making them potentially easier and less expensive to develop. Many of these cleared areas occupy favorable topographical positions on ridge tops or gentle slopes that would naturally complement solar panel installation.

Areas to avoid would include the steeper valley sides and narrow drainage corridors, where the combination of challenging terrain and potential flooding risks would make large-scale solar development impractical. Similarly, the remaining forested areas on steeper slopes would present both environmental concerns and significant topographical challenges for construction activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
