Solar Energy Potential in Itabirito, Minas Gerais, Brazil

Itabirito, Minas Gerais, Brazil, located at coordinates -20.2362, -43.7802, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations defined more by wet and dry periods than dramatic temperature changes. The solar energy production potential at this location shows moderate seasonal fluctuation. During summer months, solar panels can generate approximately 5.99 kWh per day for each kilowatt of installed capacity. This drops slightly to 5.44 kWh/day during autumn and reaches its lowest point in winter at 4.84 kWh/day. Spring performance recovers to 5.47 kWh/day.

Seasonal Performance

Summer stands out as the most productive period for solar generation in Itabirito, Minas Gerais, with nearly 6 kWh of electricity produced daily per kilowatt of installed capacity. Winter shows about a 19% reduction compared to summer values, but still maintains respectable output. The relatively small variation between seasons (only about 1.15 kWh difference between the highest and lowest seasonal averages) indicates that Itabirito offers reliable solar potential year-round. For fixed solar panel installations at this location, the ideal tilt angle is 19 degrees facing North. This specific angle has been calculated to maximize total annual energy production based on the site's latitude and solar elevation patterns throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar production in Itabirito:

• Seasonal rainfall: Being in a tropical region, Itabirito experiences distinct wet seasons which can reduce solar efficiency due to cloud cover. Installing panels with high-efficiency ratings in diffuse light conditions can help mitigate this issue.
• Dust accumulation: The region's mining activities (Itabirito is known for iron ore mining) can generate significant dust, which may settle on panels and reduce efficiency. Regular cleaning schedules and possibly automated cleaning systems are recommended.
• High humidity: Tropical humidity can accelerate degradation of electrical components. Using marine-grade materials and ensuring proper sealing of all connections can extend system lifespan.

Despite these considerations, the consistent year-round solar radiation makes Itabirito an excellent location for solar PV installations. With proper system design accounting for the local conditions and the recommended 19-degree northward tilt, solar installations here can provide reliable renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

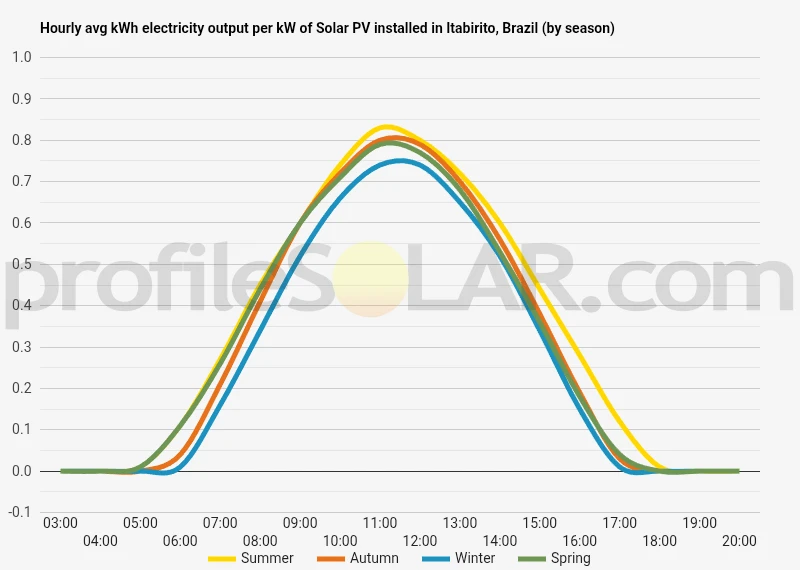

Solar output per kW of installed solar PV by season in Itabirito

Seasonal solar PV output for Latitude: -20.2362, Longitude: -43.7802 (Itabirito, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Itabirito, Brazil

To maximize your solar PV system's energy output in Itabirito, Brazil (Lat/Long -20.2362, -43.7802) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itabirito, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itabirito, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itabirito, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itabirito, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itabirito, Brazil

The region surrounding Itabirito, Brazil presents a diverse and challenging topography characteristic of the Iron Quadrangle (Quadrilátero Ferrífero) in the state of Minas Gerais. This area features a complex arrangement of mountains, valleys, and plateaus that have been shaped by both natural geological processes and extensive mining activities over centuries.

Topographical Features

Itabirito sits within a mountainous region with significant elevation changes. The landscape is dominated by the southern portion of the Serra do Espinhaço mountain range, with numerous peaks and ridges creating a rugged terrain. Elevations in the area typically range from approximately 700 to 1,500 meters above sea level, creating substantial vertical relief throughout the region. The area exhibits numerous valleys carved by river systems, primarily the Rio das Velhas watershed. These valleys often have steep sides and relatively narrow bottoms, creating corridors between the more elevated terrain. The combination of mountains and valleys results in a landscape with numerous slopes facing various directions, which influences sun exposure patterns throughout the day. Iron-rich mountains are a defining characteristic of the region, with distinctive reddish soil and exposed rock formations. These iron formations contribute to the undulating nature of the landscape and have made the area economically significant for mining operations. The presence of these iron deposits has led to substantial anthropogenic modification of the natural topography through open-pit mining, creating artificial plateaus, excavations, and tailings areas.

Vegetation and Land Cover

The natural vegetation in the Itabirito region consists primarily of transitional zones between Atlantic Forest (Mata Atlântica) and cerrado (Brazilian savanna) ecosystems. However, much of the original vegetation has been altered by human activities, including mining, agriculture, and urban development. The remaining natural areas tend to be concentrated on steeper slopes and protected areas where development has been limited.

Potential Areas for Solar PV Development

When considering locations for large-scale solar photovoltaic installations near Itabirito, several factors related to topography must be evaluated. Ideal areas would feature relatively flat terrain, good solar exposure (particularly northward-facing in the Southern Hemisphere), minimal shading from surrounding mountains, and accessibility for construction and maintenance. The modified landscapes resulting from mining activities present interesting opportunities. Reclaimed mining areas often feature artificially flattened terrain that could potentially accommodate large solar arrays. These post-mining landscapes frequently have limited alternative uses and minimal natural vegetation, potentially reducing environmental concerns about new development. Plateau areas to the south and southwest of Itabirito offer more consistent, less rugged terrain that could support solar development. These higher elevation areas typically have good solar exposure and fewer obstacles that would create shading issues. The plateaus between Itabirito and Ouro Preto, for example, combine favorable topography with proximity to existing infrastructure. The gentler slopes and broader valley areas along the Rio das Velhas corridor, particularly to the north of Itabirito, also merit consideration. While these areas may have more competing land uses including agriculture and settlement, they offer relatively flat terrain and good accessibility to transportation networks. Areas to avoid would include the steepest mountain slopes, deeply shaded valleys (particularly those with north-facing slopes in the Southern Hemisphere), and locations with significant forest cover or ecological importance. The most rugged portions of the Serra do Espinhaço range to the east would generally be unsuitable for large-scale solar development due to construction challenges, environmental considerations, and potential shading issues. Any solar development in the region would need to carefully consider the balance between topographical suitability and other factors including land ownership, current use patterns, environmental protections, and proximity to transmission infrastructure. The complex mixture of public and private lands, including mining concessions, creates a complicated landscape for potential development that extends beyond purely topographical considerations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
