Itabuna, Bahia, Brazil represents a good location for year-round solar energy generation, benefiting from its tropical position where consistent sunlight is available throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output data for Itabuna shows relatively strong performance across all seasons. Autumn delivers the highest energy production at 5.95 kWh per day per kW of installed solar capacity, closely followed by Spring at 5.90 kWh per day. Summer provides solid output at 5.68 kWh per day, while Winter shows the lowest production at 4.67 kWh per day per kW installed. The ideal times for solar generation at this location are during the Autumn and Spring months, when atmospheric conditions and sun angles combine to create optimal energy production conditions. Even during the weakest production period in Winter, the location still generates nearly 80% of its peak seasonal output, demonstrating the consistency that tropical locations can offer for solar installations.

Optimal Panel Installation

For fixed panel installations at Itabuna, Bahia, the ideal tilt angle to maximize total year-round solar production is 14 degrees facing North. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel positioning, and weighting these calculations using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several significant local factors could impact solar energy production in Itabuna and require careful consideration during installation planning. Tropical Rainfall and Humidity The tropical climate brings intense seasonal rainfall that can reduce solar output during wet periods. High humidity levels throughout the year can also affect panel efficiency and create maintenance challenges. Installing panels with adequate drainage systems and choosing equipment rated for high-humidity environments helps mitigate these issues. Dust and Vegetation Growth The combination of dry periods followed by wet seasons creates conditions where dust accumulation and rapid vegetation growth can shade or soil solar panels. Regular cleaning schedules and maintaining clear areas around installations are essential preventative measures. Severe Weather Events Tropical storms and high winds can pose risks to solar installations. Using robust mounting systems designed for high wind loads and ensuring proper structural engineering can help panels withstand severe weather conditions.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective:

• Install panels with self-cleaning coatings or easy-access designs for regular maintenance
• Use corrosion-resistant materials and waterproof electrical connections rated for tropical conditions
• Implement proper grounding and surge protection systems for electrical safety during storms
• Design mounting systems with adequate ventilation to reduce heat buildup and improve efficiency
• Plan vegetation management zones around installations to prevent shading

Despite these environmental considerations, Itabuna's consistent tropical sunlight and relatively stable year-round solar production make it a viable location for solar energy projects when proper installation practices address the local climate challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

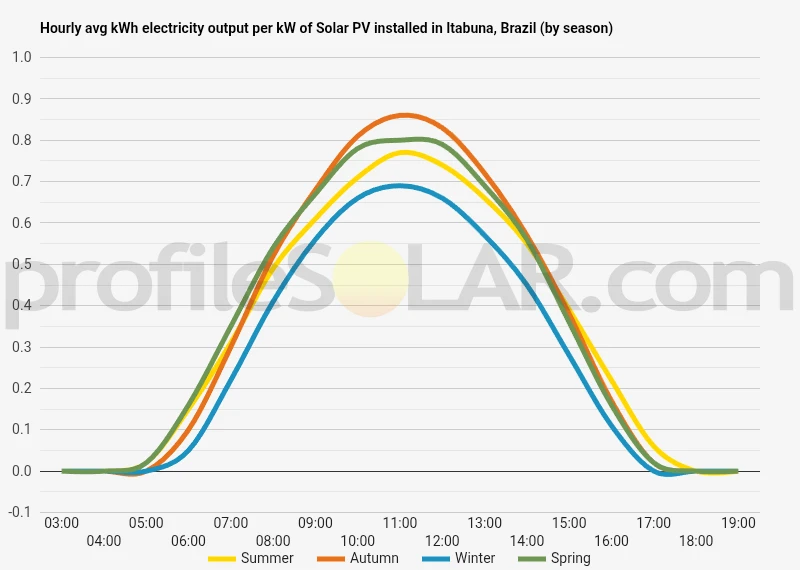

Solar output per kW of installed solar PV by season in Itabuna

Seasonal solar PV output for Latitude: -14.785, Longitude: -39.2785 (Itabuna, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° North in Itabuna, Brazil

To maximize your solar PV system's energy output in Itabuna, Brazil (Lat/Long -14.785, -39.2785) throughout the year, you should tilt your panels at an angle of 14° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itabuna, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itabuna, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	20° North in Autumn	30° North in Winter	9° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itabuna, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itabuna, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itabuna, Brazil

Topographical Features of the Itabuna Region

Itabuna sits in the southern portion of Bahia state, Brazil, within a region characterized by gently rolling hills and relatively modest elevation changes. The city itself is positioned at approximately 50 meters above sea level, nestled in an area where the coastal lowlands begin their gradual transition toward the interior highlands of Bahia. The surrounding landscape features undulating terrain with slopes that are generally gentle to moderate, creating a topography that is neither completely flat nor dramatically mountainous.

The region forms part of the broader Atlantic Forest biome, though much of the original forest cover has been converted to agricultural use, particularly cacao plantations that have historically defined the local economy. The terrain consists of sedimentary formations overlying crystalline basement rocks, creating soils that drain well while still retaining adequate moisture for vegetation. Small valleys carved by seasonal streams and tributaries of larger river systems create a network of gentle depressions between the low hills.

Moving inland from Itabuna toward the west and northwest, the elevation gradually increases as the landscape approaches the foothills of the Chapada Diamantina region. To the east, the terrain slopes more gradually toward the Atlantic coastal plain. This positioning creates a varied topographical setting where different microclimates and drainage patterns exist within relatively short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations in the Itabuna vicinity would be the areas of gently sloping terrain found to the west and southwest of the city. These zones offer the ideal combination of adequate elevation for drainage, minimal grading requirements, and sufficient open space for large arrays. The gentle slopes in these areas, typically ranging from 2 to 8 percent grade, provide natural drainage while avoiding the complications and costs associated with steep terrain.

Areas that have been previously cleared for agriculture, particularly former pastureland and areas where cacao cultivation has been abandoned, present excellent opportunities for solar development. These locations already have established access routes and often possess cleared vegetation, reducing initial site preparation costs. The rolling hills southwest of Itabuna, where elevations range between 80 and 150 meters above sea level, offer particularly attractive sites due to their combination of good drainage, minimal shading from surrounding topography, and reasonable accessibility.

The flatter areas closer to the coast, while seemingly attractive for their level terrain, may present challenges related to seasonal flooding and higher humidity levels that could affect equipment performance and maintenance requirements. Conversely, the higher elevation areas further inland, while offering excellent drainage and potentially clearer atmospheric conditions, may involve greater infrastructure costs for grid connection and site access.

Sites positioned on south-facing slopes of the gentle hills in the region would be particularly well-suited for solar installations, as they can take advantage of optimal sun angles throughout the day while benefiting from the natural drainage these elevated positions provide. The key is finding locations where the topography provides enough slope for water management without creating excessive grading costs or installation complications.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
