The location of Itaguara, Minas Gerais, Brazil, situated in the tropics, offers a promising environment for solar energy generation throughout the year. This area experiences consistent sunlight and is characterized more by wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

Solar panel performance in Itaguara varies slightly across the meteorological seasons: Summer sees the highest energy output at 6.32 kWh per day for each kilowatt of installed solar capacity. Spring follows with 5.96 kWh/day, then Autumn with 5.80 kWh/day, and Winter with the lowest output at 5.21 kWh/day. Despite the variations, the difference between the highest and lowest seasonal outputs is relatively small, indicating a stable year-round solar energy potential. This consistency is a significant advantage for solar PV installations in Itaguara.

Optimal Panel Tilt

For fixed panel installations in Itaguara, Minas Gerais, the ideal tilt angle to maximize year-round solar production is 20 degrees facing North. This angle has been calculated considering the location's latitude, daily solar elevation angles, and weighted by NASA's solar irradiance data.

Environmental Considerations

While Itaguara's tropical location is generally favorable for solar energy production, there are some environmental factors to consider: 1. Rainfall: The region experiences a wet season, which could potentially reduce solar output due to cloud cover. However, this is typically offset by increased energy production during the dry season. 2. Dust and pollen: These can accumulate on solar panels, reducing their efficiency. Regular cleaning and maintenance can mitigate this issue. To maximize energy production, preventative measures such as installing self-cleaning panels or implementing a regular cleaning schedule can be beneficial. Additionally, using high-quality, weather-resistant panels can help ensure optimal performance in varying weather conditions. In conclusion, Itaguara's location presents a highly favorable environment for solar PV installations, with consistent year-round energy production potential and manageable environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

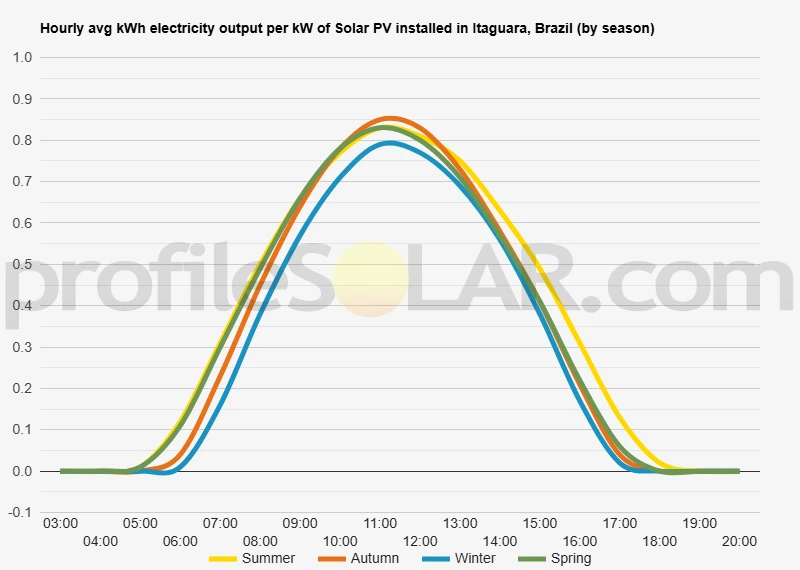

Solar output per kW of installed solar PV by season in Itaguara

Seasonal solar PV output for Latitude: -20.381, Longitude: -44.5472 (Itaguara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Itaguara, Brazil

To maximize your solar PV system's energy output in Itaguara, Brazil (Lat/Long -20.381, -44.5472) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itaguara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itaguara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itaguara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itaguara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itaguara, Brazil

The topography around Itaguara, Brazil, is characterized by a diverse landscape of rolling hills, valleys, and plateaus. This region, located in the southeastern part of Minas Gerais state, is part of the Brazilian Highlands, which feature undulating terrain with varying elevations. The area surrounding Itaguara is predominantly hilly, with gentle to moderate slopes interspersed with flatter areas. The local landscape is marked by a mix of open grasslands, known as campos, and patches of Atlantic Forest remnants. These forests are typically found in the more rugged terrain and along water courses. The region's elevation generally ranges from about 800 to 1,200 meters above sea level, contributing to its pleasant climate and diverse ecosystem. Rivers and streams crisscross the area, carving out small valleys and creating a network of waterways that drain into larger river systems. This hydrographic feature not only shapes the topography but also influences the local agriculture and land use patterns.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar farms in this region would be: Flat or gently sloping areas: The flatter plateaus and less steep hillsides around Itaguara would be prime candidates for solar PV installations. These areas offer easier construction and maintenance access, as well as more uniform solar exposure throughout the day. South-facing slopes: In the Southern Hemisphere, north-facing slopes receive more direct sunlight. However, in this region, some south-facing slopes with gradual inclines could also be suitable, especially if they offer large, uninterrupted areas for panel placement. Areas with minimal forest cover: Regions that are already cleared of dense vegetation, such as existing pastures or agricultural lands, would be preferable. This approach minimizes environmental impact and reduces the need for extensive land clearing. Locations near existing infrastructure: Areas close to roads and power transmission lines would be advantageous for easier grid connection and maintenance access. Higher elevation sites: Some of the higher elevation plateaus in the region might offer better solar exposure and potentially cooler temperatures, which can improve solar panel efficiency. It's important to note that while the topography around Itaguara presents several suitable options for solar PV development, any large-scale installation would require detailed site-specific assessments. These would include studies of local weather patterns, soil conditions, and environmental impact evaluations to ensure optimal placement and minimal ecological disruption.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
