Itaobim, Minas Gerais, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region of southeastern Brazil, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than by the dramatic temperature and daylight changes seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Itaobim demonstrates strong and relatively stable production throughout the year. Spring emerges as the peak season with 5.99 kWh per day per kW of installed solar capacity, closely followed by summer at 5.85 kWh/day. Autumn maintains good production levels at 5.61 kWh/day, while winter shows the lowest but still respectable output of 4.67 kWh/day per kW installed. This seasonal pattern reflects the typical tropical solar energy cycle, where the highest production occurs during the warmer months when the sun's path brings it closer to the region's latitude. Even during the winter months, production remains at nearly 80% of peak capacity, making this location highly suitable for consistent year-round solar energy generation. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round production is 16 degrees facing north. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these calculations using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors in Itaobim could potentially impact solar energy production and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season typically featuring heavy rainfall, high humidity, and increased cloud cover. These conditions can temporarily reduce solar irradiance and create challenges for solar panel performance. Extended periods of cloud cover during intense rainy seasons may cause notable dips in energy production. High humidity levels throughout much of the year can lead to moisture-related issues, including potential corrosion of electrical components and reduced efficiency due to condensation on panel surfaces. The combination of heat and humidity also creates an environment where dust and organic matter can accumulate more readily on solar panels. Dust accumulation presents another significant challenge, particularly during dry seasons when airborne particles settle on panel surfaces and create a barrier that reduces light transmission and overall system efficiency.

Preventative Measures for Optimal Performance

Several installation and maintenance strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate ventilation spacing to promote air circulation and reduce heat buildup
• Use high-quality mounting systems with corrosion-resistant materials suitable for tropical climates
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation peaks
• Choose solar panels and inverters specifically rated for high-humidity tropical environments
• Install proper drainage systems to prevent water pooling around equipment

Regular maintenance becomes particularly important in this climate. Establishing a cleaning routine that increases in frequency during dusty periods and ensures panels remain free of debris will help maintain optimal energy production. Additionally, using electrical components with appropriate weather sealing and humidity ratings will extend system lifespan and maintain consistent performance. Despite these environmental considerations, Itaobim's strong and consistent solar resource makes it a highly favorable location for solar PV installations when proper planning and maintenance practices are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

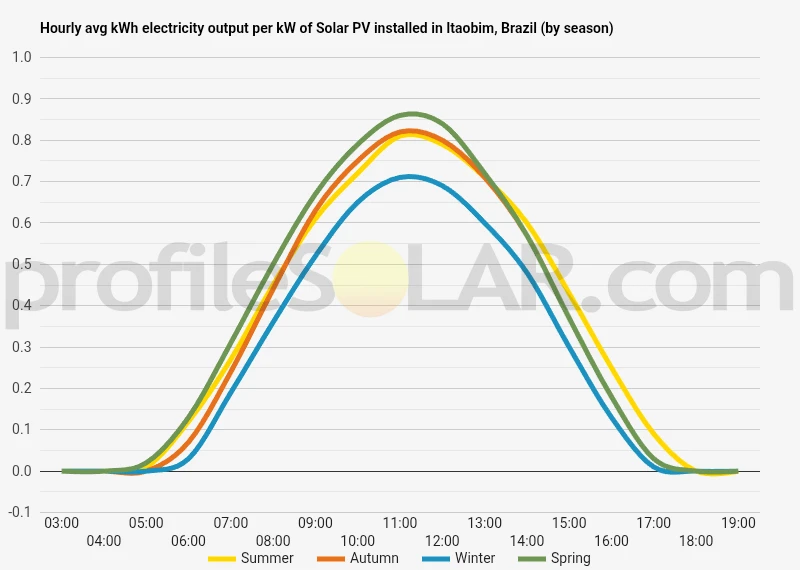

Solar output per kW of installed solar PV by season in Itaobim

Seasonal solar PV output for Latitude: -16.5633, Longitude: -41.5349 (Itaobim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Itaobim, Brazil

To maximize your solar PV system's energy output in Itaobim, Brazil (Lat/Long -16.5633, -41.5349) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itaobim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itaobim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	22° North in Autumn	32° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itaobim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itaobim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itaobim, Brazil

Topographical Features of the Itaobim Region

Itaobim is situated in the northeastern part of Minas Gerais state, Brazil, within the Jequitinhonha Valley region. The area is characterized by gently rolling hills and undulating terrain typical of the Brazilian interior plateau. The landscape consists primarily of low-elevation hills with gradual slopes, interspersed with broader valley floors and occasional steeper ridgelines.

The region sits at a moderate elevation, generally ranging between 200 to 600 meters above sea level. The topography is dominated by weathered crystalline rocks and sedimentary formations that have created a relatively stable geological foundation. The terrain features smooth, rounded hillsides that have been shaped by centuries of erosion, creating a landscape with gentle gradients rather than dramatic elevation changes.

The Jequitinhonha River system influences much of the local topography, with its tributaries carving shallow valleys throughout the region. These waterways have created natural drainage patterns that divide the landscape into distinct watershed areas. The valley floors tend to be relatively flat and wide, while the interfluves between river systems form broad, gently sloping ridges.

Vegetation and Land Use Patterns

The natural vegetation of the Itaobim area transitions between Cerrado savanna and Caatinga dry forest ecosystems. This creates a landscape of scattered trees, shrublands, and grasslands with relatively open canopy coverage. Much of the original vegetation has been modified by agricultural activities, particularly cattle ranching and crop cultivation, which has resulted in extensive cleared areas across the region.

The semi-arid climate has shaped both the natural vegetation and agricultural practices, leading to landscapes that are generally open with minimal tree coverage in many areas. Existing land use includes pastures, small-scale agriculture, and areas of regenerating natural vegetation, creating a mosaic of different land cover types across the undulating terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Itaobim region would be the broader valley floors and gentle ridge tops that offer extensive flat to moderately sloping terrain. These areas provide the stable, level ground necessary for efficient solar panel installation while minimizing the need for extensive site preparation and grading work.

The interfluves between the major drainage systems present particularly attractive opportunities, as these elevated areas typically feature gentle slopes with good drainage characteristics and minimal risk of flooding. These locations also tend to have fewer competing land uses compared to the more fertile valley bottoms, which are often preferred for agricultural activities.

Areas with existing cleared land or degraded pastures would be especially well-suited for solar development, as they require minimal environmental disturbance while providing adequate space for large installations. The open nature of much of the landscape, combined with the generally stable geological conditions, creates favorable conditions for solar infrastructure development.

The region's position away from major urban centers and industrial activities also means that large tracts of land are potentially available for utility-scale solar projects. The gentle topography would allow for efficient panel orientation and spacing while minimizing shading issues that can occur in more mountainous terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
