Solar Power Potential in Itaocara, Rio de Janeiro, Brazil

Itaocara, Rio de Janeiro, Brazil, located at latitude -21.7701 and longitude -42.0749, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight duration.

Seasonal Solar Production

The solar energy output in Itaocara varies across the meteorological seasons:

• Summer: 6.45 kWh per day for each kW of installed capacity
• Autumn: 5.40 kWh per day for each kW of installed capacity
• Winter: 4.49 kWh per day for each kW of installed capacity
• Spring: 5.17 kWh per day for each kW of installed capacity

Summer clearly represents the peak production period, generating approximately 44% more energy than during winter months. However, even during winter, the production remains substantial, making Itaocara suitable for year-round solar energy generation.

Optimal Panel Installation

For fixed solar panel installations in Itaocara, Rio de Janeiro, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle has been calculated by analyzing the daily solar elevation angles at this latitude, weighted according to the daily photovoltaic potential using NASA's solar irradiance data.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Itaocara: The region experiences a distinct rainy season, typically occurring during summer months (December to March). During this period, cloud cover may temporarily reduce solar efficiency despite it being the season with highest potential output. Installing panels with high-efficiency ratings that perform better in diffuse light conditions can help mitigate this issue. Dust accumulation can be significant in tropical areas, particularly during dry seasons. Implementing regular cleaning schedules or installing automated cleaning systems would help maintain optimal panel performance. High temperatures in this tropical location can slightly reduce photovoltaic efficiency. Ensuring adequate airflow beneath panels during installation and selecting temperature-resistant panel technologies can minimize these efficiency losses. With proper system design addressing these considerations, Itaocara remains an excellent location for solar energy production throughout the year, with particularly strong generation potential during the summer months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

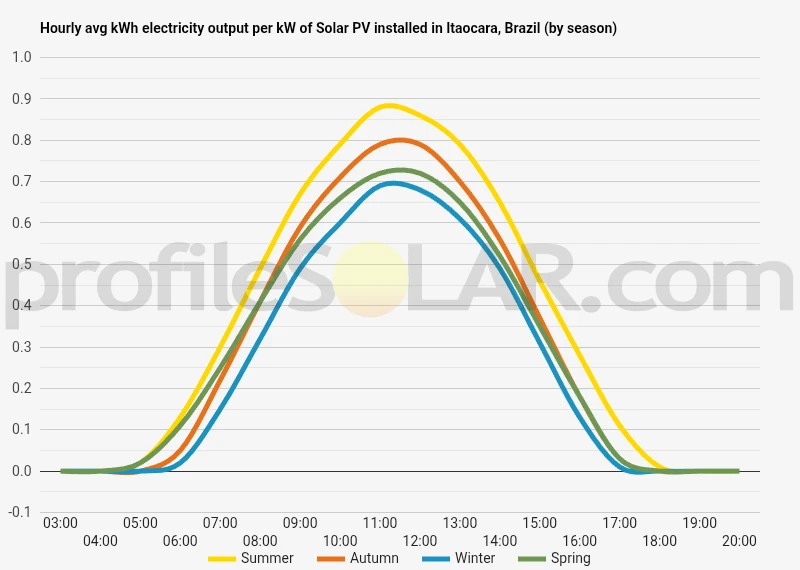

Solar output per kW of installed solar PV by season in Itaocara

Seasonal solar PV output for Latitude: -21.7701, Longitude: -42.0749 (Itaocara, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Itaocara, Brazil

To maximize your solar PV system's energy output in Itaocara, Brazil (Lat/Long -21.7701, -42.0749) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itaocara, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itaocara, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itaocara, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itaocara, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itaocara, Brazil

The topography surrounding Itaocara, Brazil reveals a diverse landscape characterized by rolling hills, river valleys, and varied elevation. Located in the northwestern region of Rio de Janeiro state, Itaocara sits within the Paraíba do Sul River basin, a significant geographical feature that shapes much of the local terrain. The area exhibits a predominantly undulating landscape with gentle to moderate slopes. The Paraíba do Sul River flows through the region, creating a fertile valley that has historically supported agricultural activities. The river's presence has formed alluvial plains in certain sections, contrasting with the more elevated terrain found as one moves away from the riverbanks.

Elevation Patterns

The elevation around Itaocara varies considerably. The town itself sits at approximately 60 meters above sea level, while surrounding areas rise to form hills reaching heights of 200-400 meters. These hills are part of the broader Atlantic Plateau formation that characterizes much of southeastern Brazil. The terrain gradually increases in elevation as one moves north toward Minas Gerais state, where more pronounced highlands can be found. The topographical variation creates a patchwork of microclimates and exposure conditions. South-facing slopes receive different solar radiation patterns compared to north-facing slopes, an important consideration for solar energy potential.

Vegetation and Land Use

The natural vegetation of the region falls within the Atlantic Forest biome, though much of the original forest has been cleared for agricultural and pastoral activities. Current land use includes a mix of pastureland, agricultural fields, scattered forest fragments, and urban development. The altered landscape has created open areas with minimal shading, potentially beneficial for solar installations.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, several factors make certain areas around Itaocara particularly suitable: The gently sloping hillsides with northern exposure represent prime locations for solar PV installations. These areas benefit from consistent solar radiation throughout the year while avoiding the flood risks associated with the river lowlands. Particularly promising are the elevated plateaus and hilltops 5-15 kilometers from the town center, where land clearing has already occurred for agricultural purposes. The moderately elevated terrain between 100-300 meters above sea level often features the ideal combination of good solar exposure and accessibility. These areas typically experience less fog and atmospheric interference than the river valley floor, resulting in more consistent solar radiation conditions. Areas with existing access to transportation infrastructure and proximity to electrical transmission lines offer practical advantages for solar development. The region benefits from a relatively well-developed road network connecting to larger cities, facilitating construction and maintenance access. The drier upland areas away from the immediate river valley present fewer environmental constraints related to soil moisture and flooding potential, making them technically superior for foundation stability and long-term infrastructure reliability. Land that has previously been used for low-productivity cattle ranching or abandoned agricultural fields represents opportunities for solar development with minimal additional environmental impact or land use conflicts.

Topographical Challenges

Despite these favorable areas, certain topographical features present challenges for large-scale solar development. The steeper slopes found in parts of the region would require more extensive grading and erosion control measures, increasing construction costs and environmental impacts. Areas with significant north-south ridgelines can create shading issues during morning and evening periods, potentially reducing overall generation efficiency. The river floodplains, while flat and seemingly ideal, face periodic inundation risks that would threaten infrastructure and are generally better suited to continued agricultural use rather than solar development. In conclusion, the varied topography around Itaocara provides numerous opportunities for strategic solar PV development, particularly on the gently sloping elevated areas with northern exposure that combine good solar access with practical development conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
