Itaparica, Bahia, Brazil represents an excellent location for year-round solar energy generation, situated in the tropical zone where consistent sunlight is available throughout most of the year rather than experiencing traditional seasonal variations.

Solar Energy Performance

The solar energy output at this location shows strong performance across all seasons. Summer delivers the highest production at 6.19 kWh per day per kW of installed solar capacity, closely followed by spring at 5.98 kWh per day. Autumn maintains good performance at 5.59 kWh per day, while winter shows the lowest but still substantial output at 4.53 kWh per day. This seasonal pattern indicates that Itaparica experiences its peak solar generation during the warmer months, with summer and spring being the ideal times for maximum energy production. However, even the winter months provide respectable solar output, making this location suitable for consistent year-round solar energy systems. For optimal performance, solar panels should be installed at a fixed tilt angle of 12 degrees facing north. This angle has been calculated to maximize total annual energy production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental Factors and Considerations

Being located in a tropical climate, Itaparica faces several environmental factors that could impact solar panel performance:

• High humidity levels throughout the year can lead to moisture-related issues and potential corrosion of electrical components
• Salt air from the coastal location may cause accelerated corrosion of metal components and panel frames
• Intense tropical storms and heavy rainfall during wet seasons could pose risks to panel mounting systems
• High temperatures may reduce panel efficiency and accelerate degradation of photovoltaic cells

Preventative Measures

To ensure optimal solar energy production despite these challenges, several protective measures should be implemented during installation. Using marine-grade aluminum or stainless steel mounting systems will provide better resistance to salt corrosion. Installing panels with robust drainage systems and secure mounting can help withstand heavy tropical rains and storms. Selecting solar panels with anti-reflective coatings and ensuring adequate ventilation behind panels will help manage the effects of high temperatures. Regular maintenance schedules should include cleaning panels to remove salt deposits and checking electrical connections for corrosion. Additionally, using electrical components rated for high-humidity environments and applying protective coatings to vulnerable metal parts will extend system lifespan and maintain energy production efficiency.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

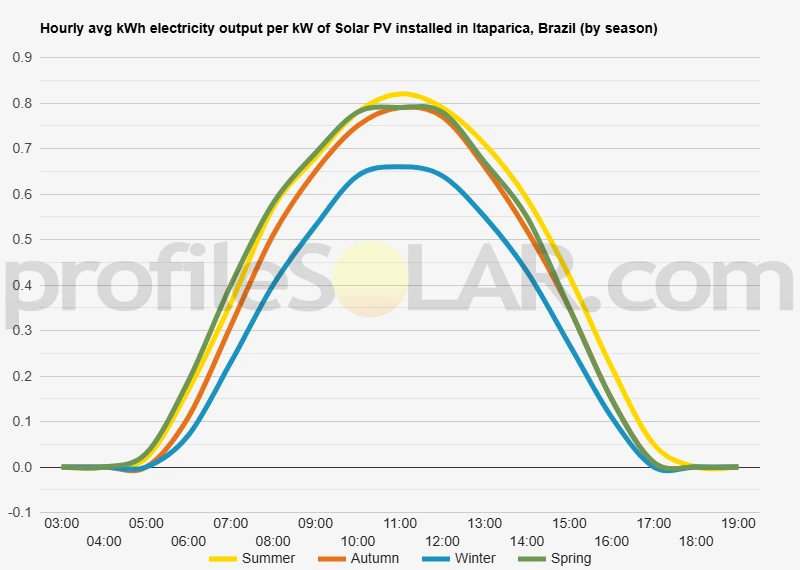

Solar output per kW of installed solar PV by season in Itaparica

Seasonal solar PV output for Latitude: -12.905, Longitude: -38.6643 (Itaparica, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° North in Itaparica, Brazil

To maximize your solar PV system's energy output in Itaparica, Brazil (Lat/Long -12.905, -38.6643) throughout the year, you should tilt your panels at an angle of 12° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itaparica, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itaparica, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° South in Summer	19° North in Autumn	29° North in Winter	7° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itaparica, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itaparica, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itaparica, Brazil

Topographical Features Around Itaparica

The region surrounding Itaparica in Bahia state presents a diverse topographical landscape characterized by coastal plains, rolling hills, and transitional zones between the Atlantic coastline and the interior Brazilian plateau. Itaparica itself sits on the largest island in Todos os Santos Bay, where the terrain is predominantly flat to gently undulating, with elevations rarely exceeding 50 meters above sea level. The island's topography consists mainly of sandy coastal plains interspersed with low-lying hills and occasional outcrops of sedimentary rock formations. Moving inland from the bay area, the topography gradually transitions into the Recôncavo Baiano region, where the landscape becomes more varied with gentle slopes and broader valleys. This area features a mix of coastal tablelands and sedimentary basins that create a mosaic of flat to moderately sloping terrain. The elevation increases progressively as one moves away from the coast, reaching heights of 100 to 300 meters in the interior portions of the region. The geological foundation of the area consists primarily of sedimentary rocks from the Cretaceous period, with some areas displaying crystalline basement rocks. These formations have created a landscape with good drainage characteristics and relatively stable ground conditions. The region's topography has been shaped by both marine and continental processes, resulting in a terrain that combines coastal lowlands with inland plateaus.

Climate and Environmental Considerations

The topographical setting of Itaparica and its surroundings creates favorable microclimatic conditions for solar energy development. The coastal location moderates temperature extremes while the relatively flat terrain allows for consistent wind patterns that help maintain optimal operating temperatures for solar panels. The region experiences a tropical climate with distinct wet and dry seasons, where the dry season provides extended periods of clear skies ideal for solar energy generation. The area's position within the South American continental landmass, combined with its coastal influence, results in stable atmospheric conditions with minimal cloud cover during peak solar periods. The topography also contributes to low humidity levels during certain times of the year, which enhances solar panel efficiency and reduces maintenance requirements related to moisture accumulation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Itaparica region would be the expansive flat areas found on the mainland portions of the Recôncavo Baiano, particularly in the municipalities of Vera Cruz, Nazaré, and Santo Antônio de Jesus. These areas offer extensive tracts of relatively level terrain with gentle slopes that facilitate efficient panel installation and maintenance access while minimizing grading and earthwork requirements. The coastal tablelands located approximately 20 to 40 kilometers inland from Todos os Santos Bay present ideal conditions for solar farms. These elevated plains provide excellent drainage, stable ground conditions, and minimal shading from topographical features. The terrain in these areas typically slopes less than 5 degrees, which is optimal for fixed-tilt solar installations and allows for efficient use of available land area. Areas around the towns of Cruz das Almas and Cachoeira also demonstrate favorable topographical characteristics for solar development. The terrain here consists of broad, gently rolling plains with good accessibility via existing road networks. The elevation range of 100 to 200 meters above sea level provides adequate drainage while maintaining the climatic benefits of the coastal region. The interior portions of the region, particularly those extending toward the municipalities of Feira de Santana and Santo Estêvão, offer vast areas of suitable terrain for utility-scale solar installations. These locations feature extensive flat to gently undulating topography with minimal vegetation coverage and excellent solar exposure due to the absence of significant topographical shading. When considering large-scale solar development, the areas with the most advantageous combination of topographical features include the sedimentary plains that extend northeast and northwest of Itaparica. These regions provide the necessary flat terrain, stable geological conditions, and adequate space for extensive solar arrays while maintaining reasonable proximity to existing electrical infrastructure and transportation networks.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
