Itapecerica da Serra in Brazil offers a promising location for solar energy generation throughout the year. Situated in the Southern Sub Tropics at latitude -23.7433 and longitude -46.8523, this area receives consistent solar radiation that can be harnessed for electricity production via photovoltaic (PV) panels.

Seasonal Solar Energy Production

Solar energy output varies by season at this location, with summer being the most productive period. During summer months, each kilowatt of installed solar capacity generates approximately 6.05 kWh of electricity per day. Spring follows as the second most productive season with 5.32 kWh/day, while autumn yields about 5.07 kWh/day. Winter shows the lowest production at 4.15 kWh/day per kilowatt installed.

The relatively small difference between the highest and lowest seasonal outputs (less than 2 kWh/day) indicates that Itapecerica da Serra maintains decent solar potential year-round, without extreme seasonal variations that might make solar investments impractical during certain months.

Optimal Panel Installation

For fixed solar panel installations at this location, the ideal tilt angle to maximize year-round energy production is 22 degrees facing North. This specific angle has been calculated by analyzing solar elevation patterns at this latitude and weighting the optimal daily angles according to the location's solar irradiance potential.

Because Itapecerica da Serra is in the Southern Hemisphere, panels should face north (opposite to installations in the Northern Hemisphere). This orientation allows the panels to capture maximum sunlight throughout the year as the sun's path shifts seasonally.

Environmental and Weather Considerations

Several factors could potentially impact solar production at this location. The region experiences a subtropical climate with a rainy season that typically coincides with summer months. While summer has the highest potential output, frequent afternoon thunderstorms and cloud cover during this period may occasionally reduce actual production.

Air pollution from the nearby São Paulo metropolitan area could also affect solar irradiance. Particulate matter and smog can scatter and absorb sunlight before it reaches the panels, potentially reducing efficiency by 5-10% during pollution events.

To mitigate these challenges, several preventative measures can be implemented:

• Install panels with self-cleaning technologies or hydrophobic coatings to reduce dust and pollution buildup
• Consider microinverter or power optimizer systems that minimize production losses when parts of the array are shaded
• Implement regular cleaning schedules, particularly before and after the rainy season
• Ensure adequate spacing between panel rows to minimize mutual shading, especially during winter when the sun angle is lower
• Use corrosion-resistant mounting hardware suitable for the occasionally humid conditions

With these considerations addressed, Itapecerica da Serra represents a suitable location for solar PV installations, offering consistent energy production throughout the year with particularly favorable conditions during summer and spring months.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

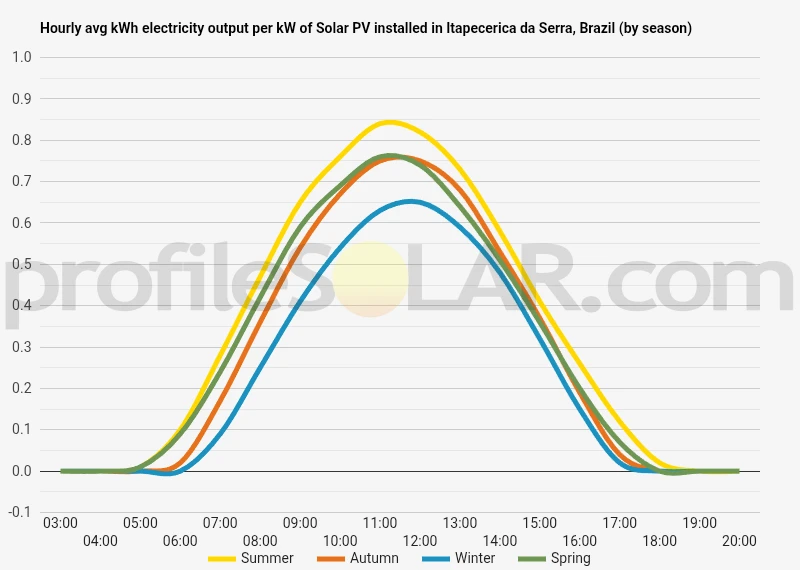

Solar output per kW of installed solar PV by season in Itapecerica Da Serra

Seasonal solar PV output for Latitude: -23.7433, Longitude: -46.8523 (Itapecerica Da Serra, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Itapecerica Da Serra, Brazil

To maximize your solar PV system's energy output in Itapecerica Da Serra, Brazil (Lat/Long -23.7433, -46.8523) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itapecerica Da Serra, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itapecerica Da Serra, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itapecerica Da Serra, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itapecerica Da Serra, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itapecerica Da Serra, Brazil

Itapecerica da Serra is situated in the hilly, undulating terrain of the Serra do Mar mountain range, approximately 35 kilometers southwest of São Paulo city. The topography of this region is characterized by a complex interplay of highlands and valleys, with elevations ranging from approximately 750 to 1000 meters above sea level. The landscape surrounding Itapecerica da Serra features significant variations in relief, with numerous hills, ridges, and valleys creating a diverse topographical profile. The area sits at the transition zone between the Atlantic Plateau and the coastal mountains, resulting in a predominantly hilly landscape with moderate to steep slopes in many areas. Natural vegetation consists mainly of Atlantic Forest remnants, though much of the original forest cover has been altered by human settlement and agricultural activities.

Topographical Features

The terrain around Itapecerica da Serra is marked by rounded hills and elongated ridges, interspersed with narrow valleys where streams and small rivers flow. The municipality itself is positioned on relatively elevated ground compared to neighboring São Paulo, contributing to its slightly cooler climate. The northwestern portions of the region tend to have more gentle slopes, while the southeastern areas feature more pronounced relief as they approach the main ridge of the Serra do Mar. Numerous small watercourses dissect the landscape, creating a dendritic drainage pattern typical of regions with varied topography. The Guarapiranga Reservoir lies to the east of Itapecerica da Serra, forming a significant water body in the vicinity.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several factors related to topography must be considered, including slope orientation, gradient, accessibility, and land availability. In the context of Itapecerica da Serra and its surroundings, the most suitable areas would be: The northwestern sectors of the region, extending toward Embu-Guaçu and São Lourenço da Serra, offer more gently sloping terrain that would require less grading and preparation for solar installations. These areas typically have north-facing slopes (in the Southern Hemisphere, north-facing slopes receive more direct sunlight throughout the year), making them naturally advantageous for solar energy capture. The plateaus and ridge tops throughout the region, particularly those with minimal tree cover, present opportunities for solar development. These elevated areas often have fewer obstructions to block sunlight and may experience less fog and cloud cover than the valleys. The areas surrounding the Guarapiranga Reservoir, particularly on its western shores, combine relatively favorable topography with proximity to existing transmission infrastructure, potentially reducing the costs associated with connecting new solar facilities to the grid. The transitional zones between Itapecerica da Serra and Embu das Artes to the north offer some moderately sloping terrain that could accommodate larger solar installations while remaining close to major transportation routes for construction and maintenance access.

Topographical Challenges

Despite these opportunities, the region's topography does present certain challenges for large-scale solar development. The prevalence of steep slopes throughout much of the area would necessitate significant earthwork for many potential sites, increasing construction costs and environmental impacts. The fragmented nature of the suitable land parcels might also limit the size of individual installations. Additionally, the remaining Atlantic Forest fragments represent ecologically sensitive areas that should be preserved rather than developed, further constraining the available land for solar projects. The region's history of urban expansion from nearby São Paulo has also reduced the amount of undeveloped land that might be appropriate for large solar facilities. Nevertheless, with careful site selection focusing on the areas mentioned above, the region surrounding Itapecerica da Serra could support strategically placed solar PV installations that take advantage of the more favorable aspects of the local topography while minimizing environmental disruption.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
