Solar Energy Potential in Itapemirim, Espírito Santo, Brazil

Itapemirim, Espírito Santo, Brazil offers a promising location for solar PV energy generation, with its position in the tropics providing relatively consistent sunlight throughout the year. This coastal municipality experiences seasonal variations in solar production that follow predictable patterns, making it suitable for year-round solar energy harvesting. The solar energy output at this location shows notable seasonal fluctuations. During summer months, solar panels can generate an impressive 7.00 kWh per day for each kilowatt of installed capacity. This drops to 5.61 kWh/day during autumn and decreases further to 4.62 kWh/day in winter, which represents the annual low point for generation. As spring arrives, production increases to 5.47 kWh/day, beginning the cycle again.

Optimal Panel Installation

For fixed solar panel installations in Itapemirim, Espírito Santo, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit. Summer months (December through February) represent the peak production period, making this an excellent time for energy generation. The significant drop in winter (June through August) suggests that system sizing should account for these lower production months if consistent energy supply is required year-round.

Environmental Considerations

Several environmental factors could potentially impact solar production in Itapemirim:

• Coastal humidity and salt spray may accelerate corrosion of solar equipment, particularly mounting hardware and electrical connections.
• The region experiences a rainy season that can temporarily reduce solar output through cloud cover and direct rainfall.
• Occasional tropical storms may bring periods of extended cloud cover and potential physical risks to installations.

Preventative Measures

To maximize energy production despite these challenges, several preventative measures are recommended: Using marine-grade materials for all mounting hardware can significantly extend system lifespan in the coastal environment. Regular cleaning schedules should be implemented to remove salt deposits and other debris, particularly during dry seasons when dust accumulation is more common. Installing slightly larger systems than minimal calculations suggest can help compensate for the reduced winter output. Additionally, employing microinverters or power optimizers rather than string inverters can minimize production losses from partial shading during cloudy periods in the rainy season. Finally, robust mounting systems designed to withstand tropical storm conditions are essential for long-term reliability, even though such weather events are relatively infrequent in this region.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

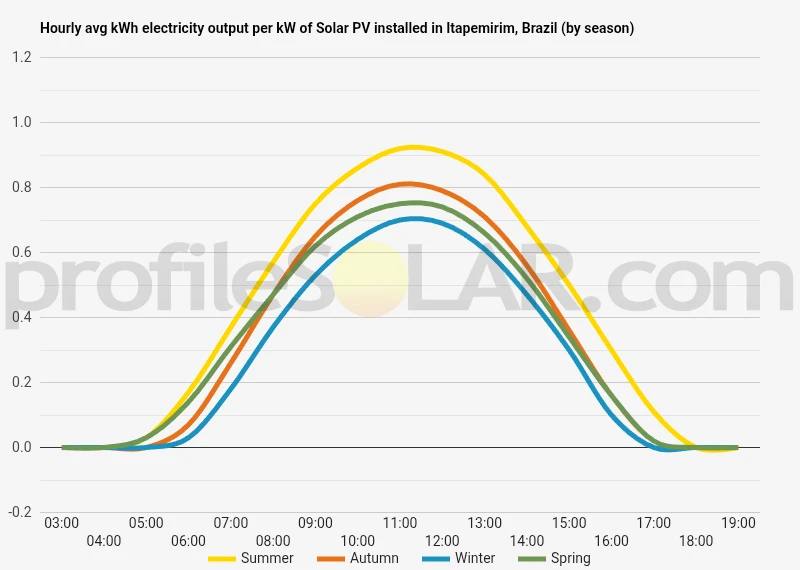

Solar output per kW of installed solar PV by season in Itapemirim

Seasonal solar PV output for Latitude: -21.0111, Longitude: -40.8339 (Itapemirim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Itapemirim, Brazil

To maximize your solar PV system's energy output in Itapemirim, Brazil (Lat/Long -21.0111, -40.8339) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itapemirim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itapemirim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itapemirim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itapemirim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itapemirim, Brazil

The landscape around Itapemirim, Brazil presents a diverse topography characterized by coastal plains that gradually rise into rolling hills and more pronounced elevations as one moves inland. Located in the southern portion of Espírito Santo state, Itapemirim sits near the Atlantic coastline, where the terrain is predominantly flat with sandy beaches and coastal vegetation. This coastal strip extends several kilometers inland before the landscape begins to undulate more significantly. Moving away from the coast, the terrain transitions into gentle hills that become increasingly pronounced toward the western portions of the municipality. The elevation generally increases as one travels westward, with some areas reaching heights of approximately 100-200 meters above sea level. These rolling landscapes are interspersed with numerous small valleys and watercourses, including the Itapemirim River which is a defining geographical feature of the region.

Vegetation and Land Cover

The natural vegetation of the region historically consisted of Atlantic Forest (Mata Atlântica), though much of this has been converted to agricultural land and urban development over centuries of human settlement. Today, the landscape includes patches of secondary forest, pastureland, agricultural fields, and urban or semi-urban development. Sugar cane, coffee, and various fruit crops are common agricultural products in the region, reflecting the favorable growing conditions.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Itapemirim show particular promise. The most suitable locations would be: The inland plains and gentle hills approximately 10-15 kilometers from the coast offer favorable conditions for solar development. These areas typically have good solar exposure with minimal shading from topographical features. The slightly elevated terrain reduces concerns about flooding while maintaining relatively flat surfaces that are ideal for large panel arrays. The northwestern portions of the municipality, where the landscape opens into broader plateaus, present excellent opportunities for solar development. These areas typically have less intensive agricultural use and offer expansive spaces that could accommodate large-scale installations. Areas along the major transportation corridors, particularly heading inland along BR-101, combine favorable terrain with accessibility advantages. These locations feature moderate slopes with predominantly southern and western exposures, which receive substantial solar radiation throughout the year.

Considerations for Development

While developing solar installations in the region, several topographical factors merit consideration. The coastal areas, though flat and seemingly advantageous, face challenges from salt spray, higher humidity, and potential for coastal flooding during extreme weather events. Additionally, these areas often have higher population density and greater competition for land use. The moderately elevated inland regions strike a balance between favorable topography and practical development considerations. These areas typically experience less fog than coastal zones, have moderate temperatures, and offer sufficient space for large installations while remaining accessible via existing transportation infrastructure. Areas with slopes exceeding 15-20 degrees, primarily found in the more mountainous western reaches, would present installation challenges and increased costs despite potentially good solar exposure. Similarly, low-lying areas near rivers and streams should be avoided due to flooding risks and higher humidity levels that could affect equipment performance. The most promising development zones combine gently sloping terrain (ideally 0-10 degrees), southern or western exposure, proximity to existing electrical infrastructure, and minimal current use for high-value agriculture or conservation. Several such areas exist within a 30-kilometer radius of Itapemirim's urban center, particularly in the northwestern quadrant of the municipality.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
