Solar Energy Potential in Itapira, São Paulo, Brazil

Itapira, São Paulo, Brazil offers a promising location for solar energy generation with consistent sunlight throughout the year. Located in the tropics at coordinates -22.4227, -46.7667, this region experiences relatively stable solar conditions with seasonal variations primarily defined by wet and dry periods rather than dramatic changes in daylight duration. The solar energy production potential varies across seasons, with the highest output occurring during summer months when panels can generate approximately 6.62kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.08kWh/day, while autumn yields 5.49kWh/day. Winter represents the lowest production period, though still respectable at 4.83kWh/day per installed kilowatt.

Optimal Panel Installation

For fixed solar panel installations in Itapira, São Paulo, the ideal tilt angle to maximize year-round energy production is 21 degrees facing North. This specific angle has been calculated to optimize solar capture throughout the year, accounting for the location's position in the Southern Hemisphere and seasonal sun path variations. The relatively small difference between summer and winter production (about 27% variation from highest to lowest season) indicates that Itapira offers consistent solar potential throughout the year, making it suitable for year-round solar energy generation without extended periods of significantly reduced output.

Environmental Considerations

Several environmental factors could potentially affect solar production in Itapira:

• Seasonal heavy rainfall during the wet season (typically October to March) may reduce solar efficiency due to cloud cover and panel soiling
• Occasional dust accumulation during dry periods can gradually decrease panel performance
• High humidity levels typical of tropical regions may slightly reduce panel efficiency

Preventative Measures

To maximize solar energy production in Itapira, São Paulo, several preventative measures are recommended: Installing self-cleaning panel systems or implementing regular cleaning schedules, particularly before and after the rainy season, can maintain optimal performance. Elevated mounting systems can reduce dust accumulation and improve air circulation beneath panels, helping to mitigate efficiency losses from high temperatures. Additionally, using high-quality inverters designed for tropical conditions will ensure better performance in high humidity environments. Incorporating weather monitoring systems can also help optimize maintenance schedules based on local conditions. Overall, Itapira presents favorable conditions for solar energy generation throughout the year, with proper installation and maintenance practices addressing the few environmental challenges present at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

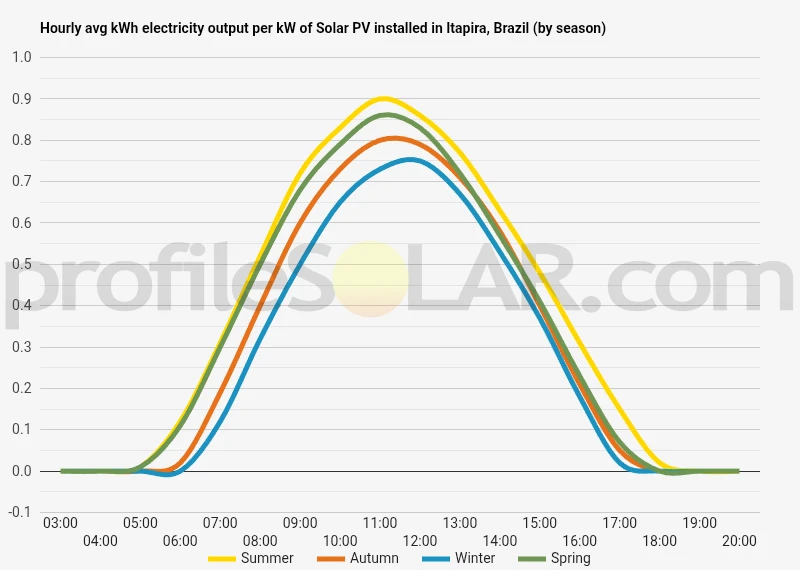

Solar output per kW of installed solar PV by season in Itapira

Seasonal solar PV output for Latitude: -22.4227, Longitude: -46.7667 (Itapira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Itapira, Brazil

To maximize your solar PV system's energy output in Itapira, Brazil (Lat/Long -22.4227, -46.7667) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itapira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itapira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itapira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itapira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itapira, Brazil

The topography surrounding Itapira, Brazil presents a diverse and undulating landscape characteristic of the transition between the Atlantic Plateau and the Mantiqueira Mountains. Located in the northeastern portion of São Paulo state, Itapira sits at an elevation of approximately 650 meters above sea level, with the surrounding terrain featuring a combination of rolling hills, shallow valleys, and some more pronounced elevations.

Landscape Features

The region is characterized by moderate to steep slopes in many areas, particularly to the east where the terrain begins to rise toward the Mantiqueira Mountain range. This eastern zone features more rugged topography with elevations reaching above 1,000 meters in some places. The western and southern portions of the Itapira region, by contrast, present gentler undulations with broader plateaus and more gradual slopes. Several water bodies influence the local topography, including the Mogi Guaçu River which flows through the region, creating fertile valley areas. These river valleys have historically shaped the landscape, carving pathways through the otherwise hilly terrain. The natural drainage patterns have formed numerous smaller streams and tributaries throughout the area. Vegetation coverage varies across the landscape, with some areas maintaining native Atlantic Forest remnants, particularly on steeper slopes, while much of the gentler terrain has been converted to agricultural use, primarily coffee plantations and pastureland.

Solar PV Potential Areas

When considering large-scale solar photovoltaic installations, several areas in the vicinity of Itapira present favorable conditions. The western and southwestern regions, with their more moderate slopes and broader plateaus, offer the most promising topographical conditions for solar development. These areas typically feature: Gentler gradients that reduce construction challenges and costs associated with land preparation. Broader expanses of continuous land that could accommodate larger installations without significant topographical barriers. Elevations that still benefit from good solar exposure while avoiding some of the fog and cloud cover that can affect higher mountain areas. The northwestern sector extending toward Mogi Guaçu presents particularly favorable terrain, with extensive plateaus at elevations between 600-700 meters that receive consistent solar radiation throughout the year. These areas typically have been used for agriculture, meaning they've already been cleared of dense vegetation, which reduces environmental impact and site preparation costs for solar installations. Areas to potentially avoid include the steeper eastern slopes leading toward the Mantiqueira range, where construction would be more challenging and expensive. Additionally, the immediate river valleys, while flat, may present flood risks and often contain more valuable agricultural land and riparian ecosystems that should be preserved. The central plateaus between Itapira and Mogi Mirim also offer promising topographical conditions, with sufficient elevation to avoid morning fog issues while maintaining relatively flat terrain that simplifies construction and maximizes exposure to the sun's path across the sky.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
