Itaquitinga, Pernambuco, Brazil represents an excellent location for year-round solar photovoltaic energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than the dramatic temperature changes seen in other climates.

Solar Energy Production Performance

The solar energy output at this location shows strong performance across all seasons. Spring delivers the highest production at 6.76 kWh per day per kW of installed solar capacity, followed closely by summer at 6.23 kWh per day. Even during the lowest-producing season of winter, the location still generates a respectable 5.09 kWh per day per kW, while autumn produces 5.54 kWh per day per kW. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 7 degrees facing north. This relatively shallow angle maximizes the total annual solar output by accounting for the location's proximity to the equator and the sun's path throughout the year.

Environmental and Weather Challenges

Several factors could potentially impact solar energy production at Itaquitinga and require careful consideration during installation:

• Heavy rainfall during wet season: Tropical regions experience intense rainfall periods that can reduce solar irradiance and create water accumulation on panels
• High humidity levels: Persistent moisture can lead to corrosion of electrical components and reduced panel efficiency
• Dust and debris accumulation: Dry seasons can result in dust buildup on panel surfaces, blocking sunlight
• Extreme heat: High temperatures can reduce photovoltaic panel efficiency

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Proper drainage systems around solar installations prevent water pooling and flooding during heavy rains. The recommended 7-degree tilt angle naturally helps water run off panels, reducing cleaning requirements. Using marine-grade or tropical-rated electrical components and enclosures provides better protection against humidity and corrosion. Regular maintenance schedules should include panel cleaning, particularly after dust storms or before peak production seasons. Adequate ventilation behind panels helps manage heat buildup, while selecting panels with good high-temperature performance characteristics maintains efficiency during hot periods. Installing monitoring systems allows for quick identification of performance issues related to weather impacts. Overall, Itaquitinga offers very favorable conditions for solar energy generation, with the potential challenges being manageable through proper installation techniques and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

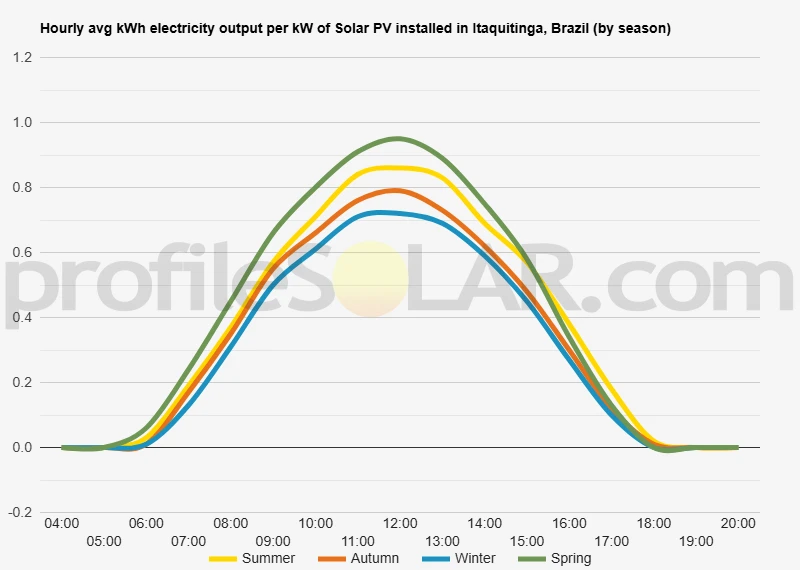

Solar output per kW of installed solar PV by season in Itaquitinga

Seasonal solar PV output for Latitude: -7.6761, Longitude: -35.0577 (Itaquitinga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Itaquitinga, Brazil

To maximize your solar PV system's energy output in Itaquitinga, Brazil (Lat/Long -7.6761, -35.0577) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itaquitinga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itaquitinga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	24° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itaquitinga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itaquitinga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itaquitinga, Brazil

Topographical Features of Itaquitinga

Itaquitinga sits in the northeastern region of Brazil within the state of Pernambuco, positioned in an area characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality features the typical landscape of the Agreste region, which serves as a transition zone between the humid coastal areas and the drier interior sertão. The topography consists primarily of undulating plains with scattered low hills and shallow valleys, creating a landscape that is neither completely flat nor dramatically mountainous.

The elevation in and around Itaquitinga generally ranges from approximately 200 to 400 meters above sea level, with the terrain gradually rising as one moves inland from the coastal plain. The area is drained by several small tributaries and seasonal watercourses that flow toward the larger river systems of the region. These waterways have carved gentle valleys through the landscape over time, creating a pattern of low ridges separated by shallow depressions.

Geological and Soil Characteristics

The underlying geology consists primarily of crystalline basement rocks typical of the Brazilian Shield, covered by weathered soils and sedimentary deposits. The soils in the region are generally well-drained, though they can vary from sandy to clay-rich depending on the specific location and elevation. The weathering processes in this semi-arid to sub-humid climate have created relatively stable ground conditions across much of the area.

Rock outcrops and exposed bedrock are common features throughout the region, particularly on hilltops and steeper slopes. These granite and gneiss formations provide solid foundations but can present challenges for construction activities. The presence of these rock formations also influences drainage patterns and soil development across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Itaquitinga would be the broader, flatter areas found in the valley bottoms and on the gentler slopes of the rolling hills. These areas offer several advantages including easier access for construction equipment, reduced grading requirements, and more uniform terrain for panel installation. The relatively stable soils in these locations provide good foundation conditions for mounting systems.

Areas with southern and southeastern exposures on gentle slopes would be particularly favorable, as they can maximize solar exposure while still maintaining reasonable construction costs. The elevated plateaus and broader hilltops in the region also present excellent opportunities, provided access roads can be established economically. These elevated positions often benefit from better air circulation and slightly reduced atmospheric moisture, which can improve panel efficiency.

The areas to avoid for large-scale installations would include the steeper hillsides where grading costs would be excessive, locations with frequent rock outcrops that would complicate foundation work, and the narrow valley bottoms where seasonal water flow might pose risks. Additionally, areas with particularly dense vegetation or those designated for agricultural use would present additional challenges for development.

Transportation infrastructure in the region consists mainly of local roads connecting to larger state highways, which generally provide adequate access for construction and maintenance activities. The relatively open nature of much of the landscape around Itaquitinga means that new access roads could be constructed without excessive difficulty in most suitable areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
