Solar Energy Potential at Itatiaia, Rio de Janeiro, Brazil

The location at Itatiaia, Rio de Janeiro, Brazil shows good potential for year-round solar energy generation, though with notable seasonal variation. This tropical location experiences its highest solar output during summer months and lowest during winter, which is typical for locations in the Southern Hemisphere.

Seasonal Energy Production

Summer delivers the strongest solar performance at 6.15 kWh per day per kW of installed panels, making it the ideal season for solar generation. Spring follows closely with 5.32 kWh per day per kW, while autumn produces 5.24 kWh per day per kW. Winter shows the lowest output at 4.54 kWh per day per kW, representing about a 26% decrease from peak summer production. For optimal year-round energy capture, solar panels at this location should be installed at a fixed tilt angle of 21 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying position throughout the year.

Environmental Factors Affecting Solar Production

Several local factors at Itatiaia could impact solar panel performance:

• High humidity and moisture: The tropical climate brings elevated humidity levels that can reduce panel efficiency and promote corrosion of electrical components
• Heavy rainfall during wet season: Intense tropical downpours can create temporary shading and may damage poorly secured installations
• Vegetation growth: The lush tropical environment means rapid plant growth that could shade panels if not properly managed
• Dust and organic debris: Pollen, leaves, and other organic matter can accumulate on panels, reducing light transmission

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered. Using marine-grade or tropical-rated electrical components and corrosion-resistant mounting hardware helps combat humidity-related degradation. Ensuring proper drainage around panel installations prevents water pooling during heavy rains. Regular vegetation management around the solar array prevents shading issues, while installing panels with adequate ground clearance allows for better air circulation and easier maintenance access. Implementing a routine cleaning schedule becomes particularly important in this environment to remove organic debris and maintain optimal panel performance. Proper grounding and surge protection are essential given the potential for intense tropical storms, and selecting panels with strong wind load ratings ensures the installation can withstand severe weather events common to the region.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

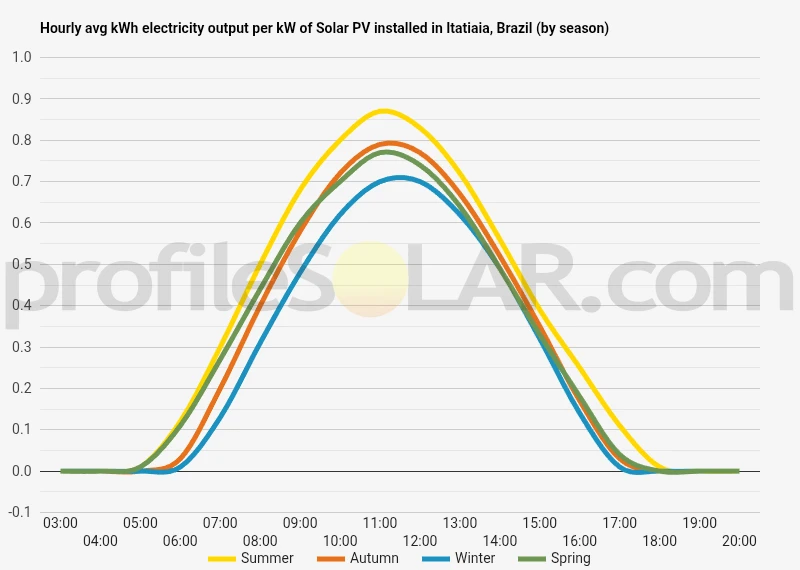

Solar output per kW of installed solar PV by season in Itatiaia

Seasonal solar PV output for Latitude: -22.411, Longitude: -44.5762 (Itatiaia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Itatiaia, Brazil

To maximize your solar PV system's energy output in Itatiaia, Brazil (Lat/Long -22.411, -44.5762) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itatiaia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itatiaia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itatiaia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itatiaia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itatiaia, Brazil

Topographical Features Around Itatiaia

The region surrounding Itatiaia in Brazil presents a dramatically varied landscape dominated by the towering peaks of the Serra da Mantiqueira mountain range. This area sits within one of Brazil's most mountainous regions, where elevations can rise from approximately 500 meters in the valleys to over 2,700 meters at the highest peaks. The terrain is characterized by steep slopes, deep valleys, and rugged ridgelines that create a complex mosaic of microclimates and ecosystems.

The immediate vicinity of Itatiaia features rolling hills and plateaus interspersed with more dramatic mountainous terrain. Rivers and streams have carved numerous valleys throughout the landscape, creating a network of waterways that flow toward larger river systems. The topography becomes increasingly challenging as one moves toward the higher elevations of Itatiaia National Park, where rocky outcrops, steep escarpments, and alpine meadows dominate the scenery.

Agricultural lands occupy many of the gentler slopes and valley floors, where dairy farming and crop cultivation have shaped the landscape for generations. These areas typically feature more moderate gradients and have been cleared of native vegetation, creating open spaces that contrast sharply with the forested mountain slopes that rise above them.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Itatiaia region would be the relatively flat agricultural areas and gentle slopes found in the broader valleys and plateaus. These areas offer the essential combination of manageable terrain gradients, existing cleared land, and reasonable accessibility for construction and maintenance activities.

The agricultural valleys extending northeast and southeast from Itatiaia present particularly promising opportunities. These areas have already been modified for farming purposes, which means the environmental impact of solar development would be minimized compared to clearing forested mountainous terrain. The existing road networks serving these agricultural regions would also facilitate the transportation of equipment and materials needed for solar installations.

Plateau areas at moderate elevations, typically between 600 and 1,000 meters above sea level, represent another category of suitable terrain. These locations often feature relatively stable ground conditions and gentler slopes while maintaining good exposure to solar radiation throughout the day. The reduced atmospheric interference at these moderate elevations can also contribute to improved solar panel performance.

Areas closer to existing electrical infrastructure would be particularly advantageous, as the mountainous terrain makes the construction of new transmission lines both expensive and environmentally challenging. The flatter agricultural zones typically have better access to the regional electrical grid, reducing the overall project costs and complexity associated with power transmission.

Conversely, the steeper mountain slopes, heavily forested areas, and regions within or adjacent to Itatiaia National Park would be unsuitable for large-scale solar development due to environmental restrictions, challenging terrain, and the significant ecological value of these preserved landscapes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
