Solar Energy Potential in Itatiba, São Paulo, Brazil

Itatiba, São Paulo, Brazil, located at latitude -22.9975 and longitude -46.7894, offers promising conditions for solar energy production throughout the year. This location benefits from its position in the tropics, providing relatively consistent sunlight patterns compared to regions farther from the equator. The seasonal solar production data reveals interesting patterns. During summer, solar panels can generate an impressive 6.62 kWh per day for each kilowatt installed, making it the most productive season. Spring follows as the second most productive period with 6.08 kWh/day. Autumn yields a moderate 5.49 kWh/day, while winter represents the lowest production period with 4.83 kWh/day per kilowatt installed. What's particularly notable about this location is the relatively small difference between the highest and lowest producing seasons. Even during winter, production remains at approximately 73% of summer values, indicating good year-round solar potential without extreme seasonal variations that might be seen in locations farther from the equator.

Optimal Panel Installation

For fixed solar panel installations in Itatiba, São Paulo, the ideal tilt angle is 21 degrees facing North. This specific angle has been calculated to maximize total annual energy production based on the location's position relative to the sun's path throughout the year. This northern orientation (opposite to what would be recommended in the Northern Hemisphere) ensures panels capture maximum sunlight as the sun tracks across the northern sky relative to this Southern Hemisphere location.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Itatiba:

• Seasonal rainfall: As a tropical location, Itatiba experiences distinct wet and dry seasons rather than temperature-defined seasons. Heavy rainfall during the wet season (typically summer) can temporarily reduce solar output despite it being the sunniest season.
• Cloud cover: Related to the rainy season, extended periods of cloud cover can significantly reduce solar production.
• Dust and pollution: Agricultural activities and nearby urban pollution can create airborne particulates that settle on panels.

To mitigate these challenges, several preventative measures can be implemented: Regular panel cleaning is essential, particularly before and after the rainy season when dust accumulation is most likely. Installing panels at the recommended 21-degree tilt also helps with natural cleaning during rainfall. Additionally, using quality inverters with advanced maximum power point tracking (MPPT) technology will help optimize production even during partially cloudy conditions. For installations in areas with partial shading from nearby trees or structures, microinverters or power optimizers should be considered to minimize the impact of partial shading on the entire system's performance. Despite these considerations, Itatiba's solar potential remains excellent, with even the lowest-producing winter months offering substantial energy generation capability.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

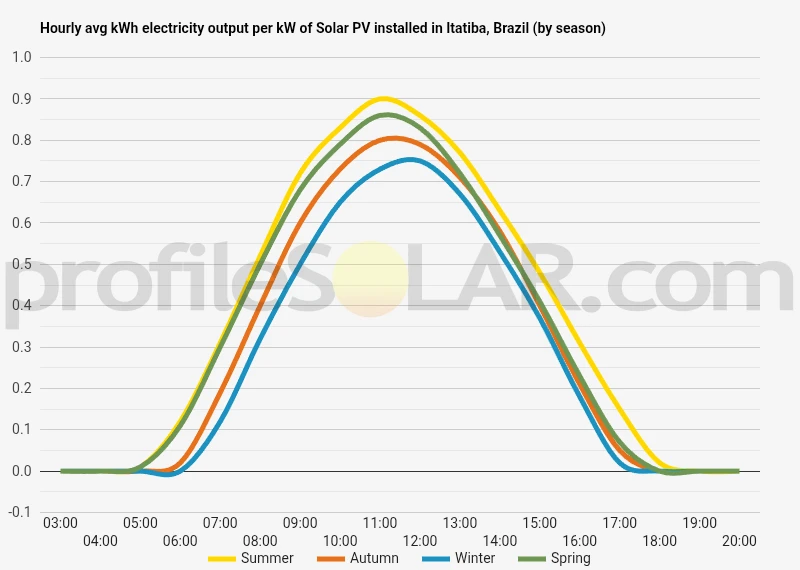

Solar output per kW of installed solar PV by season in Itatiba

Seasonal solar PV output for Latitude: -22.9975, Longitude: -46.7894 (Itatiba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Itatiba, Brazil

To maximize your solar PV system's energy output in Itatiba, Brazil (Lat/Long -22.9975, -46.7894) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itatiba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itatiba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itatiba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itatiba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itatiba, Brazil

The topography around Itatiba, Brazil is characterized by rolling hills and valleys typical of the southeastern region of São Paulo state. Located in the transition zone between the Atlantic Plateau and the Mantiqueira Mountains, Itatiba sits at an average elevation of approximately 750 meters above sea level. The landscape features undulating terrain with moderate slopes interspersed with small plateaus and gentle valleys. The region is part of the larger Paraíba do Sul river basin, with several smaller rivers and streams flowing through the area. This creates a varied topographical profile with drainage patterns that have shaped the local relief over geological time. The natural vegetation consists primarily of seasonal semi-deciduous forests, though much has been converted to agricultural land, urban development, and secondary growth forests.

Topographical Features

The terrain around Itatiba presents a mix of hills with moderate elevation changes. To the east and northeast, the land gradually rises toward the Mantiqueira Mountain range, while to the west and southwest, the topography becomes somewhat flatter as it transitions toward the interior plateaus of São Paulo state. This varied relief creates a mosaic of slopes with different orientations and gradients. The soil composition in the region is predominantly latosols and argisols, which have developed on the crystalline basement rocks typical of southeastern Brazil. These soils generally have good drainage properties, though erosion can be a concern on steeper slopes where vegetation has been removed.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the most suitable areas near Itatiba would be the gently sloping plateaus and broader hilltops that feature minimal shading from surrounding terrain. These locations offer several advantages for solar energy production. The northwestern sector of the region, where the terrain begins to flatten toward Campinas, presents particularly favorable conditions. These areas typically have good solar exposure throughout the day and year, with fewer topographical obstructions that might cast shadows during critical generation periods. South-facing slopes (in the Southern Hemisphere) should generally be avoided as they receive less direct sunlight. Instead, north-facing gentle slopes with gradients between 2-10% often represent an ideal compromise between good solar exposure and minimal site preparation requirements. The plateaus between Itatiba and Morungaba to the northeast also offer promising locations, as do some of the broader valley floors and gentler slopes to the west toward Jundiaí, provided they are not heavily shaded by adjacent hills during significant portions of the day. Areas to avoid would include the steeper slopes found in the more mountainous sectors to the east, deeply incised valleys where morning and evening shading is significant, and locations near water bodies where morning fog or mist might be more common and persistent. Land that has already been modified for agricultural purposes often presents fewer environmental and permitting challenges for solar development, particularly pasture land or areas used for annual crops that have already been cleared and have established access roads.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
