Itatinga, São Paulo, Brazil offers a promising location for solar PV energy generation with consistent sunlight throughout the year, though with noticeable seasonal variations. Located in the tropics at latitude -23.1222 and longitude -48.6213, this site experiences reliable solar radiation that makes it suitable for photovoltaic installations.

Solar energy production in Itatinga follows a predictable pattern across the seasons. During summer months, panels generate an impressive 6.70kWh per day for each kilowatt installed, making this the prime production period. Spring follows as the second most productive season with 5.86kWh/day, while autumn yields 5.18kWh/day. Winter shows the lowest output at 4.38kWh/day per installed kilowatt, though this figure remains substantial compared to many non-tropical locations worldwide.

For maximizing year-round solar energy collection at this location, fixed panels should be installed at a tilt angle of 21 degrees facing North. This specific angle has been calculated to optimize annual energy harvest by accounting for Itatinga's position relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production at this location. The most significant is the pronounced wet season typical of tropical regions, which can reduce solar efficiency through increased cloud cover and rainfall. During these periods, energy production may decrease by 20-30% compared to dry season peaks.

Dust accumulation represents another challenge, particularly during dry periods when agricultural activities and wind can deposit particulate matter on panel surfaces. Regular cleaning maintenance becomes essential to maintain optimal efficiency.

To mitigate these challenges, several preventative measures can be implemented:

• Install panels with self-cleaning hydrophobic coatings that help shed water and resist dust buildup
• Implement automated cleaning systems or establish regular manual cleaning schedules, especially following dry, dusty periods
• Consider slight adjustments to the standard 21-degree tilt to facilitate natural cleaning during rainfalls
• Use high-efficiency panels rated for tropical conditions that perform better in high temperature and humidity environments
• Install robust lightning protection systems, as the region experiences frequent thunderstorms

With these considerations addressed, Itatinga presents a favorable location for solar PV deployment, offering substantial energy generation potential throughout the year despite seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

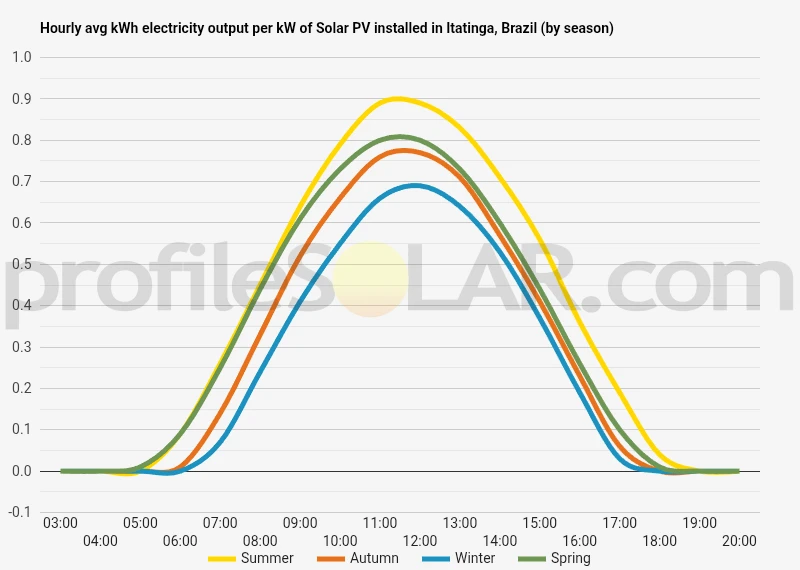

Solar output per kW of installed solar PV by season in Itatinga

Seasonal solar PV output for Latitude: -23.1222, Longitude: -48.6213 (Itatinga, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Itatinga, Brazil

To maximize your solar PV system's energy output in Itatinga, Brazil (Lat/Long -23.1222, -48.6213) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itatinga, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itatinga, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itatinga, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itatinga, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itatinga, Brazil

The topography around Itatinga, Brazil reveals a diverse landscape characterized by rolling hills, plateaus, and valleys typical of the inland São Paulo state region. Situated in the western portion of the state, Itatinga lies within the Paranapanema River basin, with an elevation ranging generally between 600 and 850 meters above sea level. The terrain features gentle to moderate slopes across much of the area, with more pronounced relief in certain sectors.

Landscape Features

The region exhibits a patchwork of agricultural lands, native vegetation remnants, and forested areas. The Atlantic Forest biome originally covered this region, though much has been converted to agricultural use over centuries of development. Numerous small streams and tributaries cut through the landscape, eventually feeding into larger river systems. The topography becomes more undulating toward the eastern portions where the land begins to rise toward the Serra de Botucatu, a significant escarpment in the region. The western portions of the Itatinga area present more gradual terrain transitions, with broader plateaus and gentler slopes. These open expanses have historically been utilized for agricultural purposes, particularly cattle ranching and various crop productions including eucalyptus plantations for the paper industry.

Solar Potential Areas

For large-scale solar photovoltaic development, several areas near Itatinga present favorable conditions based on topographical considerations. The most suitable zones include: The northwestern plateaus offer extensive flat to gently sloping terrain with minimal shading concerns. These areas, often currently used for agricultural purposes, provide the large continuous tracts of land necessary for utility-scale solar installations. The relatively uniform elevation minimizes construction challenges and reduces development costs. The southwestern quadrant also presents promising conditions with its moderate slopes predominantly facing north—optimal for solar exposure in the Southern Hemisphere. These areas benefit from good drainage conditions while maintaining accessible terrain for infrastructure development. Areas to avoid include the more densely vegetated eastern approaches to the Serra de Botucatu, where increased slopes, fragmented land parcels, and remaining forest patches create both environmental and practical obstacles to large-scale solar development. The central valley areas near water courses should likewise be considered less optimal due to potential flooding concerns, higher humidity levels, and morning fog occurrences that could impact solar efficiency.

Topographical Considerations for Development

When evaluating specific sites within these broader regions, developers would need to consider localized slope orientations, with north-facing gradients between 5-15 degrees offering a good balance between optimal solar angle and construction feasibility. The soil composition in the region—predominantly red and yellow latosols—generally provides adequate load-bearing capacity for solar array foundations. Drainage patterns require careful assessment, as the region experiences significant seasonal rainfall despite its generally favorable solar conditions. The interconnected network of small streams and seasonal watercourses necessitates thoughtful site planning to avoid erosion issues and maintain environmental compliance. The existing road network provides reasonable access to many potential development areas, particularly those in the western and northwestern sectors, reducing infrastructure development costs and facilitating construction and maintenance operations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
