Itatira, Ceará, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -4.564, -39.5796, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate climates.

Solar Energy Production Performance

The solar energy output at Itatira demonstrates remarkably consistent performance across all seasons. Summer produces 5.72 kWh per day per kW of installed solar capacity, while autumn shows a slight improvement to 5.81 kWh/day. Winter maintains strong performance at 6.00 kWh/day, and spring delivers the highest output at 6.92 kWh/day per kW of installed capacity. Spring emerges as the optimal season for solar generation at this location, producing approximately 21% more energy than the lowest-performing summer period. This seasonal variation is relatively modest compared to many other global locations, making Itatira highly suitable for consistent solar energy production throughout the year.

Optimal Panel Installation

For fixed panel installations at Itatira, Ceará, the ideal tilt angle to maximize total year-round solar production is 5 degrees North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this tropical location:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create temporary shading
• High humidity levels - May cause moisture-related equipment issues and reduce panel efficiency
• Dust and debris accumulation - Particularly during dry seasons when rainfall is insufficient for natural cleaning
• Tropical storms and high winds - Can damage installations and disrupt energy production

Preventative Measures for Optimal Performance

To maximize solar energy production at Itatira, Ceará, several installation strategies should be considered:

• Robust mounting systems - Use hurricane-rated mounting hardware designed for high wind loads
• Proper drainage design - Ensure installation allows for quick water runoff during heavy rains
• Regular maintenance scheduling - Implement cleaning protocols to remove dust and debris, especially during dry periods
• Moisture-resistant components - Select inverters and electrical components rated for high-humidity tropical environments
• Adequate ventilation - Design installations with proper airflow to prevent overheating in high-temperature conditions

Despite these considerations, Itatira's tropical location offers significant advantages for solar energy generation, with consistent output levels that make it highly suitable for both residential and commercial solar installations year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

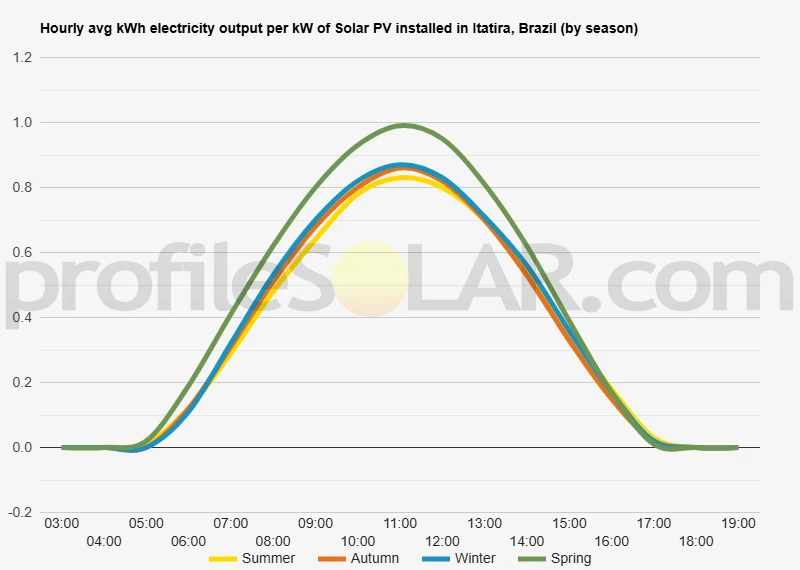

Solar output per kW of installed solar PV by season in Itatira

Seasonal solar PV output for Latitude: -4.564, Longitude: -39.5796 (Itatira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Itatira, Brazil

To maximize your solar PV system's energy output in Itatira, Brazil (Lat/Long -4.564, -39.5796) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itatira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itatira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	11° North in Autumn	20° North in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itatira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itatira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itatira, Brazil

Topographical Features Around Itatira

The region surrounding Itatira in Ceará state sits within Brazil's northeastern semi-arid landscape, characterized by gently rolling hills and broad valleys typical of the Caatinga biome. The terrain features moderate elevation changes with scattered low hills rising from relatively flat plains. This area forms part of the Brazilian Highlands' northern extension, where ancient crystalline rock formations create a landscape of weathered surfaces and gradual slopes.

The topography consists primarily of undulating terrain with elevations ranging from approximately 200 to 600 meters above sea level. Rocky outcrops and inselbergs - isolated hills that rise abruptly from surrounding plains - punctuate the landscape, creating distinctive landmarks throughout the region. These geological features result from millions of years of erosion acting on resistant rock formations, leaving behind a terrain that alternates between gentle slopes and steeper rocky escarpments.

Water courses in the area follow natural depressions and valleys, though many remain dry for extended periods due to the semi-arid climate. The drainage patterns have carved shallow valleys and created alluvial deposits in lower-lying areas, contributing to variations in soil depth and composition across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the broader valley floors and gently sloping plateau areas that extend north and east of Itatira. These zones offer the combination of relatively flat terrain, good accessibility, and sufficient space for large arrays while minimizing the need for extensive ground preparation or grading.

The southwestern approaches to the municipality present particularly favorable conditions, where the landscape opens into wider plains with minimal rocky outcrops. These areas provide the stable, level ground essential for efficient solar panel installation and maintenance access. The terrain gradients in these zones typically remain below five percent, making them ideal for standard mounting systems without requiring specialized equipment for steep slopes.

Areas with deeper soil development, typically found in the valley bottoms and lower hillsides, offer advantages for construction activities and infrastructure development. However, developers should avoid the immediate vicinity of seasonal watercourses and areas prone to occasional flooding during intense rainfall events.

The elevated plateau regions, while offering excellent exposure conditions, may present challenges due to rockier substrates and potential access difficulties. Nevertheless, some of these higher elevations could prove suitable for solar development, particularly where natural clearings exist and where the terrain remains relatively level across substantial areas. The key consideration involves balancing optimal site conditions with practical construction and operational requirements.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
