Solar Energy Potential in Ituiutaba, Brazil

Ituiutaba, Brazil, located in the Minas Gerais state, offers a promising location for solar energy generation throughout the year. Situated in the tropics at coordinates -19.0137, -49.5496, this location benefits from relatively consistent sunlight patterns typical of tropical regions, where seasonal variations are more defined by wet and dry periods rather than dramatic changes in daylight hours. The solar energy production potential at Ituiutaba varies somewhat across the meteorological seasons. During summer months, the location shows its highest productivity with an average of 6.92kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 6.35kWh/day, while autumn yields 5.86kWh/day. Winter, though still productive, represents the lowest output period with 5.38kWh/day per kW installed. This seasonal variation indicates that Ituiutaba maintains good solar generation potential year-round, with only a modest 22% difference between the highest and lowest producing seasons. This relatively small fluctuation makes the location quite favorable for consistent solar energy production throughout the year.

Optimal Panel Installation

For fixed solar panel installations in Ituiutaba, the ideal tilt angle to maximize year-round energy production is 18 degrees facing North. This specific angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted according to the daily photovoltaic potential. This optimized angle accounts for the Earth's elliptical orbit and ensures the panels capture maximum sunlight across all seasons.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Ituiutaba:

• Seasonal rainfall: The region experiences a distinct wet season (typically October through March), which may reduce solar output due to cloud cover and precipitation.
• Dust accumulation: During the dry season, dust and particulate matter can build up on panels, reducing efficiency.
• High temperatures: Being in a tropical region, extremely high temperatures can slightly reduce photovoltaic efficiency.

To mitigate these challenges, several preventative measures should be considered during solar installation: Installing an automated cleaning system or implementing a regular manual cleaning schedule will address dust accumulation. Elevating panels with sufficient spacing underneath allows for better airflow, which helps mitigate efficiency losses from high temperatures. Additionally, using high-quality panels with good heat tolerance ratings will ensure better performance during the hottest months. Despite these considerations, Ituiutaba remains an excellent location for solar energy production with its consistent solar radiation throughout the year and relatively minor seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

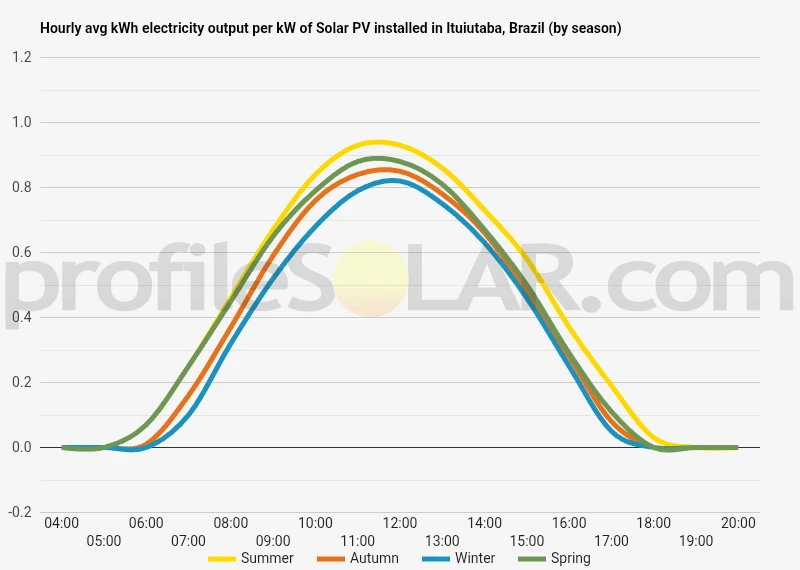

Solar output per kW of installed solar PV by season in Ituiutaba

Seasonal solar PV output for Latitude: -19.0137, Longitude: -49.5496 (Ituiutaba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Ituiutaba, Brazil

To maximize your solar PV system's energy output in Ituiutaba, Brazil (Lat/Long -19.0137, -49.5496) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ituiutaba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ituiutaba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ituiutaba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ituiutaba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ituiutaba, Brazil

The landscape surrounding Ituiutaba, Brazil, is characterized by rolling hills and gentle undulations typical of the Triângulo Mineiro region in western Minas Gerais state. Situated in the Brazilian Cerrado biome, the area features a mix of savanna vegetation and transitional forests. The terrain gradually slopes from higher elevations in the east toward the Paranaíba River basin in the west, with numerous smaller waterways and streams creating natural valleys throughout the region. Ituiutaba sits at approximately 600 meters above sea level, with the surrounding topography varying between 500 and 700 meters in elevation. The land consists primarily of lateritic soils—reddish in color and rich in iron and aluminum oxides—which have developed under the tropical climate conditions. These soils, while sometimes challenging for agriculture without proper management, provide stable ground for infrastructure development.

Optimal Areas for Solar PV Development

Several factors make certain areas around Ituiutaba particularly suitable for large-scale solar photovoltaic installations. The gently sloping terrain to the west and southwest of the city offers ideal conditions for solar development. These areas combine favorable topographical features with practical advantages: The western plains extending toward the Paranaíba River feature expansive, open areas with minimal shading obstacles and natural elevation changes that facilitate drainage while requiring minimal earthwork for installation. These relatively flat plateaus receive consistent solar exposure throughout the day. The northern sector of the municipality, characterized by slightly elevated terrain with southern-facing slopes, presents another promising region for solar development. These areas benefit from excellent drainage characteristics and reduced vegetation density, minimizing clearing requirements and environmental impact. Areas to potentially avoid include the more densely vegetated eastern highlands, where remaining patches of native Cerrado vegetation hold greater ecological value, and the immediate riparian zones along the various waterways that traverse the region, which serve important ecological functions. The soil composition in the recommended areas—primarily weathered laterites and clay-rich substrates—provides good stability for mounting structures while requiring relatively standard foundation designs. The moderate relief in these preferred zones also minimizes erosion concerns, an important consideration for the long-term sustainability of large installations. Agricultural activities have already cleared significant portions of the landscape, particularly in the western and northwestern sections, making these areas practical choices that would minimize additional environmental disruption while utilizing land with good solar exposure characteristics.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
