Itupeva, São Paulo, Brazil, located at latitude -22.0359 and longitude -47.2082, offers a favorable location for solar PV energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations primarily defined by wet and dry periods rather than extreme temperature or daylight fluctuations.

Seasonal Solar Production

Solar energy production in Itupeva follows a predictable seasonal pattern. Summer months yield the highest energy output at 6.78 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season with 6.22 kWh/day. Autumn provides moderate generation at 5.55 kWh/day, while winter represents the lowest production period with 4.80 kWh/day per installed kilowatt.

Despite winter showing reduced output, the location maintains respectable production year-round. The difference between the highest producing season (summer) and lowest (winter) is less dramatic than in locations farther from the equator, demonstrating the advantage of Itupeva's tropical position.

Optimal Panel Installation

For fixed solar panel installations in Itupeva, São Paulo, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle optimizes solar capture throughout the year by accounting for the location's position in the Southern Hemisphere and the sun's seasonal path across the sky.

Environmental and Weather Considerations

Several environmental factors may impact solar production in Itupeva:

• Seasonal rainfall: The region experiences a distinct wet season that can temporarily reduce solar output due to cloud cover and rainfall. Installing slightly larger systems can help compensate for reduced production during these periods.
• Dust and pollen: Agricultural activities in surrounding areas may generate airborne particles that settle on panels. Regular cleaning maintenance schedules are recommended, particularly during dry seasons when dust accumulation is highest.
• High humidity: The tropical climate brings elevated humidity levels that can accelerate degradation of certain components. Using marine-grade materials and ensuring proper sealing of electrical connections can mitigate these effects.

Preventative measures such as installing panels with self-cleaning properties, implementing automated cleaning systems, and scheduling routine maintenance during the dry season can significantly improve overall system performance. Additionally, ensuring adequate ventilation beneath the panels helps manage heat buildup that could otherwise reduce efficiency in this warm climate.

Overall, Itupeva presents a highly suitable location for solar energy production with consistent year-round generation potential, particularly when system design accounts for the region's specific environmental characteristics.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

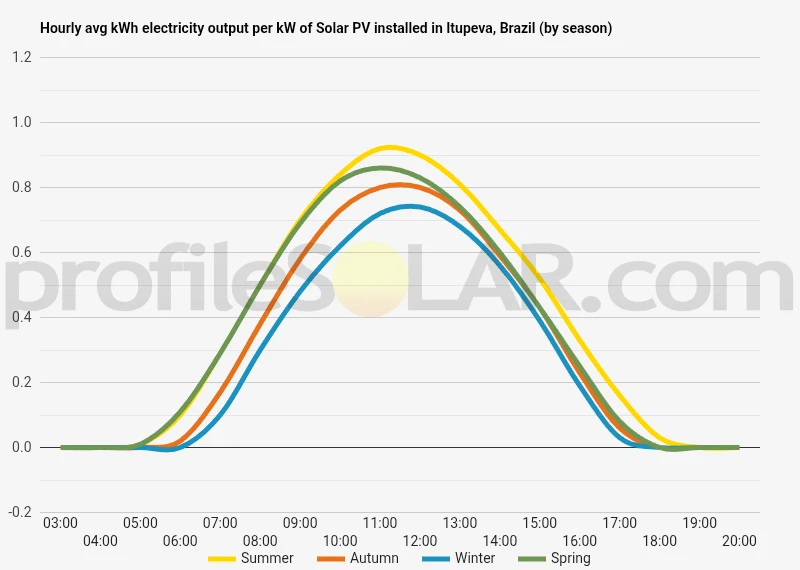

Solar output per kW of installed solar PV by season in Itupeva

Seasonal solar PV output for Latitude: -22.0359, Longitude: -47.2082 (Itupeva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Itupeva, Brazil

To maximize your solar PV system's energy output in Itupeva, Brazil (Lat/Long -22.0359, -47.2082) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Itupeva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Itupeva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Itupeva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Itupeva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Itupeva, Brazil

The landscape surrounding Itupeva, Brazil is characterized by gently rolling hills and valleys typical of the interior São Paulo state region. Located approximately 70 kilometers northwest of São Paulo city, Itupeva sits within the Atlantic Plateau, which gradually rises from the coastal areas toward the interior of the country. The terrain features moderate elevation changes with hills ranging between 700-900 meters above sea level. The topography around Itupeva consists of undulating terrain with scattered higher points interspersed with shallow valleys. Several small rivers and streams cut through the landscape, creating natural drainage systems. The Jundiaí River basin influences part of the region's topography, with tributary waterways shaping some of the local valleys.

Vegetation and Land Use

The natural vegetation of the region historically consisted of Atlantic Forest (Mata Atlântica) and cerrado (tropical savanna) transitions. However, much of the original vegetation has been modified through agricultural development, urban expansion, and industrial growth. Current land cover includes a mixture of agricultural fields, pastures, remnant forest patches, and expanding urban and industrial zones.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development near Itupeva, several topographical factors should be considered. The most suitable areas would be: The gently sloping hillsides with southern and southeastern exposures present promising opportunities for solar development. These areas typically feature gradual inclines between 2-8 degrees, providing natural drainage while maintaining excellent solar exposure throughout the day. The elevated plateaus northwest of Itupeva offer particularly favorable conditions for solar installations. These relatively flat expanses at higher elevations experience minimal shading from surrounding terrain features, maximizing potential energy capture. The stable soil conditions in these areas also reduce foundation and installation costs. Agricultural zones with lower productivity soils approximately 10-15 kilometers from the urban center represent another promising option. These areas typically feature cleared land with established access roads, reducing development costs while minimizing environmental impact on remaining natural areas.

Topographical Challenges

Despite favorable conditions in many areas, some topographical challenges exist. The steeper slopes found in certain sections, particularly in the eastern portions of the region, may require additional engineering considerations for large-scale installations. These areas might necessitate terracing or specialized mounting systems to accommodate the terrain. Low-lying areas near waterways experience occasional flooding during heavy rainfall periods, making them less suitable for solar development. Additionally, some valleys experience morning fog patterns during certain seasons, which could temporarily reduce generation efficiency. The region's soil composition varies considerably, with some areas featuring clay-heavy soils that may expand and contract seasonally, potentially affecting foundation stability for large installations. Proper geotechnical assessment would be essential in these zones. Overall, the moderately varied topography around Itupeva offers numerous viable options for large-scale solar PV development, with the northwestern plateaus and gently sloping agricultural areas representing the most promising locations when considering topographical factors alone.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
